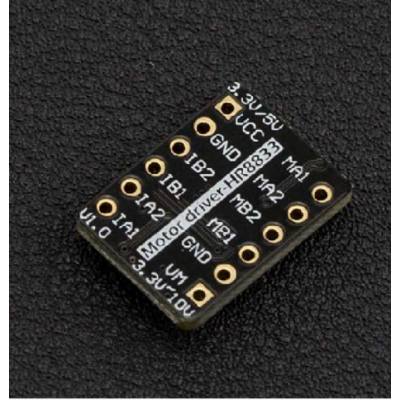

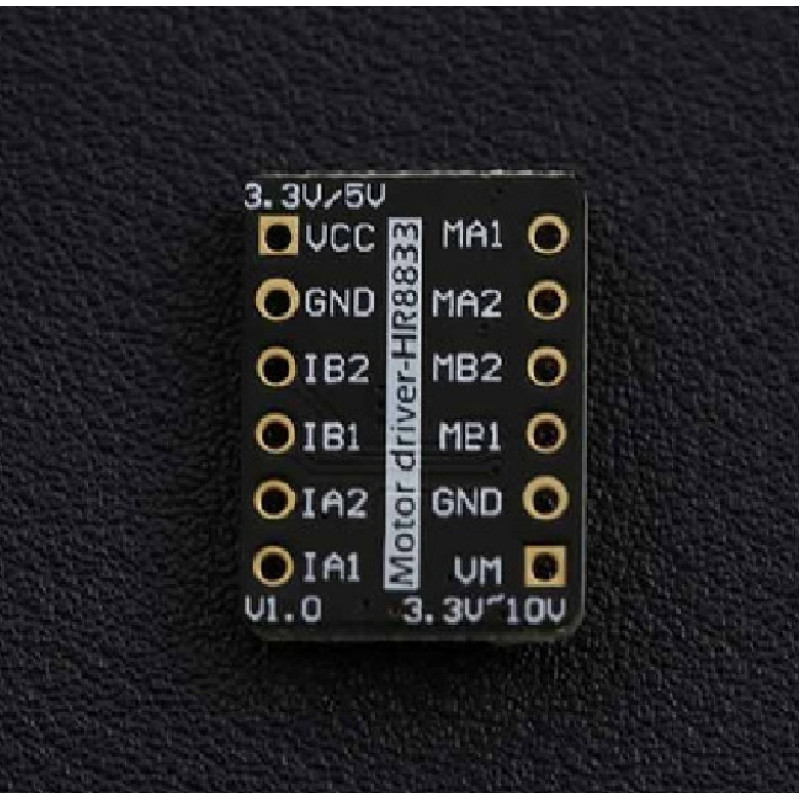

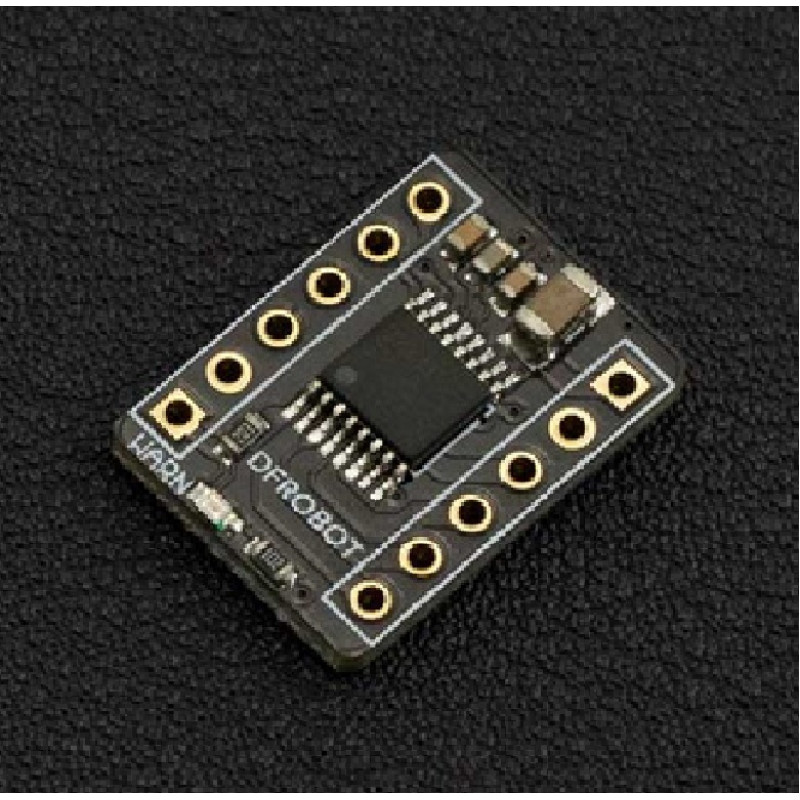

This is a ultra compact size Dual-H-Bridge dc motor driver (Based on HR8833), which could drive two way 1.5A DC brush motors up to 10V . It has the same footprint as your thumbnail suitable for projects with limited spaces.
Features:
- Logic Input Voltage (VCC): 3.3-5V
- Load Supply Voltage (VM): 3.3-10V
- Maximum Continuous Operating Current: 1500mA( Single)
- Support PWM speed control mode
- Maximum power dissipation: 25W (T = 75 degree Celsius)
- Working temperature:-20~85
- Module Size: 18* 13mm/0.7*0.5 inches

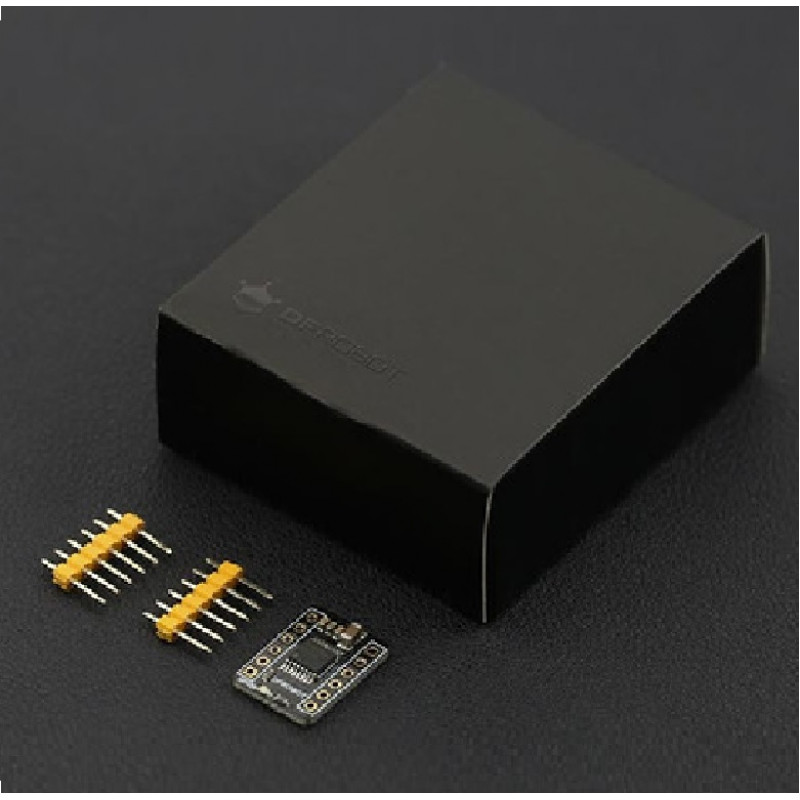

Package Includes:
1 x Dual 1.5A Motor Driver HR8833
2 x 6 Pin XH-2.54 standard pin
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Fermion: HR8833 Thumbnail Sized DC Motor Driver 21.5A (Breakout)
- Product Code: EC-26520
- Availability: 2
-
Rs.400.00
- (Excluding 18% GST)
