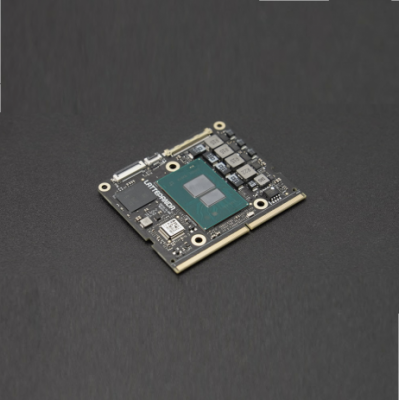

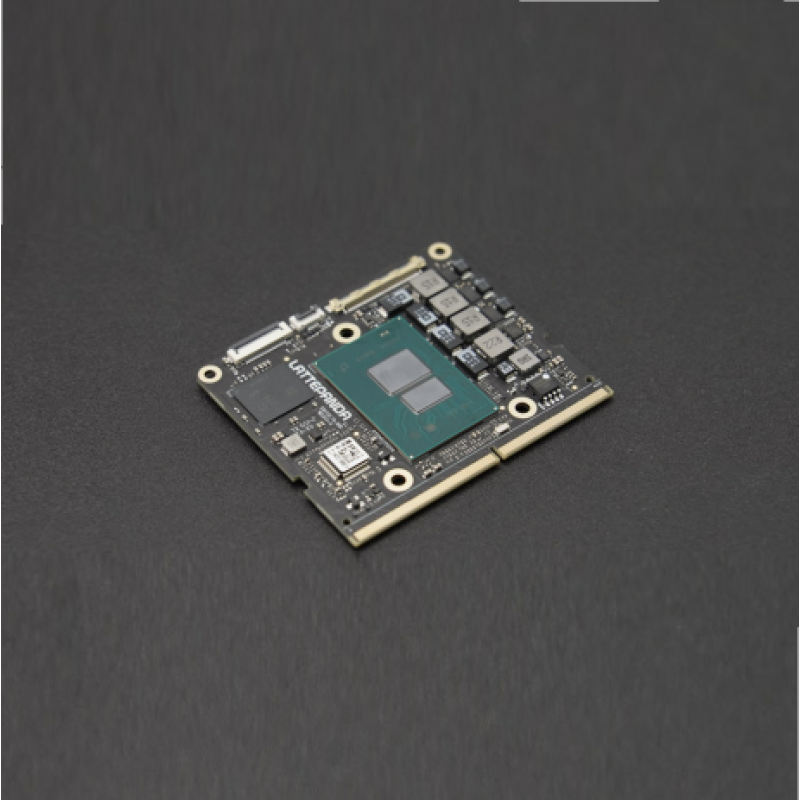

The LattePanda Mu is a compact yet powerful x86 compute module featuring an Intel N100 quad-core processor, 8GB LPDDR5 memory, and 64GB eMMC storage. This versatile module boasts extensive connectivity options and open-source carrier board files, allowing for custom board designs to suit diverse project requirements.
Features:
- Quad-core processor with a turbo frequency of 3.4GHz for robust performance.
- Achieves a Geekbench 6 multi-core score of 3115, surpassing Raspberry Pi 5 and other processors in its class.
- Measuring just 69.6mm x 60mm, ideal for space-constrained applications without compromising on computing power.
- Flexibility in Performance and Energy.
- TDP (Thermal Design Power) can be adjusted from 6W to 35W, allowing for flexible power usage and heat management.
- Offers silent passive cooling at 6W and robust performance with active cooling at 35W.
- Extensive Expansion Options.
- Includes 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 ports, and 64 expandable GPIOs for unparalleled flexibility and expandability.
- Open-Source Carrier Boards.

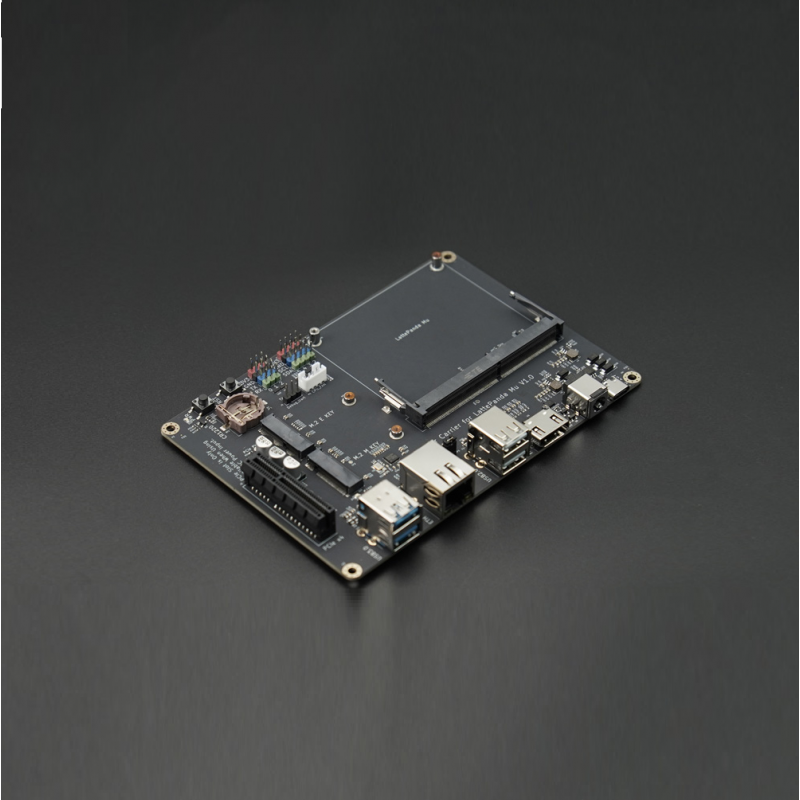

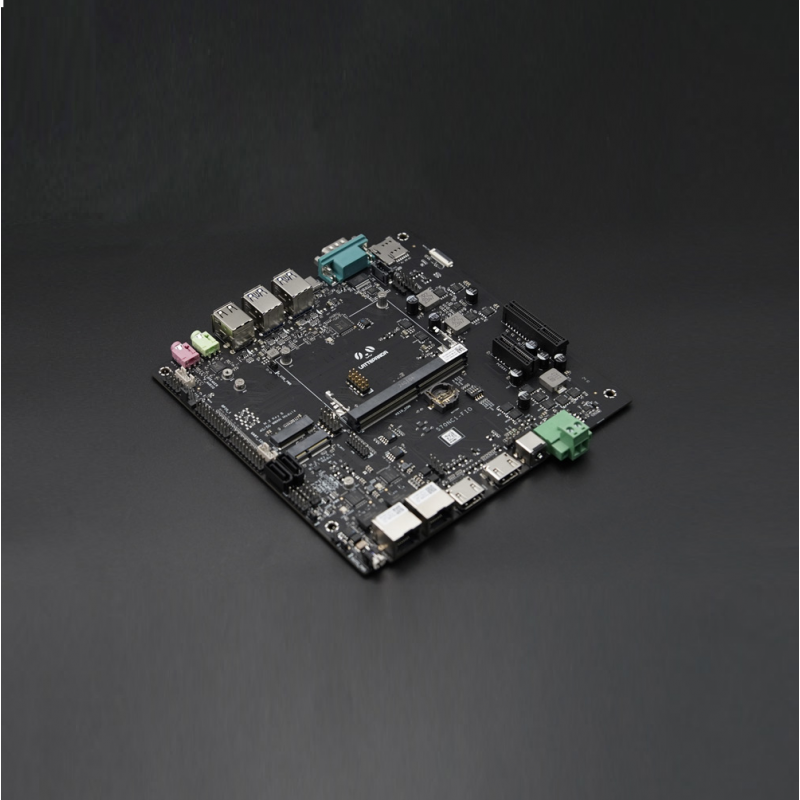

- DFRobot provides lite and full-function carrier boards for rapid development and testing.
- Open-source design files (KiCAD) enable customization of carrier boards to meet specific project requirements.
- Multi-System Support.
- Supports Windows 10, Windows 11, and Ubuntu, ensuring compatibility with various software environments.
Package Includes:
1 x DFRobot LattePanda Mu A Micro x86 Compute Module (N100 CPU,8GB RAM,64GB eMMC)
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot LattePanda Mu A Micro x86 Compute Module (N100 CPU,8GB RAM,64GB eMMC)
- Product Code: EC-26214
- Availability: 3
-
Rs.16350.00
- (Excluding 18% GST)
