If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The Lithium Battery Charger can charge 3.7V LiPo battery at a rate of 500 mA per hour. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

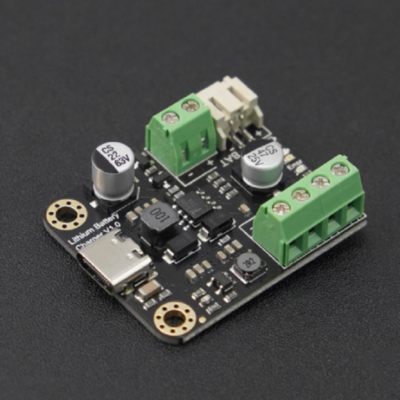

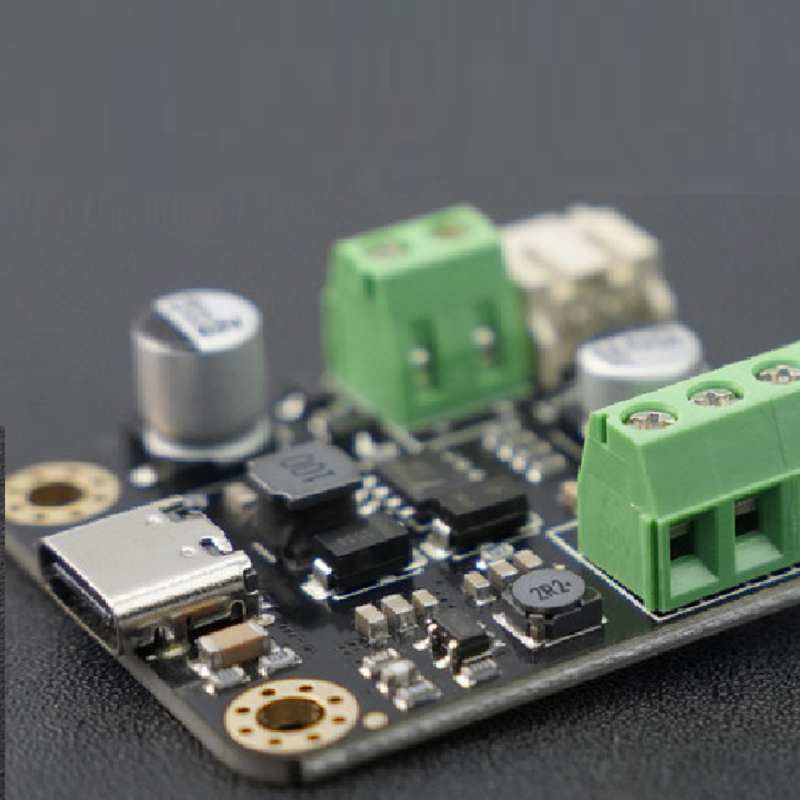

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a Type-C USB connector. Two small mounting holes allows this charger to be easily embedded into a project.
Features:
- Lithium battery compatibility
- Wide input voltage range
- Compact design
- Easy to use interface
- Reliable performance
- Charging current: 100mA, 500mA (default), 700mA, 1000mA optional
- DC/constant voltage
- Accuracy: 1.5% (pre-adjusted to 4.2V charging voltage) C/10 charge termination
- Operating environment temperature: -4085
Package Includes:
1 x DFRobot Lithium Battery Charger V1.0
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Lithium Battery Charger V1.0
- Product Code: EC-26600
- Availability: 1
-
Rs.940.00
- (Excluding 18% GST)
