The C4001 millimeter-wave presence sensor utilizes a wavelength signal of 24GHz. It has a detection range of 100 horizontally, with a presence detection range of 16 meters and a motion detection and distance measurement range of 25 meters. It is suitable for human presence detection, environmental monitoring, and real-time monitoring projects.
Applications:
- Human Detection
- Distance and Velocity Detection
- Environmental Monitoring
- Industrial Automation
- Real-time Monitoring and Tracking
Features:
- Human detection: Detection range up to 16 meters and motion detection range up to 25 meters.
- Distance detection: Range from 1.2 meters to 25 meters.
- Velocity detection: Range from 0.1 meters per second to 10 meters per second.
- Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc.
- High and low-level output control through I/O ports.
- Input and output control via serial port.
- Small size, easy to integrate.
Package Includes:

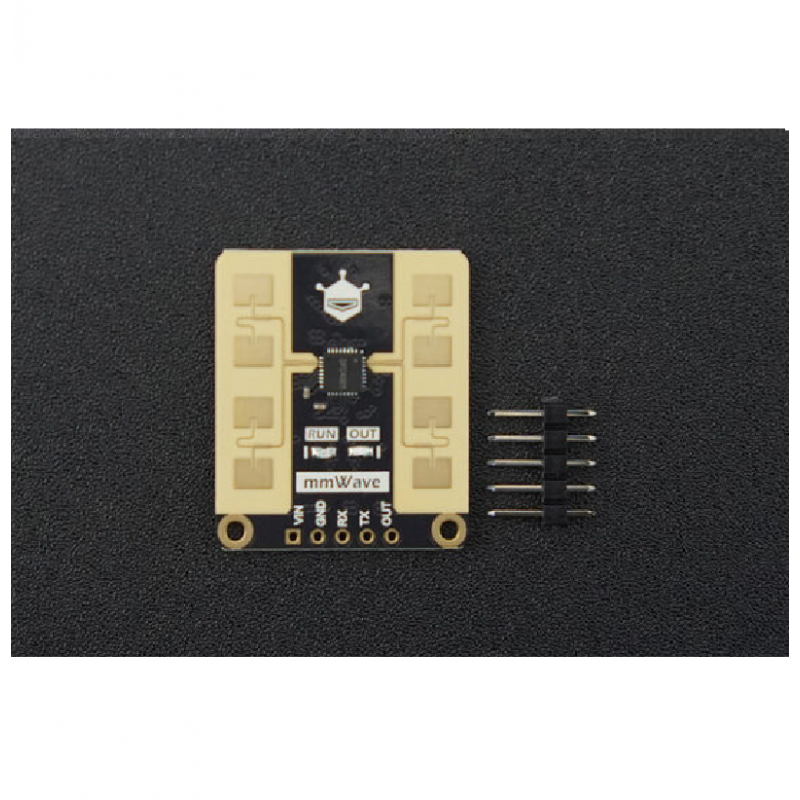

1 x C4001 mmWave Presence Sensor 25m
5-pin header
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot mmWave C4001 24GHz Human Presence Detection Sensor (25 Meters, UART)
- Product Code: EC-27723
- Availability: 2
-
Rs.1214.00
- (Excluding 18% GST)
