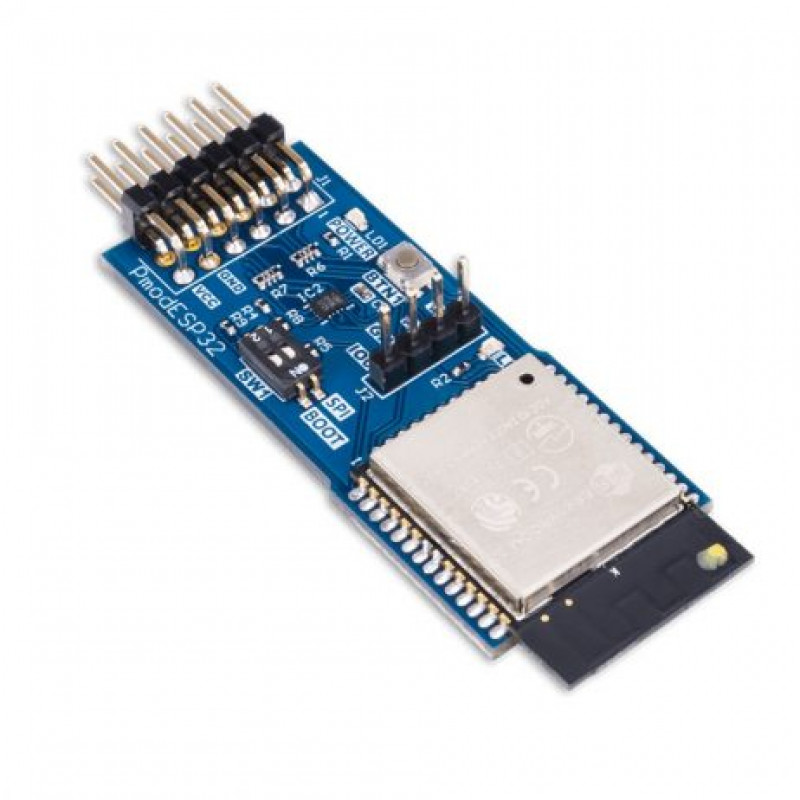

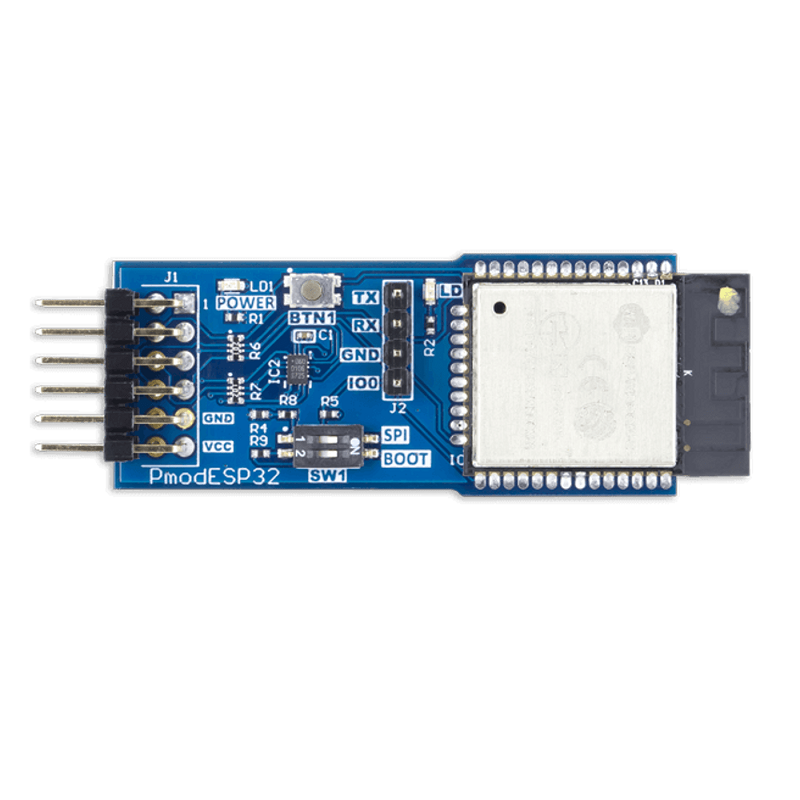

The Pmod ESP32 provides an easy and cost effective way to add wireless communication to any host platform or project. It uses a fully certified Espressif ESP32-based Wi-Fi + BLE + BT module. It is suitable for a wide variety of applications, from low-power sensor networks to more demanding tasks such as music streaming. The Pmod form factor is perfect for quickly turning your board into a powerful IoT platform using the pre-loaded AT command firmware, or for evaluating the ESP32 radio itself. The ESP32 can be used successfully as a peripheral or as a standalone device.
Features:
- Wi-Fi, Bluetooth LE, and Bluetooth communication available
- 20.5 dBm output power at the antenna
- User button for resetting the processor after a mode switch
- User switch for toggling between UART and SPI communication
- Low power sleep mode for battery powered applications
- 12-pin Pmod connector with SPI and UART interfaces
- Follows Digilent Pmod Interface Specification Types 2A and 3A
Package Includes:
1 x Digilent Pmod ESP32: Wireless Communication Module
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Digilent Pmod ESP32: Wireless Communication Module
- Product Code: EC-26275
- Availability: 1
-
Rs.3619.00
- (Excluding 18% GST)
