This ePaper Breakout Board is an extension board, built with a 24-pin FPC connector, designed for SeeedStudio XIAO series boards, to allow you to drive the ePaper display seamlessly. It also comes with an 8-pin 2.54 header, letting you connect to any microcontroller like Arduino UNO or Rasbperry Pi.
It is suitable for a wide range of ePaper displays, from small to large sizes. Supporting by different functional SeeedStudio XIAO boards and without any soldering, this extension board can be easily deployed in various scenarios.

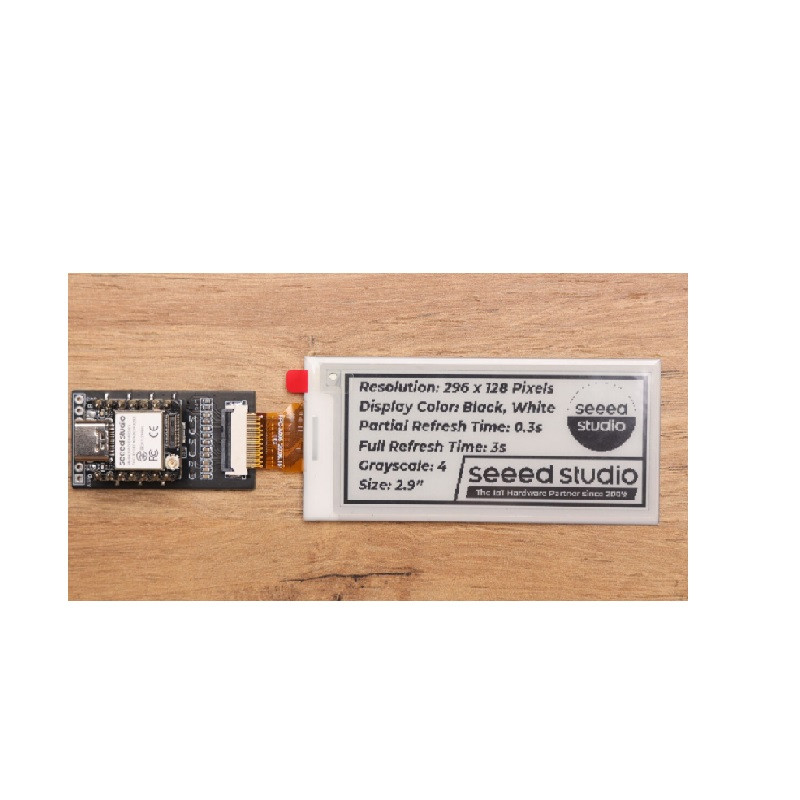

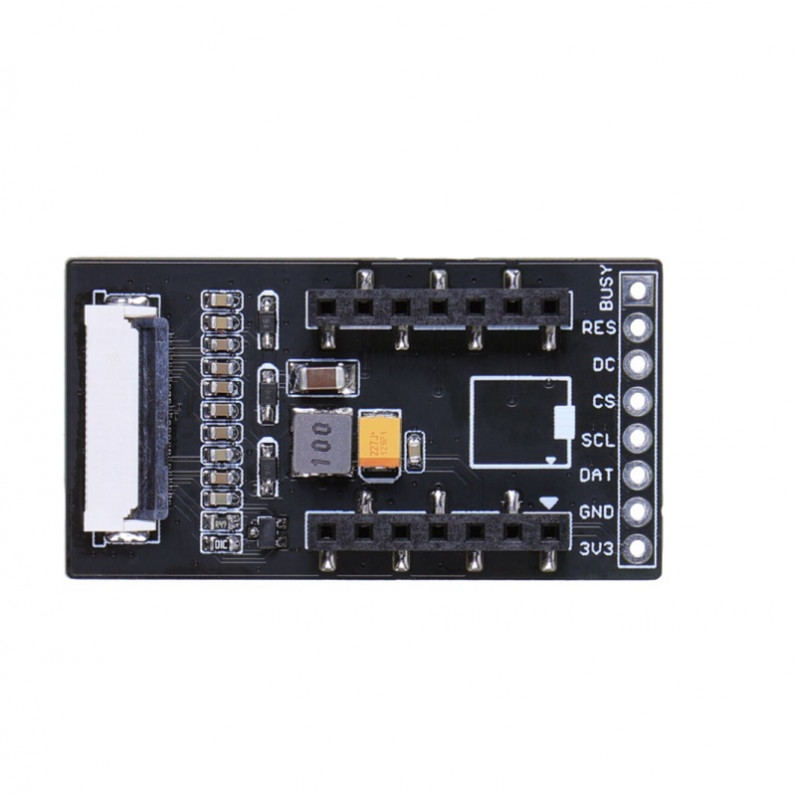

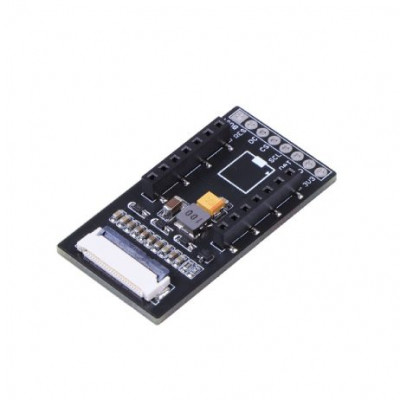

Hardware Overview
- 24-pin FPC Connector: For the 2.13-inch ePaper.
- XIAO Socket: For connecting the Seeed Studio XIAO development board.
- IO Break out: For connecting the other controllers, such as Arduino UNO or Raspberry Pi.
Features:
- ePaper display extension designed for Seeed Studio XIAO boards: Provide 24-pin FPC connector, to allow you to drive ePaper display seamlessly.
- Additional 8-pin 2.54 Header: Offers flexibility by letting you connect to any microcontroller like Arduino UNO or Rasbperry Pi.
- Plug and Play: All pins are led out, no soldering is needed.
Pin definition
- ePaper: XIAO
- RST: D0
- CS: D1
- DC: D3
- BUSY: D5
- SCK: D8
- MOSI: D10
Package Includes:
1 x ePaper Breakout Board
