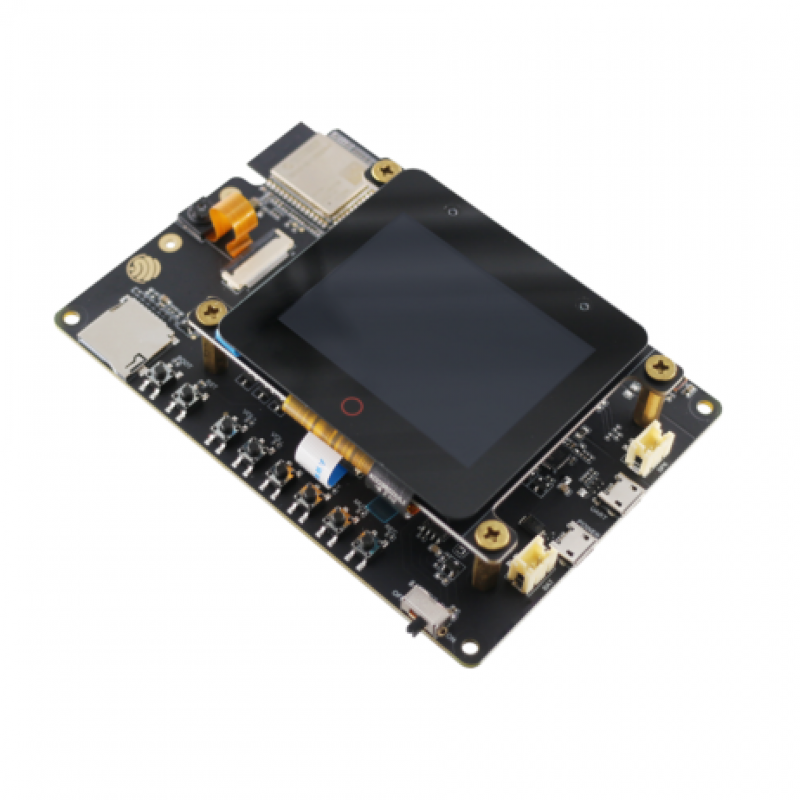

The Espressif ESP32-S3-Korvo-2 Development Board is an advanced and versatile hardware platform designed for developing and prototyping IoT (Internet of Things) and embedded systems applications. This board is a member of the ESP32 family, known for its robustness and rich feature set, and it specifically features the ESP32-S3, which is an upgraded version of the ESP32 with enhanced performance and capabilities. Heres a detailed description of the ESP32-S3-Korvo-2 Development Board

Features:

1. ESP32-S3 Microcontroller: Powered by the ESP32-S3, a high-performance dual-core microcontroller.
2. Wireless Connectivity: Integrated Wi-Fi and Bluetooth for seamless wireless communication.
3. Rich Peripheral Support: Multiple GPIO pins, I2C, SPI, UART, and more for versatile hardware interfacing.
4. Audio Capabilities: Built-in support for audio input and output, perfect for voice and sound applications.
5. Low-Power Operation: Efficient power management circuitry for extended battery life in IoT devices.
6. Security Features: Hardware-based encryption, secure boot, and trusted execution environment for robust device security.
7. Some Useful Link

Specifications:

1. On Board Chip: The ESP32-S3-WROOM-1 is a powerful, generic Wi-Fi + Bluetooth LE MCU module that is built around the ESP32-S3 series of SoCs
2. Left Microphone: Onboard microphone connected to ADC.
3. Audio ADC Chip: ES7210 is a high-performance, low-power 4-channel audio analog-to-digital converter for microphone
4. Audio Codec Chip: The audio codec chip,ES8311, is a low-power mono audio codec
5. Audio PA Chip: NS4150 is an EMI, 3 W mono Class D audio power amplifier
6. USB-to-UART Bridge Chip: A single chip USB-UART bridge CP2102N provides up to 3 Mbps transfer rates
7. USB-to-UART Port: Functions as the communication interface between a PC and the ESP32-S3-WROOM-1 module.
8. USB Power Port: 5V/2A

Package Includes:

1 x Espressif ESP32-S3-Korvo-2 Development board
