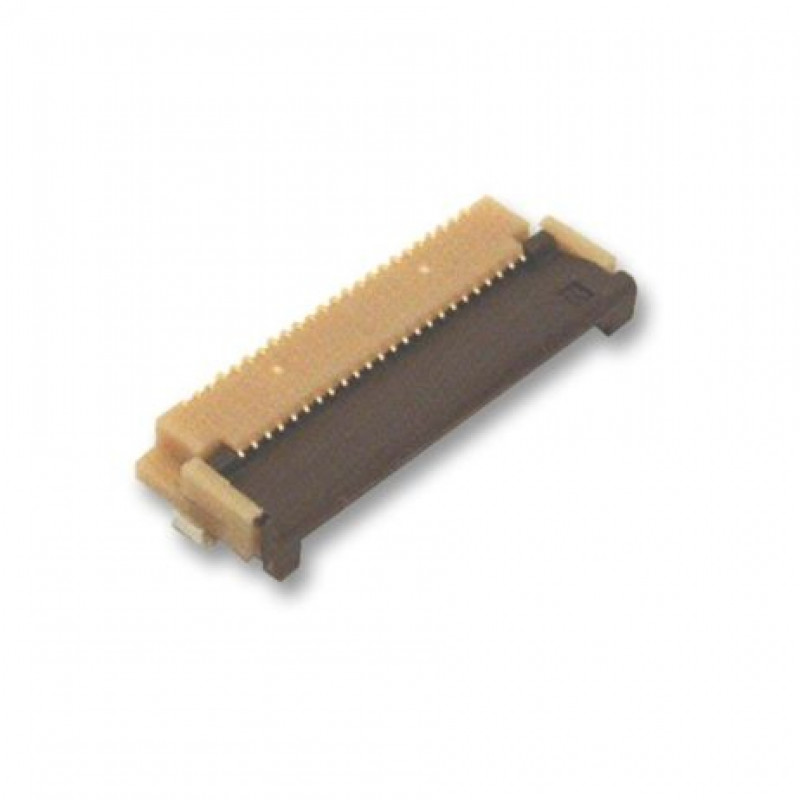

The FH12-24S-0.5SH(55) is a 24-position 1-row 0.5mm female FPC/FFC Receptacle with beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated metal fitting. The FH12 series socket/connector has horizontal FPC/FFC insertion direction, front actuator position, bottom contact orientation and SMT horizontal mounting type. The one-touch rotating ZIF mechanism is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12s one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts are offered with a reinforced actuator that provides an extra measure of security against actuator breakage.
Features:
- Rotating one-touch ZIF mechanism
- Clear tactile click
- Supports high-density mounting
- Reinforced actuator
- 0.5A Rated current
- 50VAC/DC Rated voltage
- 50mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 150VAC for one minute Withstanding voltage
- 20 Mating/unmating cycles
Specifications:
- Pitch Spacing: 0.5mm
- No. of Contacts: 24Contacts
- Gender: Receptacle (View Associated Connectors)
- Product Range: FH12
- Contact Termination Type: Surface Mount
- Contact Position: Bottom
- No. of Rows: 1 Row
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- FFC / FPC Thickness: 0.3mm
Package Includes:
1 x FH12-24S-0.5SH(55)-SOCKET FFC/FPC, ZIF, 0.5MM, 24
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Fh12-24S-0.5Sh(55)-Socket FFC/FPC, Zif, 0.5mm
- Product Code: EC-21657
- Availability: 2
-
Rs.215.00
- (Excluding 18% GST)
