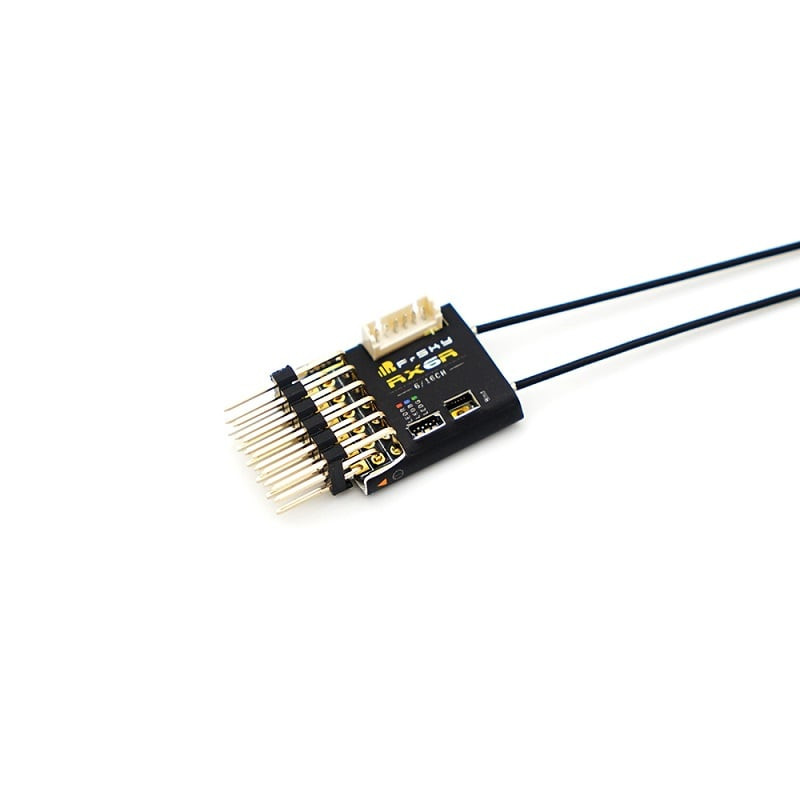

This FrSky 6/16 Channels RX6R Receiver is a standalone receiver with all the functions of X6R, it features 6PWM outputs with extremely high precision and low latency. The latencyof PWM output is 9ms less than that of the X6R in high speed mode. The RX6R featuresthe redundancy function as well, this means you can addanother receiver asa back-up in case the first one fails. Last but not least, the RX6R and the whole RX-line has a 40% increasein range compared tothe previous X series receivers.

Note: Refer to manuals in the ATTACHMENTS section for more info. regd. the product.

Features:

1. High sensitivity (40% Increase of the range compared to previous X series receivers)
2. Higher precision PWM
3. Lower latency PWM
4. Lower power consumption
5. Supports redundancy function
6. Smart Port enabled and supports telemetry data transmission
7. Battery voltage detection
8. 2 detachable IPEX 4 Connector antennas
9. PCB protection with the conformal coating craftwork

Specifications:

1. Dimension: 21.1177.3mm (LWH)
2. Weight: 2.5g / 2.9g (with two antennas)
3. Number of Channels: 16CH (1-6CH PWM from conventional channel outputs, 1-16CH from SBUS OUT port)
4. Operating Voltage Range: 3.5V-10V
5. Operating Current: 100mA@5V
6. Operating Range: >2km
7. Servo Frame Rate: 9ms (HSHigh Speed Mode)/18ms (FSNormal Speed Mode)

Package Includes:

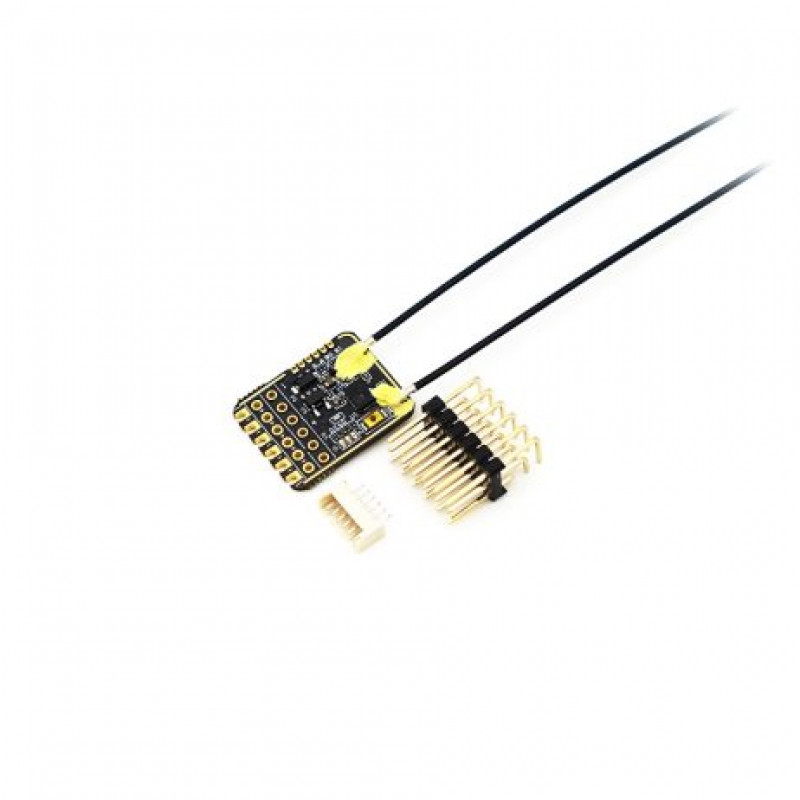

1 x FrSky 6/16 Channels RX6R Receiver

1 x Connecting cable set
