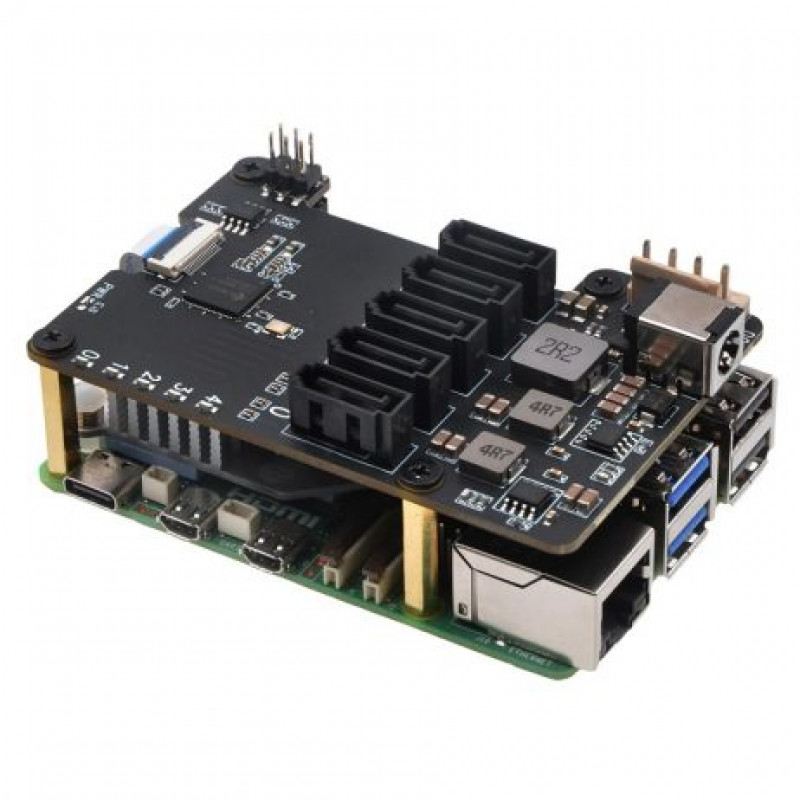

The X1009 PCIe to 5-port SATA expansion board is designed to offer a high-capacity and high-speed storage solution for your Raspberry Pi 5. This board supports the simultaneous connection of 5pcs large-capacity SATA storage devices, with the SATA 3.0 interface reaching speeds of up to 5Gbps.

The X1009 features a 12V input via a standard DC jack and is equipped with high-efficiency DC/DC step-down converters to power both your Raspberry Pi 5 and PCIe devices concurrently, simplifying the power supply to a single source.

Ideal for creating a home media center or setting up a network-attached storage (NAS) system, the X1009 allows you to store and stream your videos, music, and digital photos within your home or even remotely around the world.

Features:

1. Compatible with Raspberry Pi 5
2. Supports the connection of five SATA 3.0 devices to your Raspberry Pi 5 simultaneously
3. PCB Size: 85mm x 57.2mm
4. Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
5. Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
6. Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
7. Compatible with SATA 6G, 3G, and 1.5G hard drives
8. Features plug-and-play installation for ease of setup
9. Blue LED indicators display power and drive status
10. Equipped with a high-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously
11. Efficient power delivery to the Raspberry Pi 5 via a pin header, consolidating power sources
12. Compatible with the official active cooler without compromising cooling performance
13. Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down
14. Includes a power SATA splitter cable for connecting up to 5 Serial ATA devices

Package Includes:

1 x Geekworm X1009 PCIe to 5-Port SATA Shield for Raspberry Pi 5 (NOT Support Boot from HDD/SSD)
