The oscilloscope offers comprehensive functionality for precise waveform analysis, including horizontal sample rate control, flexible acquisition modes, and integrated digital multimeter capabilities.

Features:

1. Horizontal Sample Rate Control: Provides a horizontal sample rate range of 250MSa/s for single-channel and 125MSa/s for dual-channel operation, ensuring accurate capture of fast-changing signals.
2. Record Length: Supports a maximum record length of 6K samples for single-channel and 3K samples per channel for dual-channel operation, facilitating detailed waveform analysis.
3. SEC/DIV Range: Offers a wide SEC/DIV range from 5ns/div to 500s/div with 1, 2, 5 sequence, enabling precise timebase adjustments for different signal characteristics.
4. Vertical A/D Converter: Features an 8-bit resolution A/D converter for each channel sampled simultaneously, ensuring accurate vertical signal representation.
5. Triggering Options: Supports multiple triggering modes including Auto, Normal, and Single, with adjustable trigger level accuracy of 4 divisions from the center of the screen, enhancing trigger control flexibility.

Specifications:

1. Vertical Resolution: 8-bit
2. VOLTS/DIV Range: 10mV/div to 10V/div at input BNC
3. Bandwidth Limit (typical): 20MHz
4. Low Frequency Response (-3db): 10Hz at BNC
5. Rise Time (typical): 5ns at BNC
6. DC Gain Accuracy: 3% for Normal or Average acquisition mode, 10V/div to 10mV/div
7. Acquisition Modes: Normal
8. Trigger Type: Edge
9. Trigger Mode: Auto, Normal, Single
10. Trigger Level Accuracy: 0.2div X volts/div within 4 divisions from center of screen
    Slope: Rising, Falling, Rising & Falling
11. Trigger Source: CH1/CH2
12. Input Coupling: DC, AC, or GND
13. Input Impedance (DC coupled): 25pF3 pF, 1M2%
14. Probe Attenuation: 1X, 10X
15. Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
16. Maximum Input Voltage: 150VRMS
17. Automatic Measurements: Frequency, Amplitude

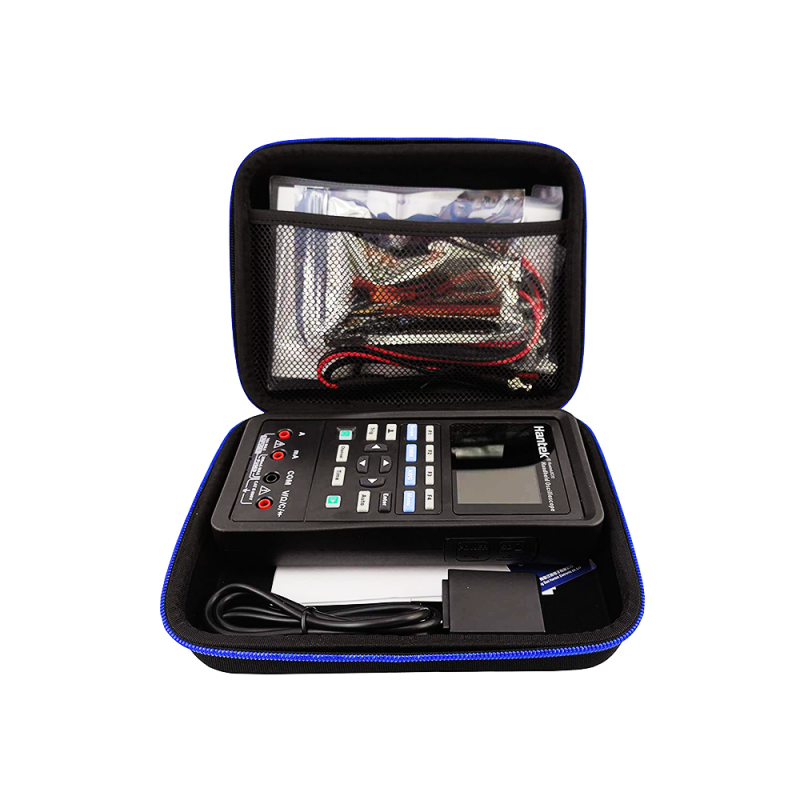

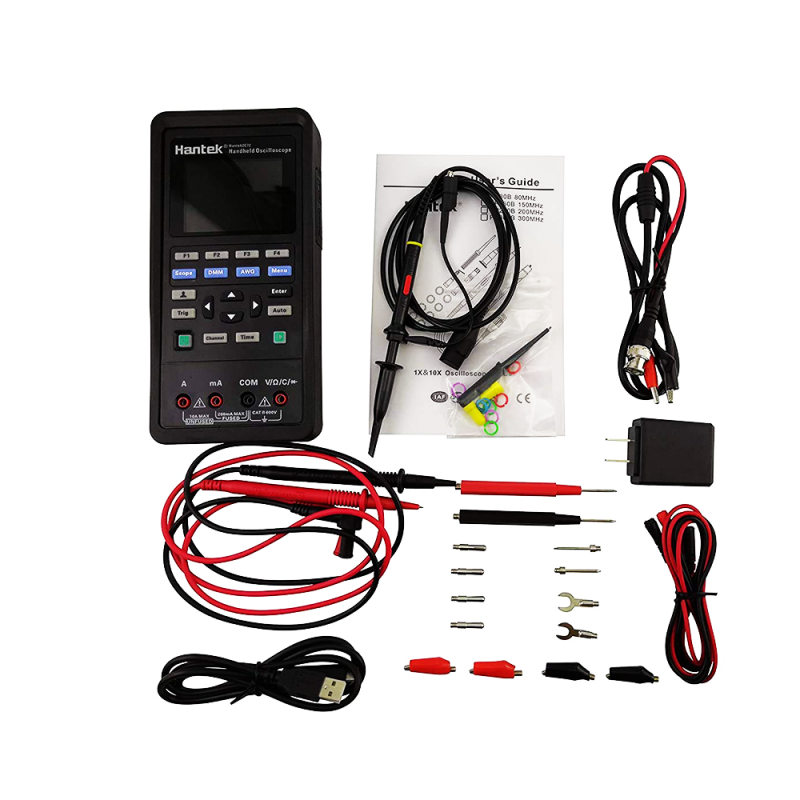

Package Includes:

1 x Probe
1 x Clip Probe
1 x Type Charging Cable
1 x Power Adapter
1 x Multimeter Probe
1 x Replaceable Test Wires
1 x Probe set
2 x 18650 batteries
