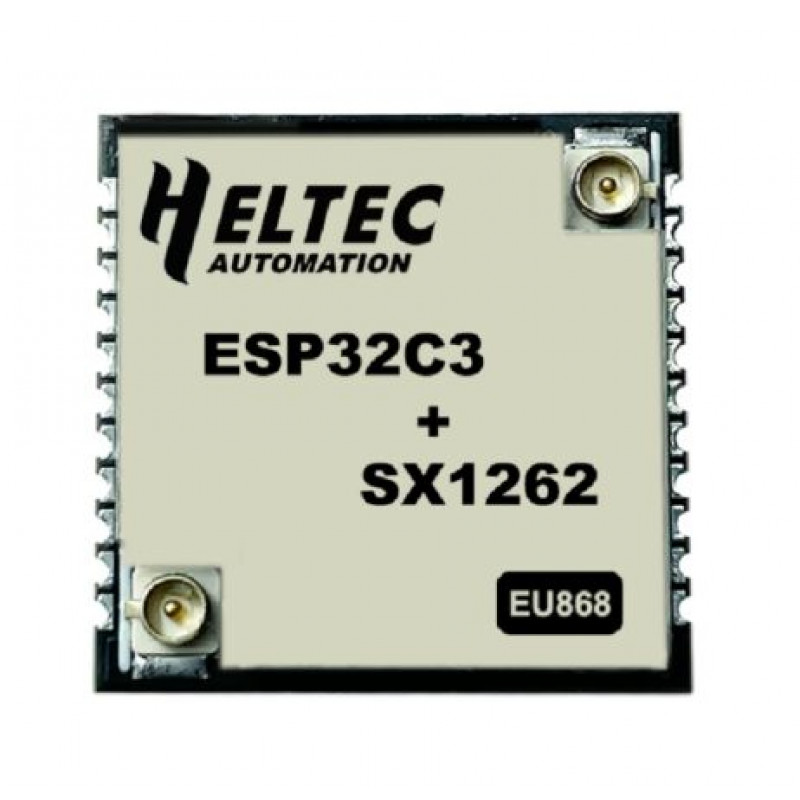

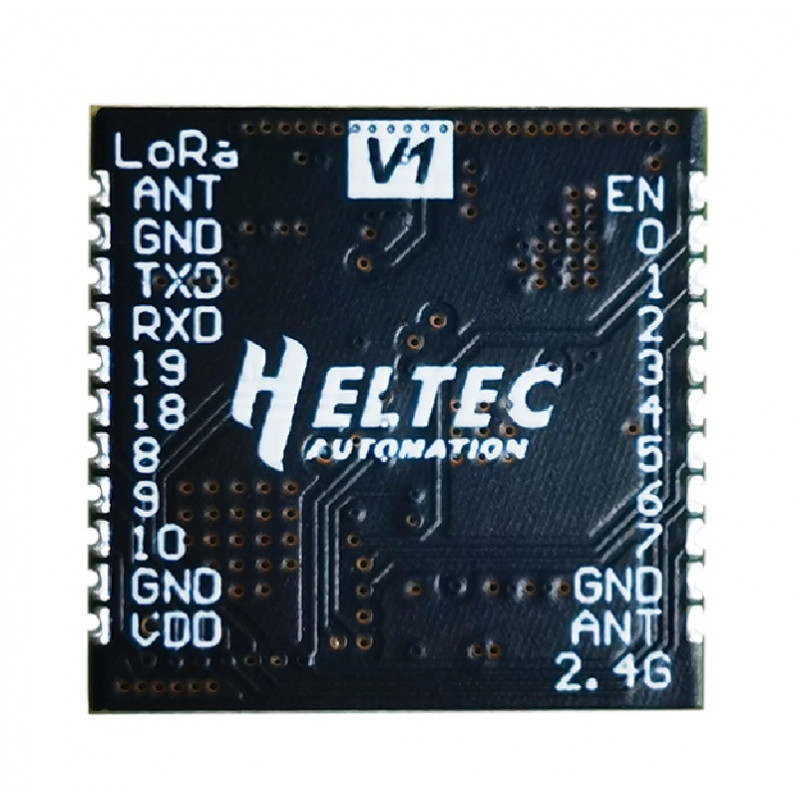

HT-CT62 is a LoRa/LoRaWAN node module with a long communication range, low power consumption, high sensitivity, and low cost. The module is composed of ESP32-C3FN4 (32-bit microprocessor based on RISC-V architecture) and Semtech LoRa Transceivers (SX1262). The module integrates 2.4 GHz Wi-Fi and LoRa two-mode wireless communication. HT-CT62 is a small volume, stamp hole package module, its the best choice for smart cities, smart farms, smart homes, and IoT makers.

Features:

1. Microprocessor: ESP32-C3FN4 (RISC-V architecture 32-bit, main frequency up to 160 MHz)
2. Integrated WiFi network connection, onboard Wi-Fi, IPEX socket.
3. Support the Arduino development environment;
4. LoRaWAN 1.0.2support;
5. Ultra low power design, 10uA in deep sleep;
6. 1.27 stamp edge design for SMT;
7. Good impendence matching and long communication

Package Includes:

1 x HELTEC Automation CT62Lora module low power Wifi BLE sx1262 node LORANWAN ESP32 C3 (433-510mhz)
