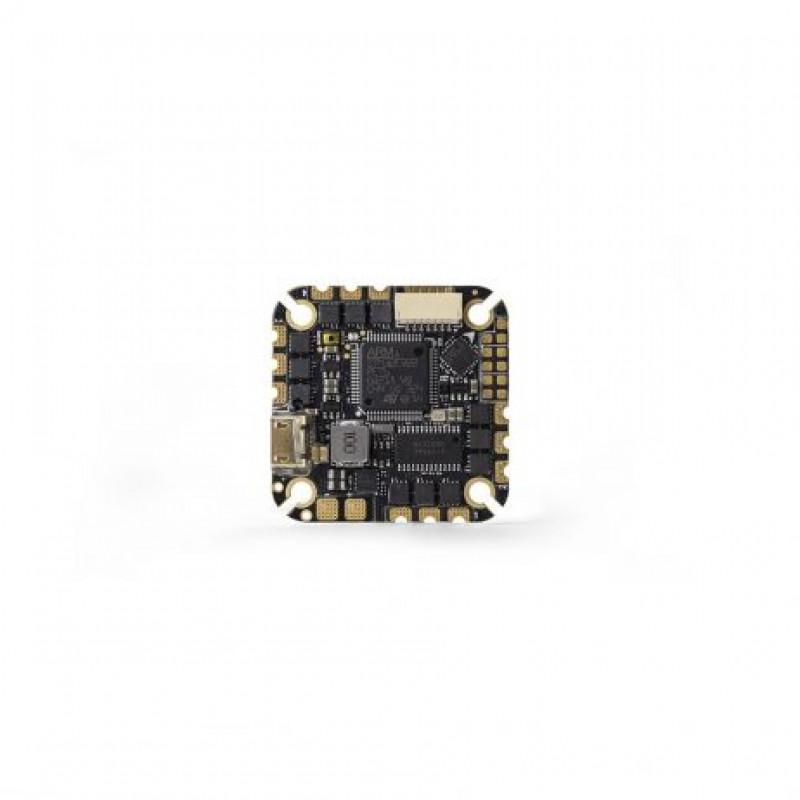

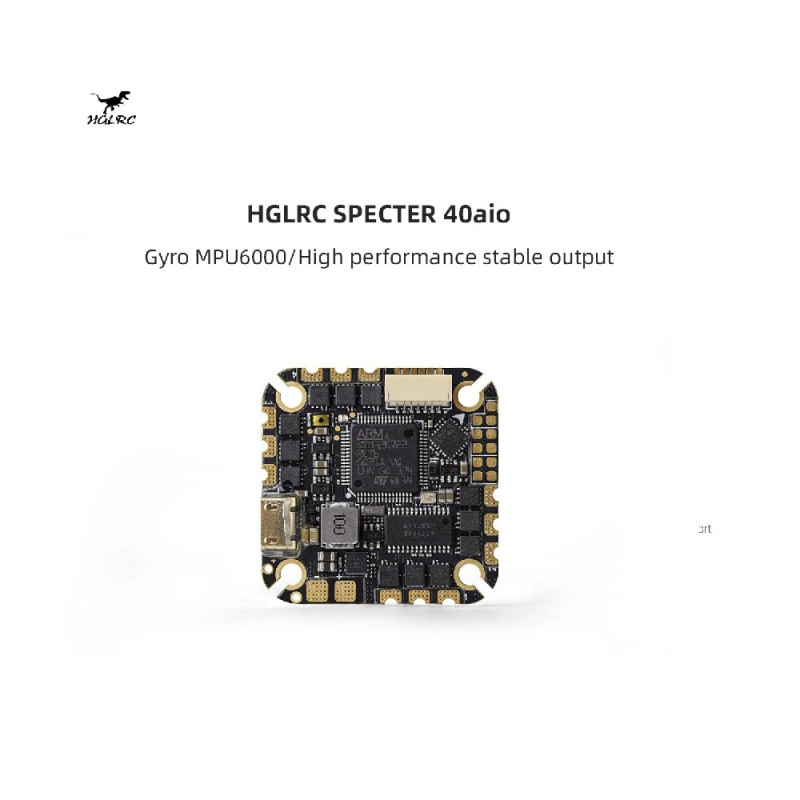

The flight controller is equipped with STM32 F722 main control and MPU6000 gyroscope, camera, receiver, HD/analog two-in-one direct plug-in interface

Features:

1. Equipped with MPU6000 gyroscope
2. Camera, receiver, HD/ analog two-in-one direct plug interface
3. Support GPS
4. Bl firmware is flashed by default, you can flash bluejay by yourself to improve flight efficiency
5. Suitable for mainstream 2-4 inch ring machines and toothpick frames
6. Supports input voltage up to 4-6s

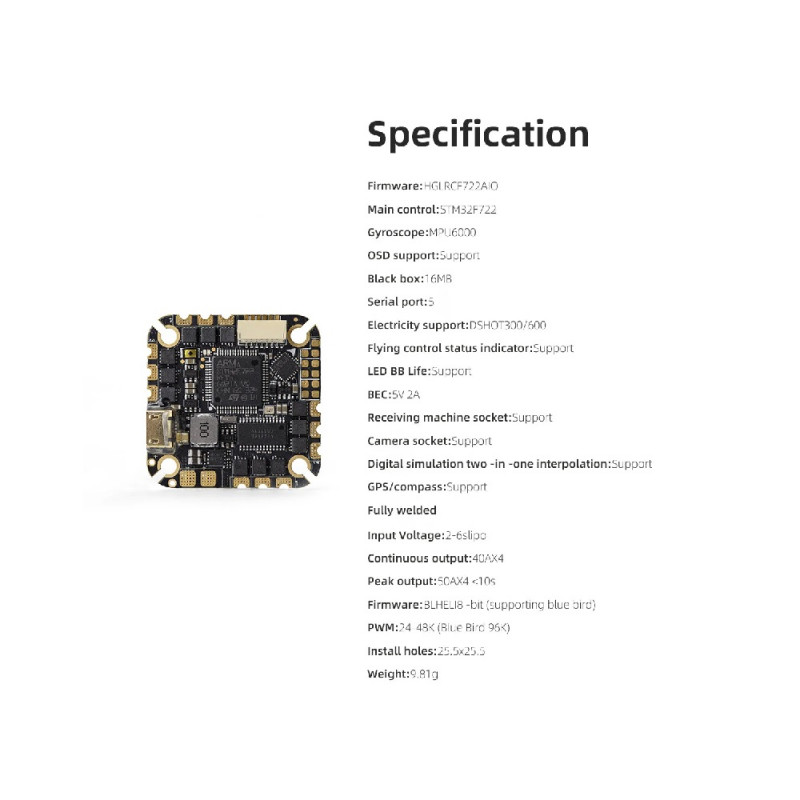

Specifications:

1. Product name: SPECTER 40A 4-6S AIO
2. MCU: STM32F722
3. MPU: MPU6000
4. BEC: 5V2A
5. OSD: Support
6. LED: Support
7. Bee Narrator: Support
8. Continuous current: 40A
9. Peak current: 50A (10S)
10. Electrochemical protocol: DSHOT600, Oneshot, Multishot
11. Flying control firmware: HGLRCF722AIO
12. Electrochemical firmware: BLS (brushing Bluejay 96K)
13. Electric: 8 -bit electrical
14. Input voltage: 4-6S 14.8V-22.2V (lipo)
15. Size: 34x34mm
16. Install holes: 25.525.5mm.m2
17. Weight: 9.8g

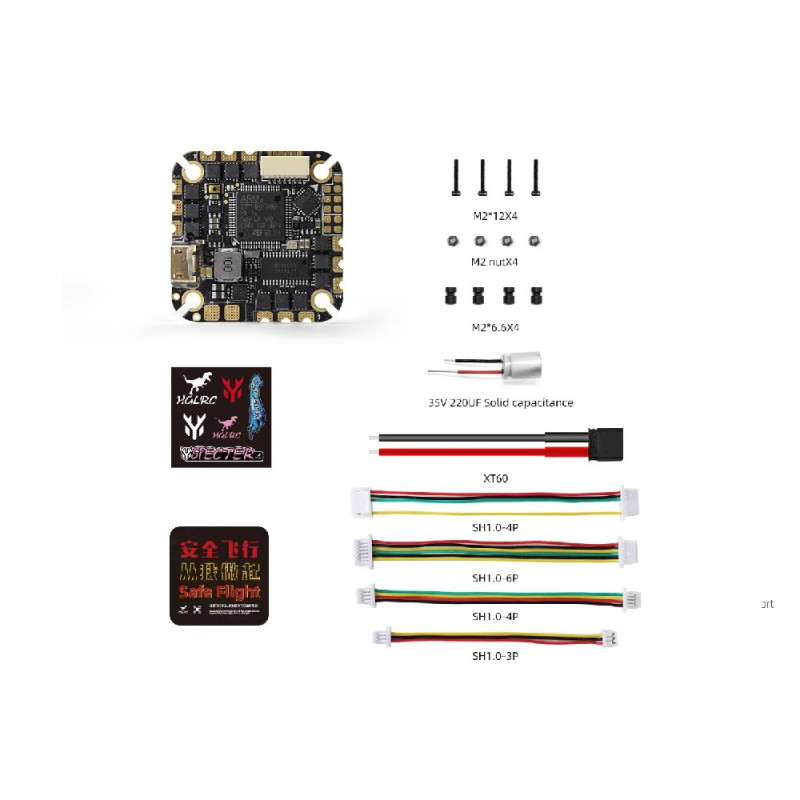

Package Includes:

1 x Specter 40A 4-6S AIO
1 x XT60 16AWG 100MM Gongtou Power Cable
1 x #30AWG, line length 60mm, single head SH1.0-3P/single head SH1.25-3P camera head line
1 x 30AWG, line length 70mm, double head SH1.0-4P receiving machine line
1 x 30AWG line length 70mm, single head SH1.0-7P/single head SH1.0-6p HD map passing line
1 x 30AWG line length 70mm, single head GH1.25-6P/single SH1.0-7P simulation map passing line
4 x m2*6.6 shock reduction column
4 x m2*12 black nickel screws
4 x self -lock M2 nut
