Features:

1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed.
2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use and reserves 42688 gyroscope pads.
3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.
4. Personalized CNC heat sink shell prevents debris from entering the interior of the flight control and improves usage efficiency.
5. 16MB large-capacity black box to ensure adequate recording of flight data.
6. Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
7. Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the heating problem of long-term power-on
8. Nano-scale coating is added to both sides of the board, and its main functions are waterproof, moisture-proof and corrosion-proof.

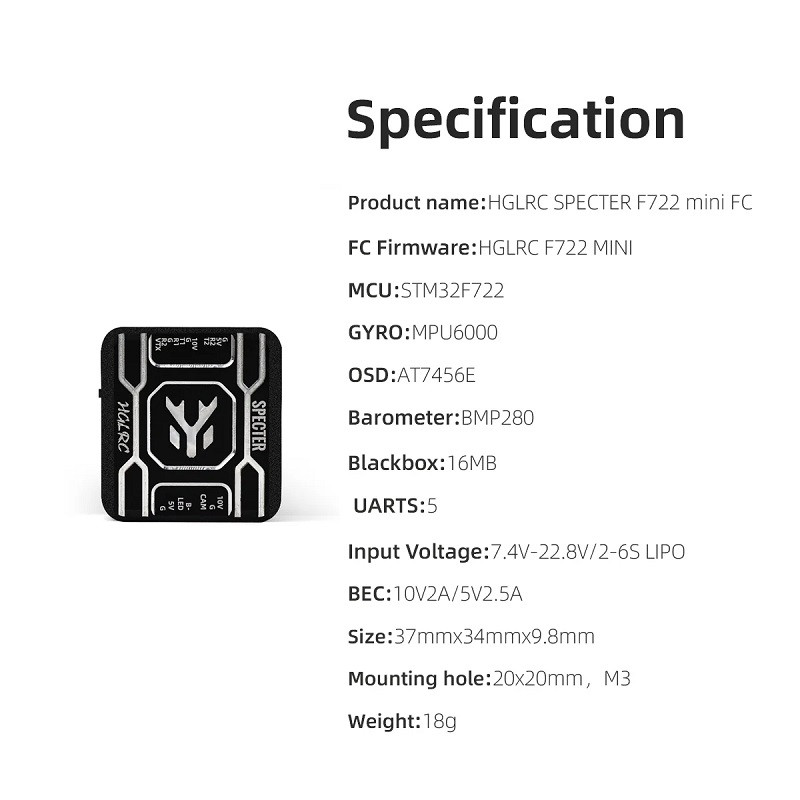

Specifications:

1. Flight controller : HGLRC-SPECTER F722 mini flight controller
2. Flight control firmware: HGLRCF722 MINI
3. MCU: STM32F722
4. GYROMPU6000
5. OSD:AT7456E
6. Barometer: BMP280
7. Black box: 16MB
8. UARTS: 5 groups
9. BEC: 10V2A/5V2.5A
10. Flight control size: 37mmx34mmx9.8mm
11. Installation hole position: 20x20mm, M3
12. Weight:18g

Package Includes:

1 x HGLRC SPECTER F722 mini flight controller
1 x 30AWG 25mm double-ended SH1.0-8P cable
1 x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable
1 x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable
1 x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable
1 x 30AWG 100mm single-head SH1.0-4P receiver cable
4 x M3*20 hexagon socket screws
