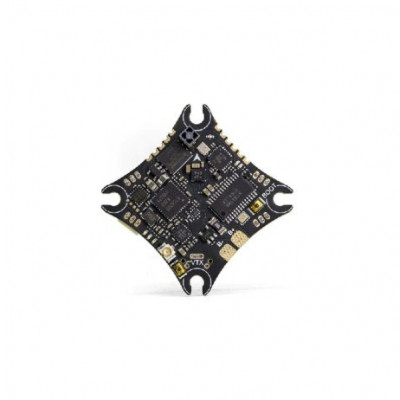

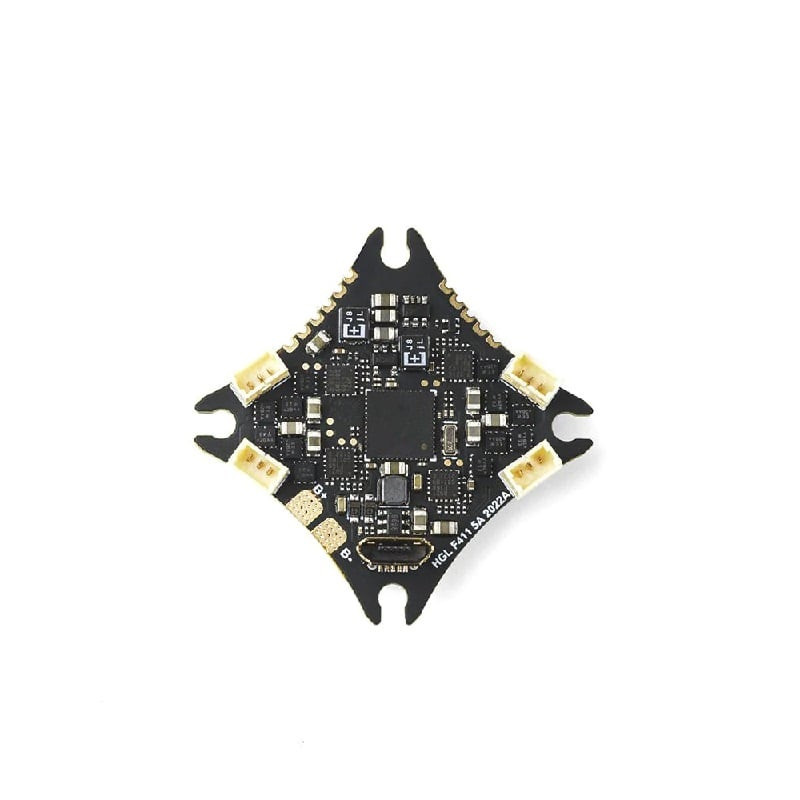

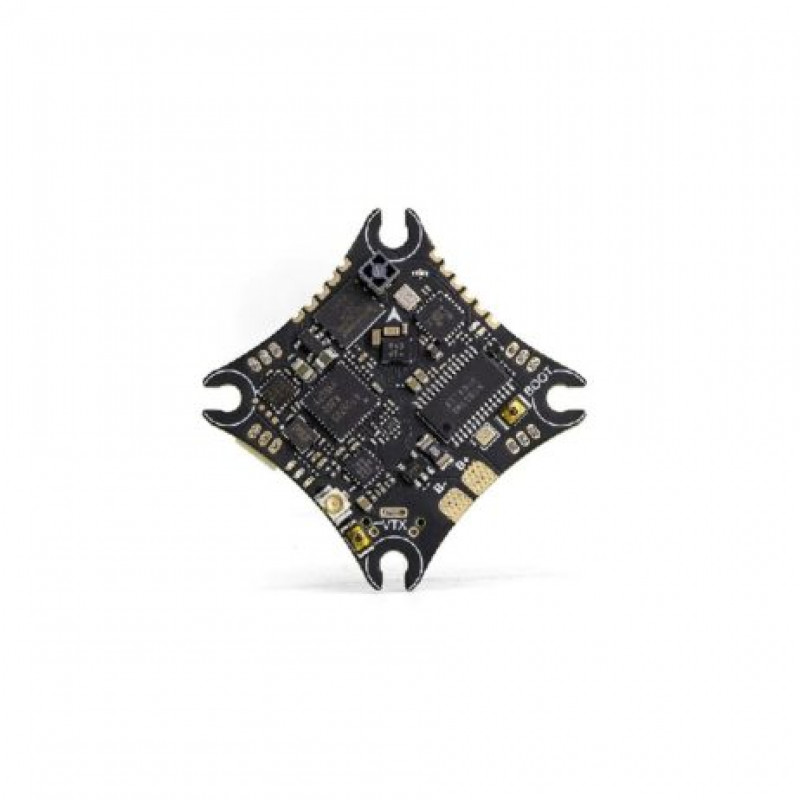

This is an ultra-light F411 5A 1S AIO integrated brushless flight controller, integrated SPI ExpressLRS 2.4G receiver, and integrated 200mW 5.8GHz adjustable power video transmission at the same time. The SPI ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SPI D8/D16 protocol. The ELRS receiver superimposes 200mW high-power video transmission to easily fly around the harsh indoor environment. The built-in receiver has the characteristics of high sensitivity, high refresh rate, and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/lightweight toothpick drone/whoop series and other frames on the market
Specifications:
- Product name: ZEUS5 ES24 1S AIO
- MCU: STM32F411
- MPU: BMI270
- BEC: 5V1.5A
- Black box: 16M
- OSD: support
- LED: support
- Buzzer: support
- UARTS: 1 image transmission OSD Adjustment parameters/2 CRSF protocol receiver
- Built-in receiver: SPI ExpressLRS 2.4G
- Built-in receiver frequency: 2.4GHZ
- Built-in image transmission: 25-100-200mW (adjustable)
- Built-in image transmission frequency: 48CH-5.8ghz
- Continuous current: 5A
- Peak current: 7A (10s)
- ESC protocol: Dshot600, Oneshot, Multishot
- Flight control firmware: HGLRCF411SX1280
- ESC firmware: O-H-5 (Bluejay)
- Input voltage: 1S 2.9-4.35v (Lipo)

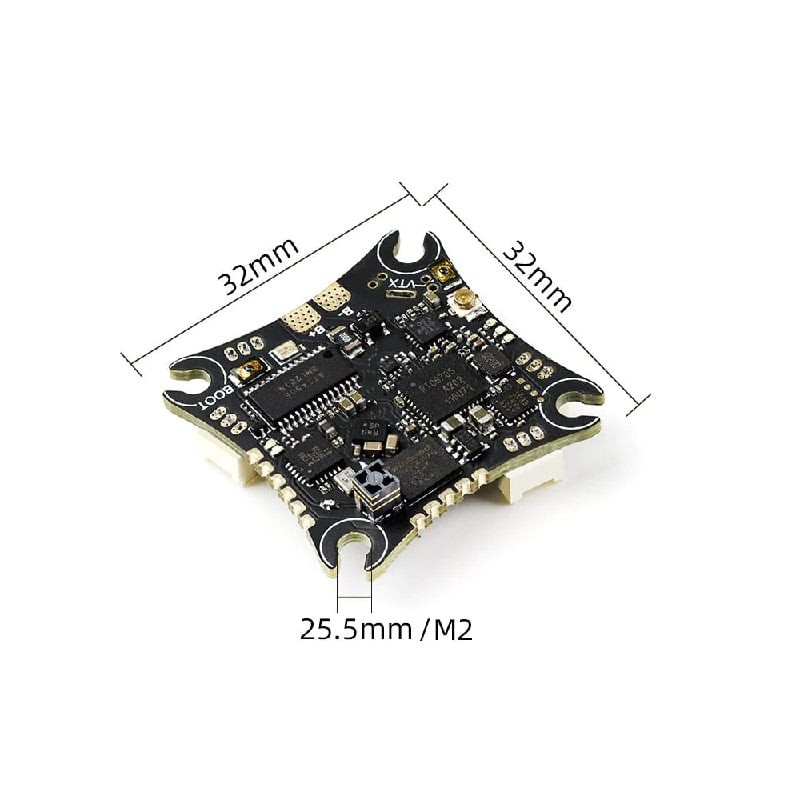

- Size: 32x32mm
- Mounting hole: 25.5X25.5mm.M2

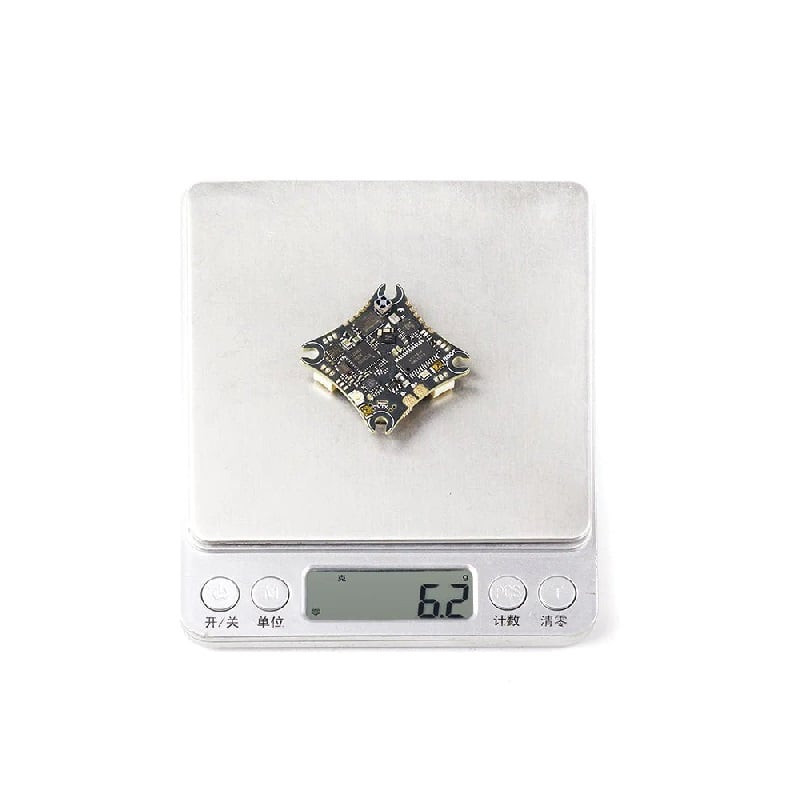

- Weight: 6.2g
Features:
1. Built-in SPI ELRS receiver/or external CRSF protocol receiver
2. Built-in integrated 200mW 5.8GHz analog video transmission

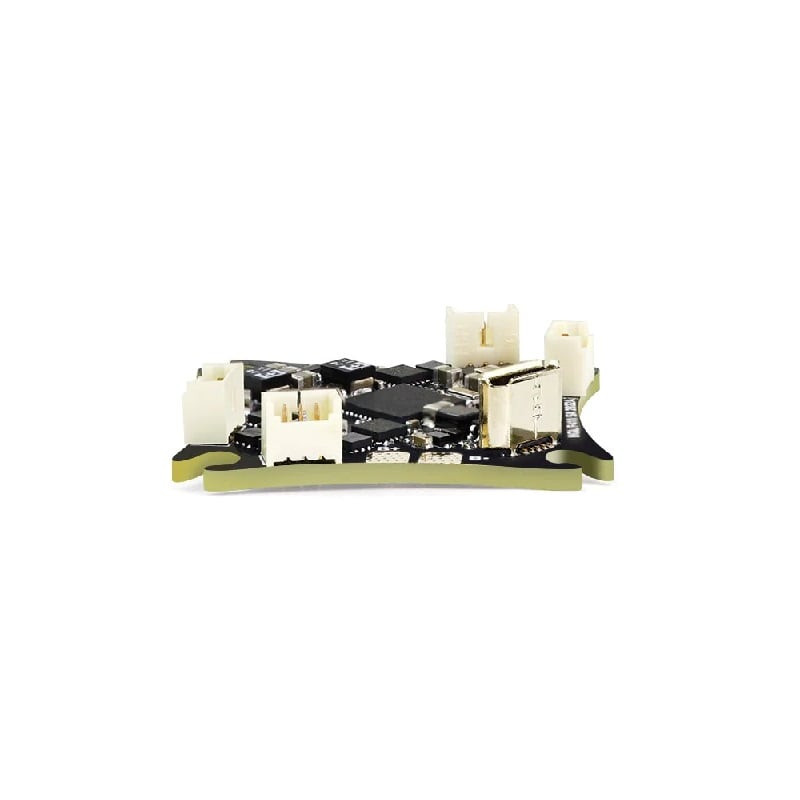

3. Independent 3P socket, which can be directly connected to the motor
4. Built-in 16M black box, convenient to adjust parameters, view flight data and other functions
5. By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone
6. Compatible with all 65mm-75mm hoop/toothpick frames
Package Includes:
1 x ZEUS5 ES24 1S AIO
1 x XT30U-M 22AWG 70mm male power cord
1 x PH2.0-2P 22AWG 35mm male power cord
1 x MX1.25-3P 30AWG 75mm camera cable
4 x M2*6.6 Shock-absorbing column
