Holybro M9N GPS has a UBLOX M9N module, IST8310 compass, a tri-colored LED indicator, and a safety switch. There are 3 different connector options for different purposes.
This module ships with a baud rate of 115200 5Hz
Note: For more info refer to the datasheet in the attachment section
Features:
- Ublox Neo-M9N module
- Max concurrent reception of 4 GNSS
- Industry-leading 167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- Current consumption: less than 150mA @ 5V
- Fix indicator LEDs
- Protective case
- 26cm cable included
- Diameter 50mm total size, 32 grams with case.

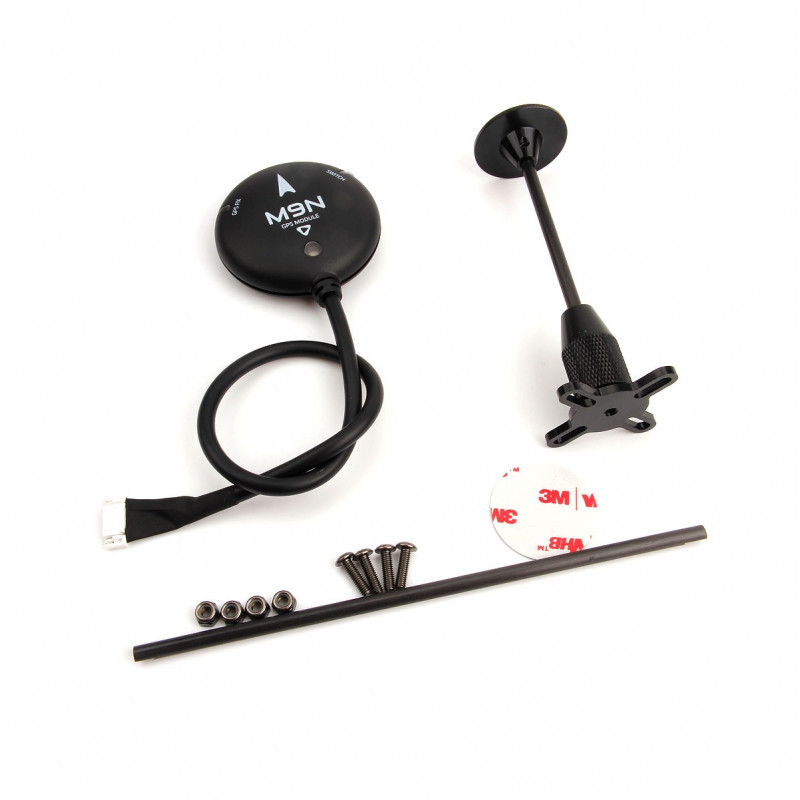

Packages Includes:
1 x M9N GPS Module
1 x X type folding pedestal mount
1 x Carbon rod 70mm & 140mm
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

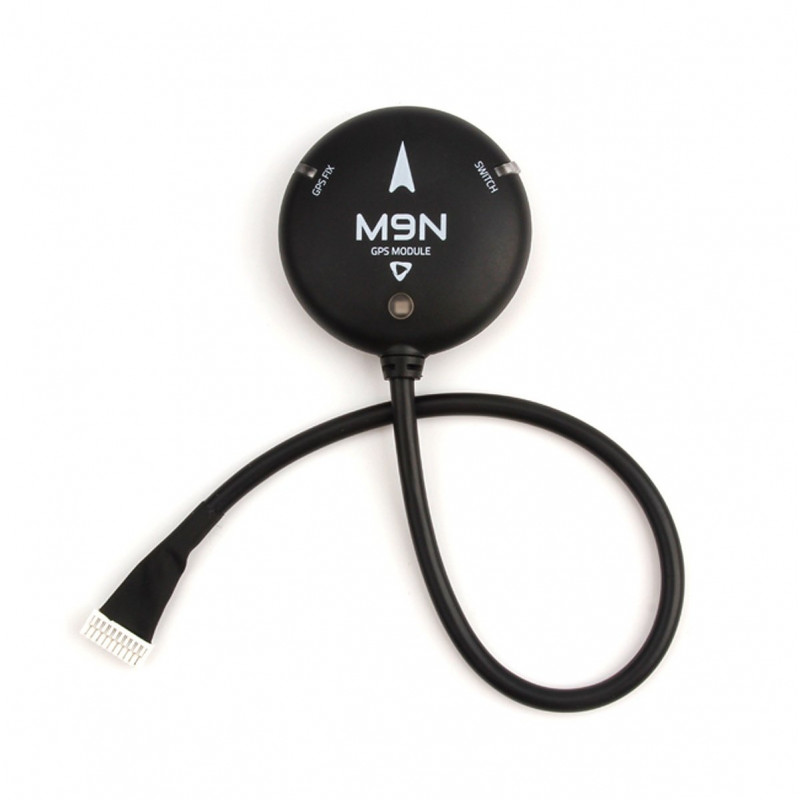

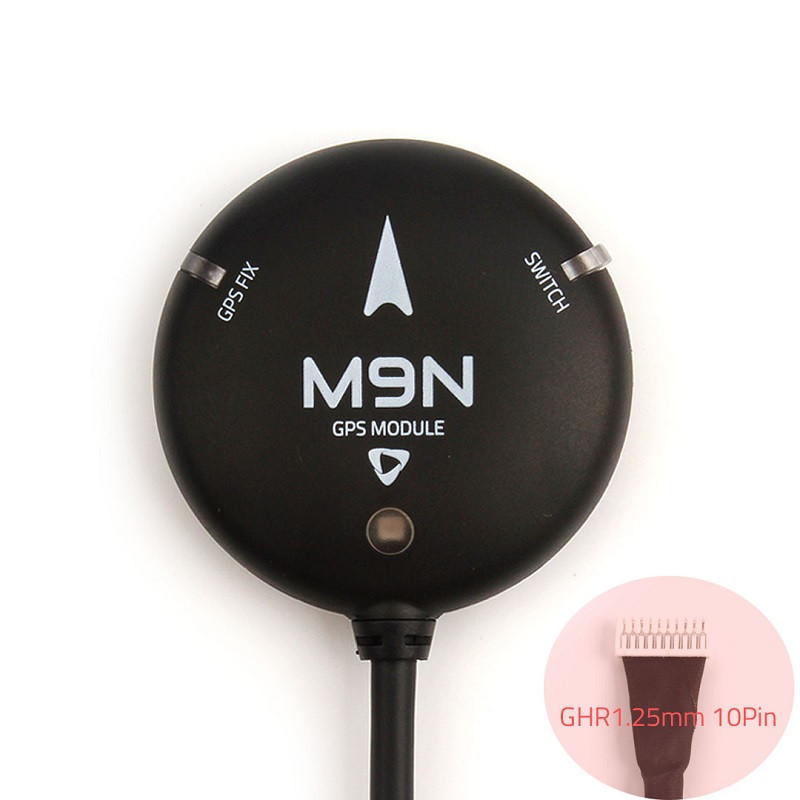

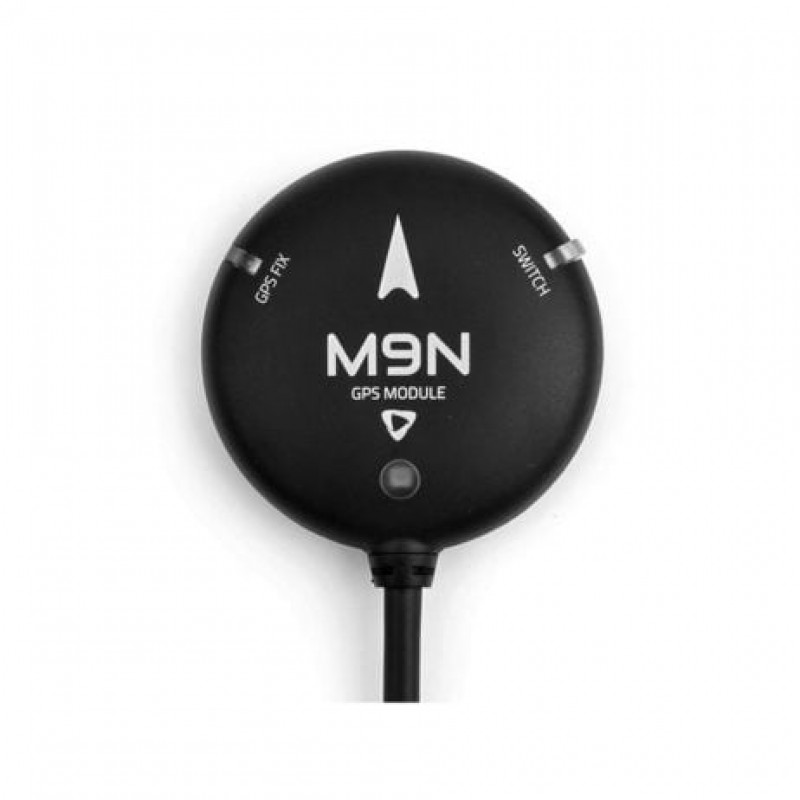

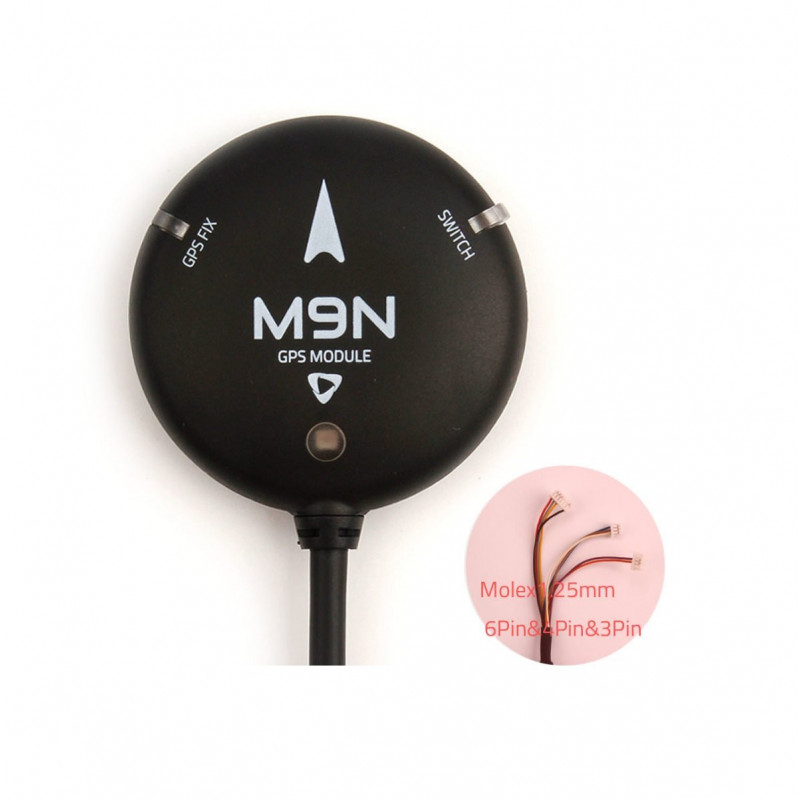

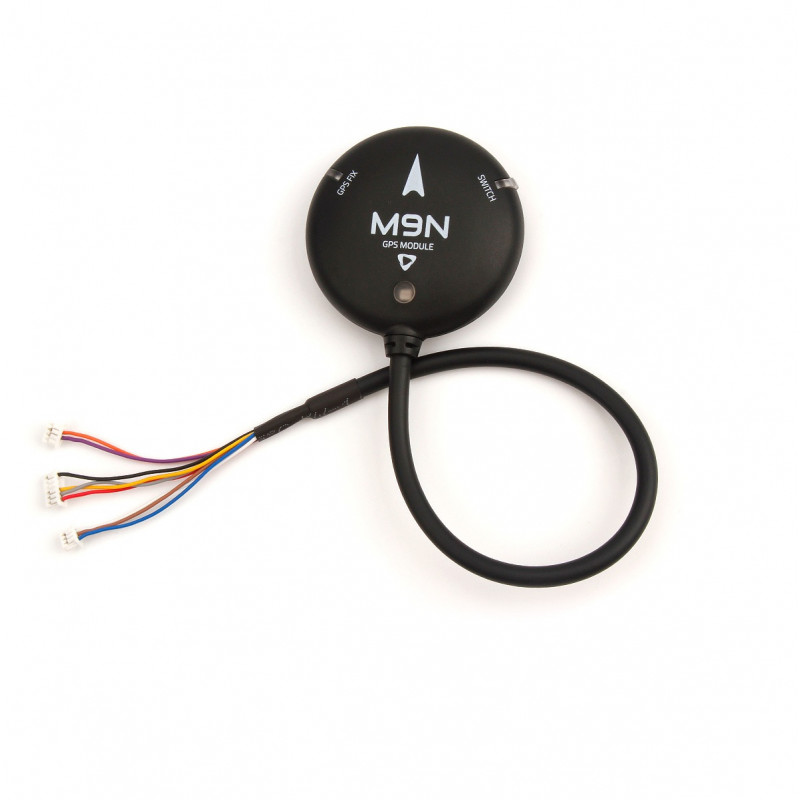

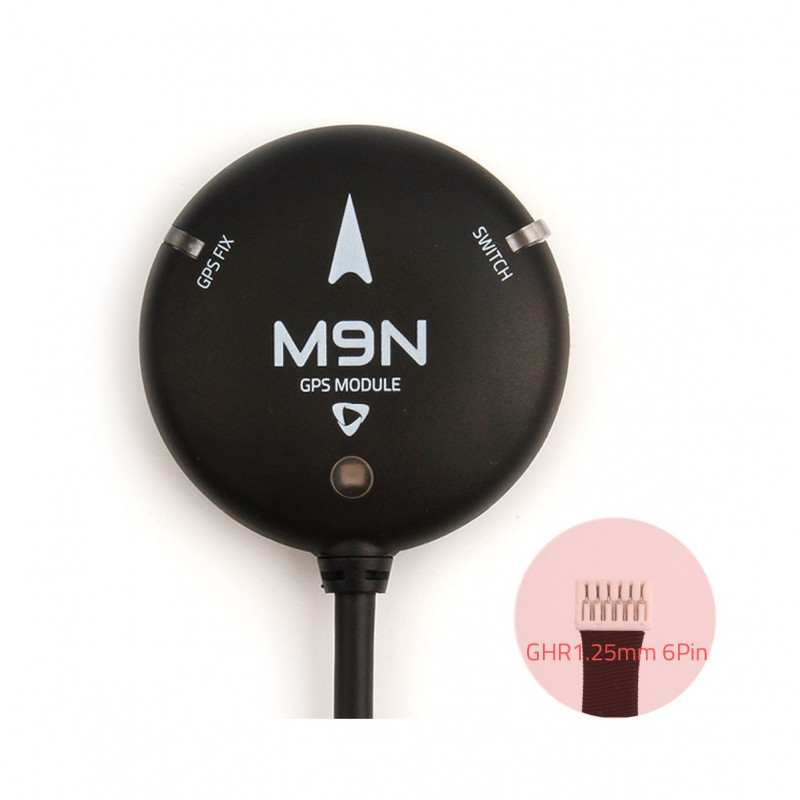

Holybro M9N GPS
- Product Code: EC-22117
- Availability: 18
-
Rs.8202.00
- (Excluding 18% GST)
