HFD27/0005-S is a subminiature DIP relay which can be mounted on a 16 pin IC base. This is a Double Pole Double Throw (DPDT) type relay and is Epoxy Sealed so can be used with automatic wave soldering machines. The HFD27/0005-S relay has bifurcated contacts thus reduce contact bounce, increase reliability and assist in switching. Bifurcated contacts conduct the switching more efficiently.

Features:

• 8A switching capability
• 5kV dielectric strength (between coil and contacts)
• Low height: 12.5 mm
• Creepage distance >8mm
• Meeting VDE 0700, 0631 reinforce insulation
• Product in accordance to IEC 60335-1 available
• 1 pole configurations available
• UL insulation system: Class F
• Plastic sealed and flux proofed types available

Specifications:

• Brand : Hongfa
• Coil Voltage (DC) : 5 V
• Contact Arrangement : 2 Form C
• Contact Current Rating : 2 A
• Termination : PCB
• Construction : Plastic sealed
• Mounting : DIP
• Contact capacity : AgNi+Au plated
• Contact plating : Au plated
• Release time : < 4ms
• Coil power : 200mW
• Insulation resistance :1000MOhm
• Dielectric strength (between coil & contacts) : 2000VAC 1min
• Operate time : < 7ms
• Ambient temperature : -40~85C
• Max Switching Voltage (VDC) : 120VDC
• Max Switching Voltage (VAC) : 240VAC
• Max Switching Current (AC) : 2AC
• Weight : 5gm
• Electrical endurance : 100000
• Size : 20x10x11.5mm
• Mechanical endurance : 100000000

Package Includes:

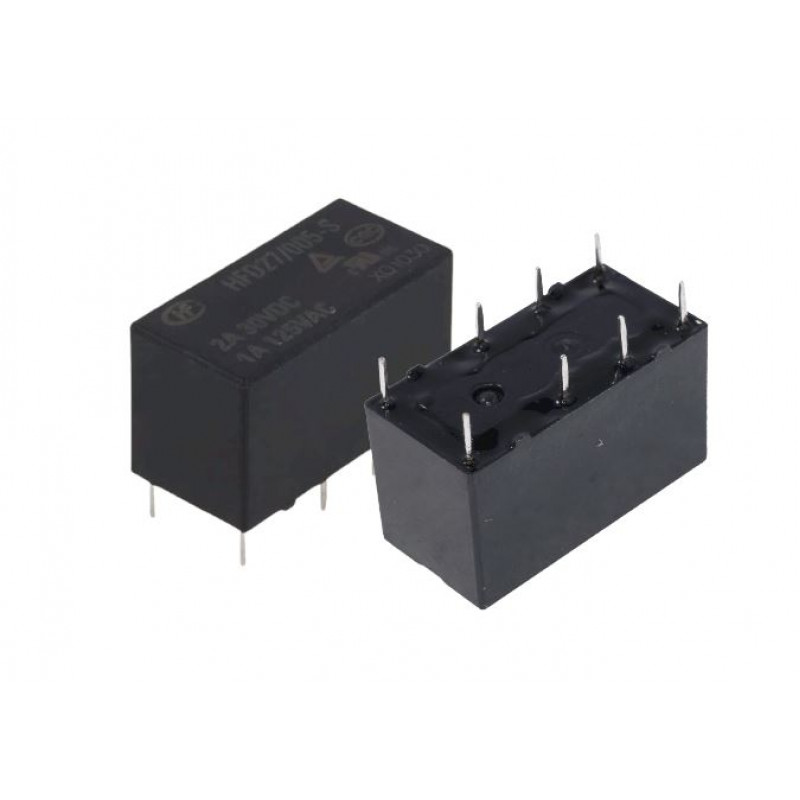

1 x Hongfa 5V 2A DC HFD27/005-S 8 Pin DPDT PCB Mount Telecom Relay
