The LD1117 is a low-drop voltage regulator able to provide up to 800 mA of output current. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space-saving effect. High efficiency is assured by the NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10F minimum capacitor is needed for stability. On-chip trimming allows the regulator to reach a very tight output voltage tolerance, within 1% at 25C.
Note: For more technical details go through Datasheet in the attachment section.
Features:
- Low dropout voltage (1V typical)
- 2.85V device performances are suitable for SCSI-2 active termination
- Adjustable version availability (VREF= 1.25V)
- Internal current and thermal limit
- Available in 1% (at 25C) and 2% in full temperature range
- 75dB Supply voltage rejection
Package Includes:

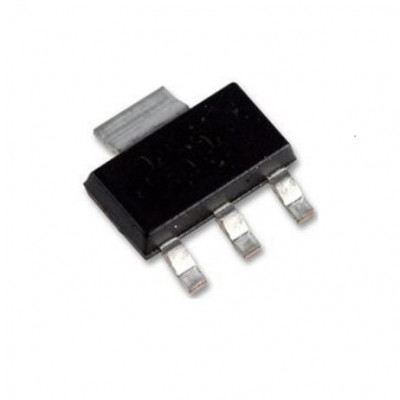

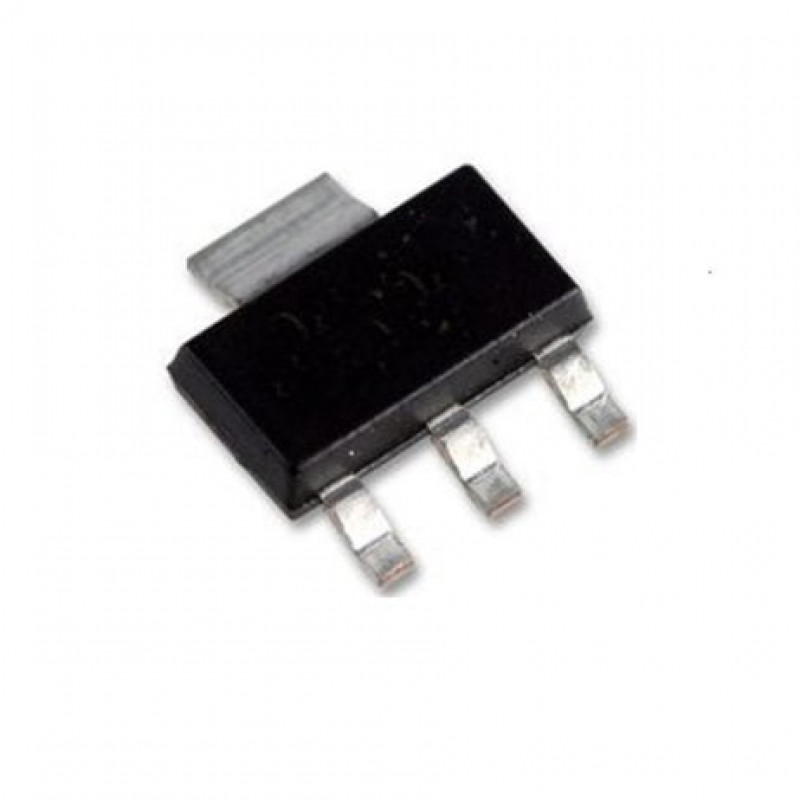

1 x LD1117S50TR STMICROELECTRONICS Fixed LDO Voltage Regulator, 6.5V to 15V, 1.1V Dropout, 5Vout, 800mAout, SOT-223-3
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
LD1117S50TR STMICROELECTRONICS Fixed LDO Voltage Regulator, 6.5V to 15V, 1.1V Dropout, 5Vout, 800mAout, SOT-223-3
- Product Code: EC-18680
- Availability: 5
-
Rs.26.00
- (Excluding 18% GST)
