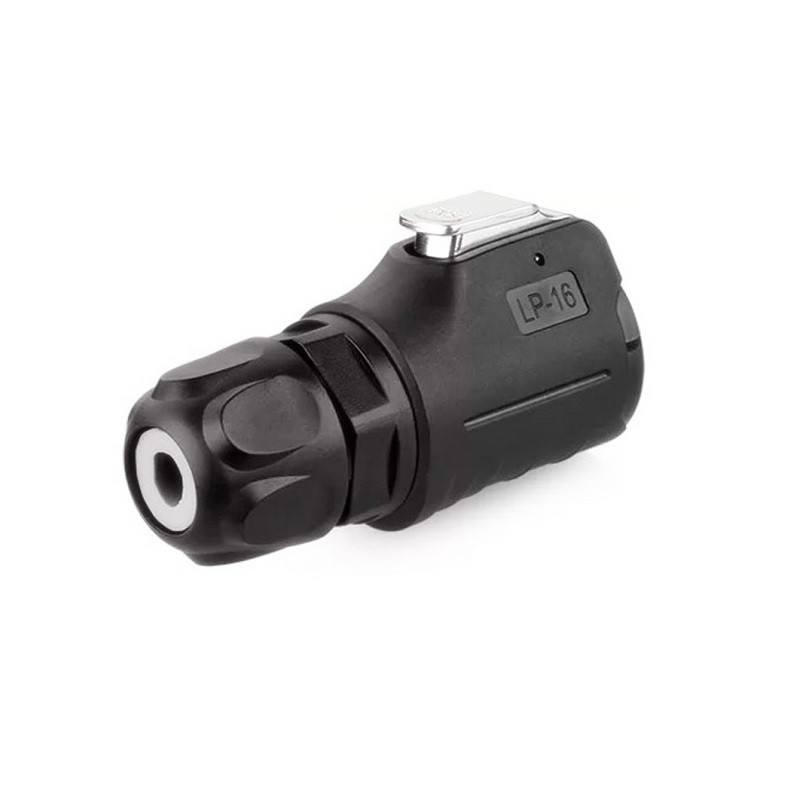

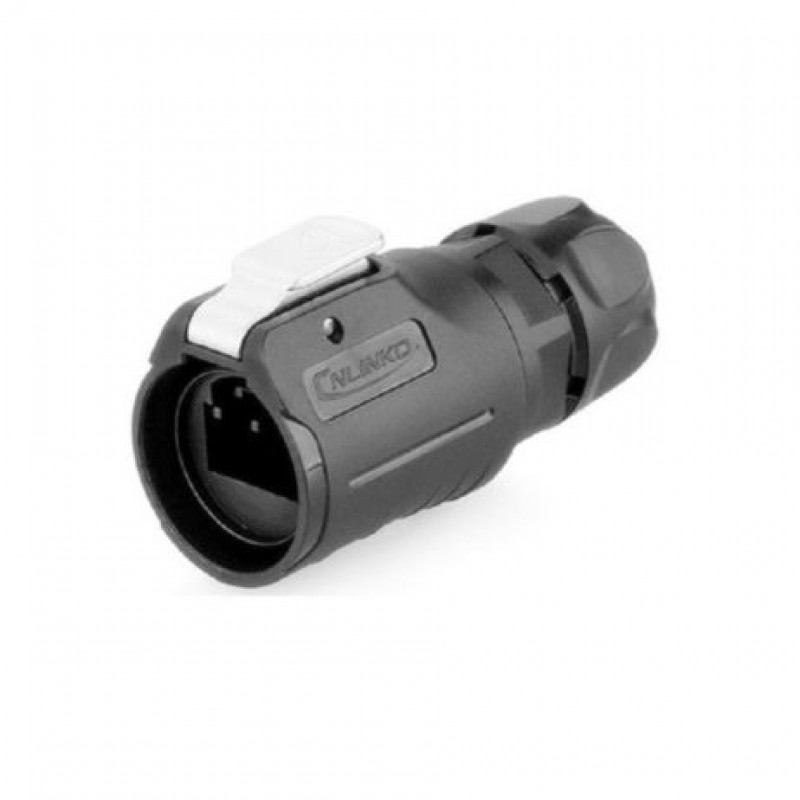

This is LP-16 RJ45 Male Power Plug Lock with Plastic Shell IP67. The LP series is one of the best-selling series waterproof connectors made with high-performance engineering plastics. The quick plug design allows one-hand plug/unplug.

LP-16 RJ45 Male Power Plug Lock with Plastic Shell IP67 is from LP-16 (The LP-16 series connectors are high quality with the high-quality performance under the harsh situation) and of RJ45 type. The RJ45 series connectors have multi-style connecting modes like 1/4 bayonet connect and quick plug-unplug applicable for harsh environments. Cable jacket with solid die-casted shell and unique dual-clip-clip wire saddle and sheath of cable applicable for common RJ45 plugs with electroplated shell against wind and rain. These connectors have a shielding system with high-frequency noise immunity and electromagnetic interference protection and protection level IP65 waterproof and dustproof. Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBit/s

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Design snap lock ensures stable and security firm.
2. Humanization design achieved blind operation.
3. Socket and internal made of zinc alloy, with well protected electromagnetic and radio frequency interference.
4. High strength corrosion resistance and electrical conductivity.
5. Shell made of material PBT, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
6. Both cable connector to cable connector and cable connector to panel mounting are also available.

Package Includes:

1 x LP-16 RJ45 Male Power Plug Lock with Plastic Shell IP67
