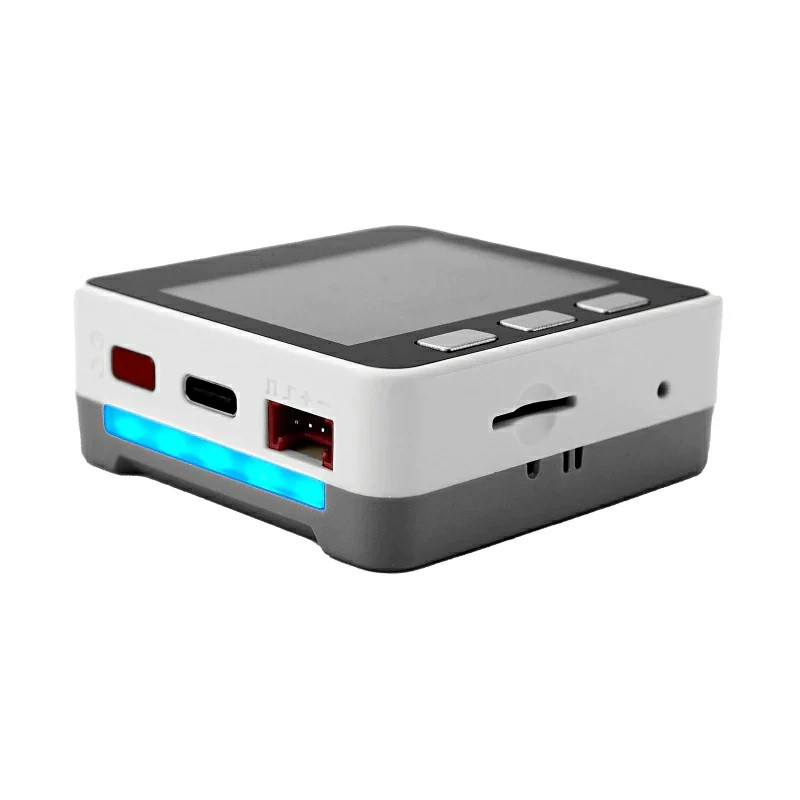

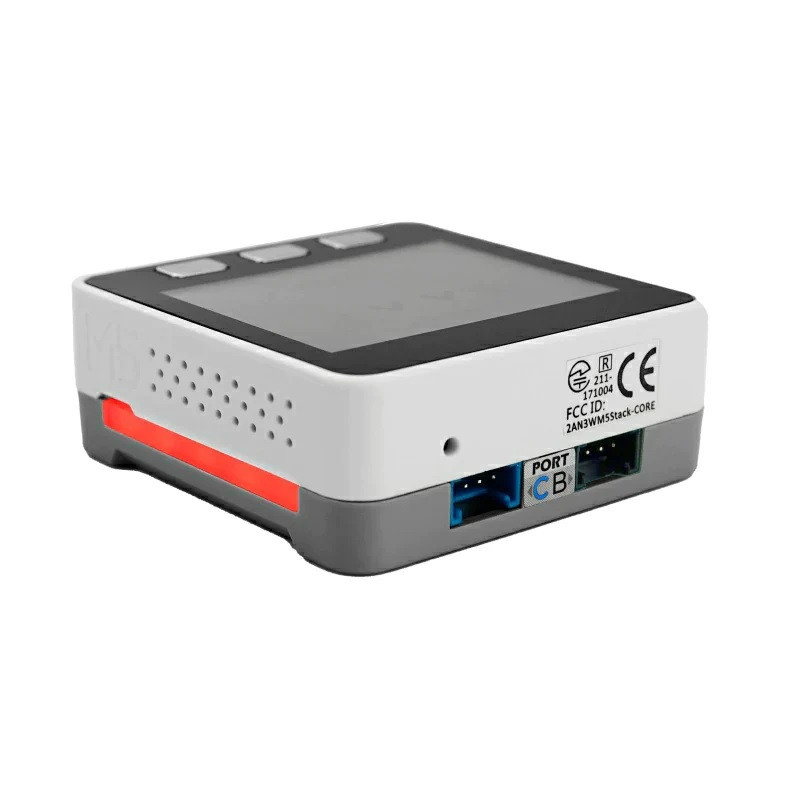

M5GO IoT Starter Kit v2.7is an affordable and comprehensive development kit designed for IoT enthusiasts. This kit offers everything you need to kickstart your IoT projects. The kit includes the Core Controller M5GO, along with six expansion units featuring various functions such assensors,actuators, andsplitters. (ENV III UNIT, PIR UNIT, ANGLE UNIT, IR UNIT, RGB UNIT and HUB UNIT)

The Espressif ESP32 chip, renowned for its performance and versatility, is at the heart of the M5GO. M5GO is powered by two low-powerXtensa 32-bit LX6microprocessors, operating at a main frequency of240MHz. With 16M FLASH memory, you have ample space to accommodate larger program sizes and complex applications.

In addition to its processing power, the M5GOs ESP32 chip also supports Wi-Fi connectivity. This opens up a world of possibilities for buildingsmart wearabledevices, creatingsmart homesolutions, and developing other innovative applications. With its built-in Wi-Fi capabilities, the M5GO empowers you to seamlessly connect your projects to the internet and explore the vast potentials of the IoT ecosystem.

Applications:

1. STEM Education
2. IoT Controller
3. Smart Home
4. Smart Weather Station

Features:

1. Based on ESP32 development
2. 16M FLASH
3. The device is equipped with a 2.4 GHz antenna
4. The device features three customizable keys
5. Integrated HD IPS display panel with various hardware peripherals

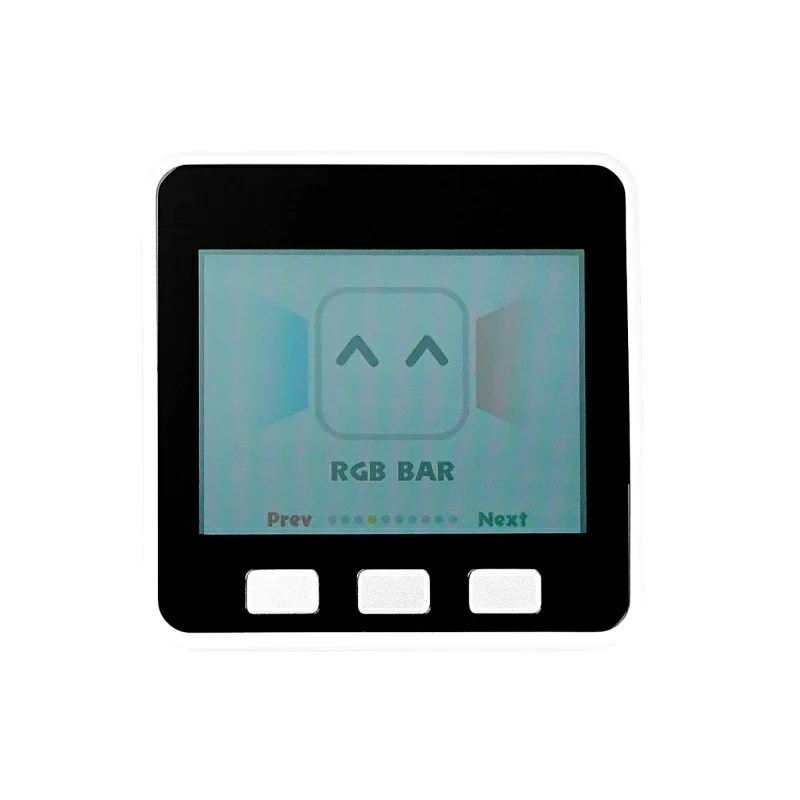

6. The device features a 2-inch IPS TFT LCD with a resolution of 320240, utilizing the ILI9342C controller and capable of achieving a maximum brightness of 853 nits.
7. Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability

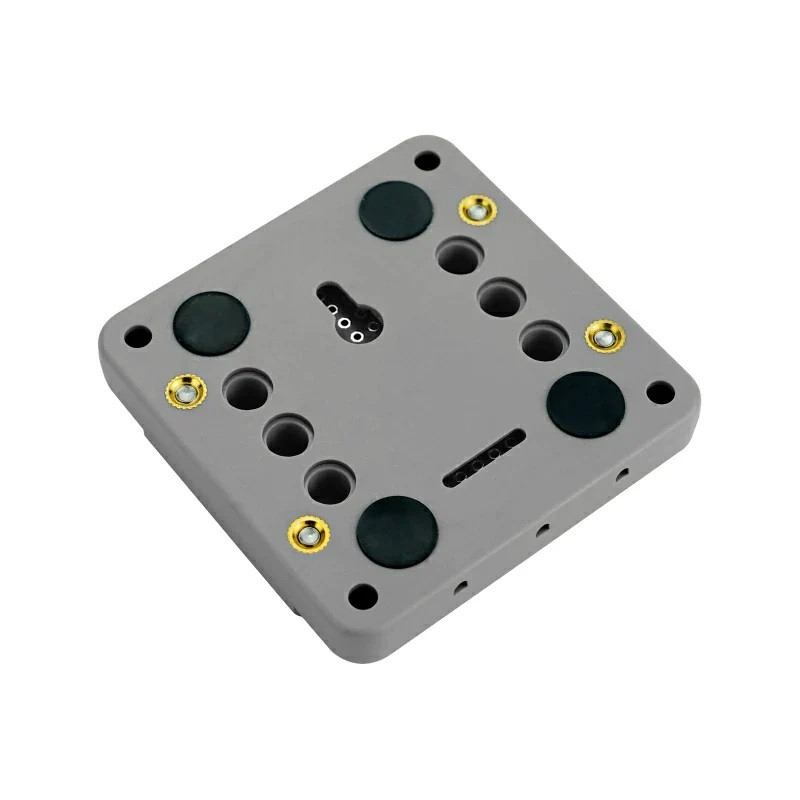

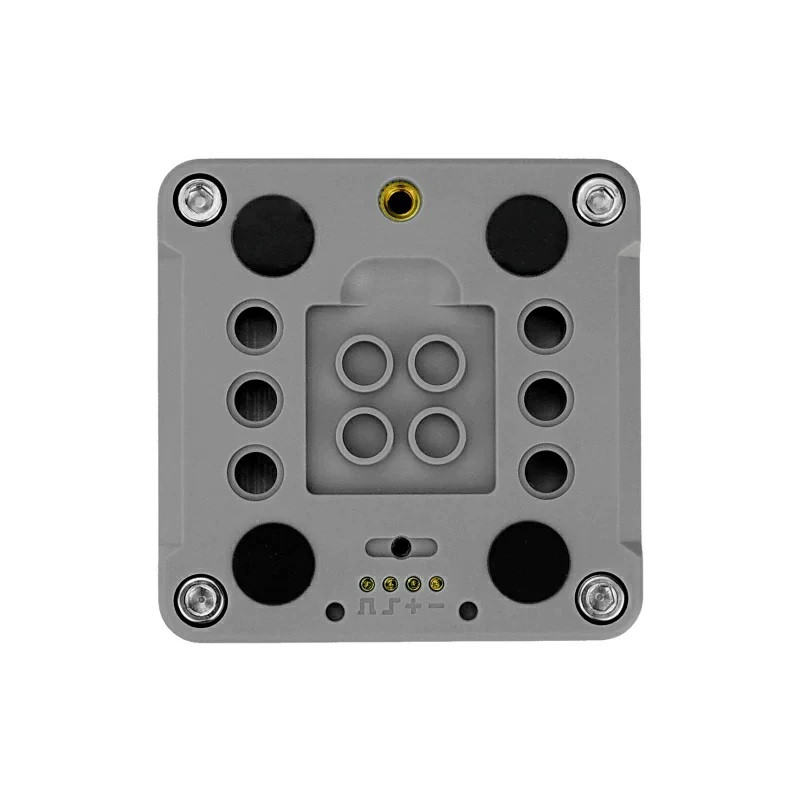

8. The base is compatible with 8mm size LEGO blocks, the structures are just so interesting!
9. Microsoft Azure authentication device
10. Compatible with multi-platform development:
    • UIFlow
    • MicroPython
    • Arduino
    • .NET nano framework

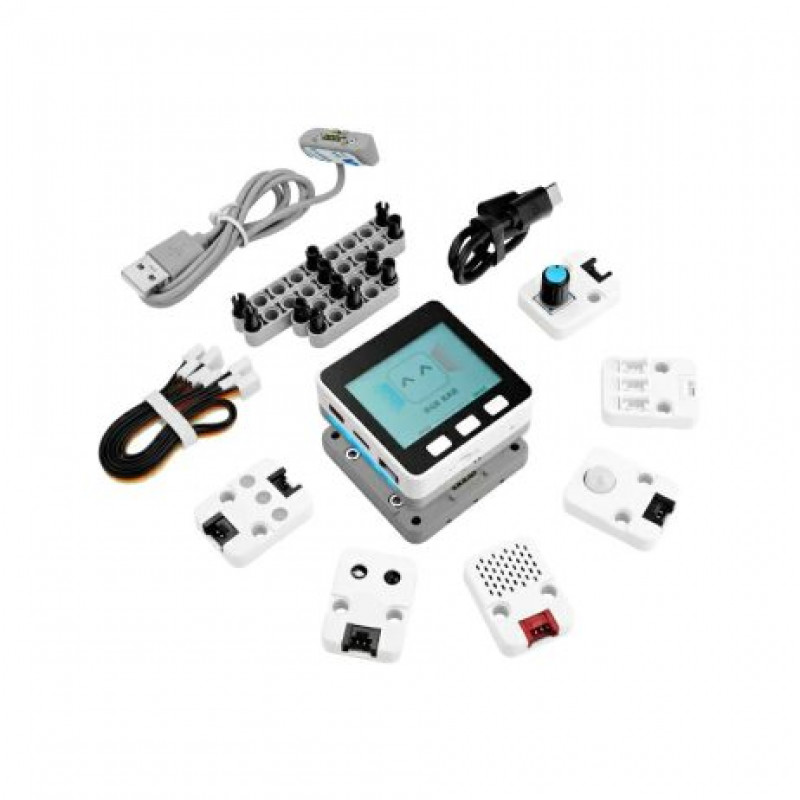

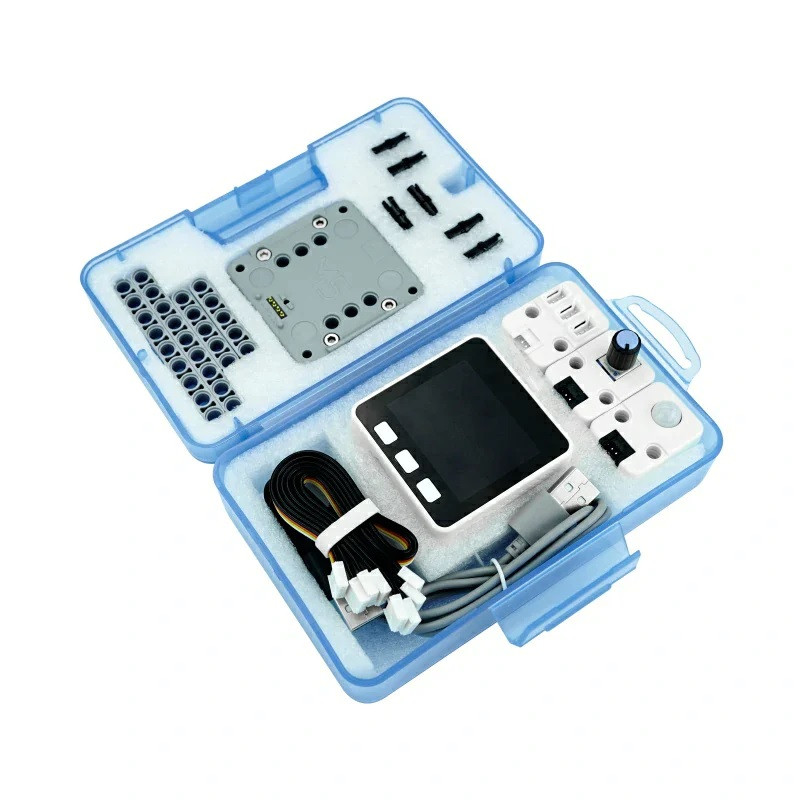

Package Includes:

1x M5GO

6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)

4x LEGO Blocks

12x LEGO Connections

4x GROVE cable

1x Type-C USB (20cm)

1x Quick Start Guide
