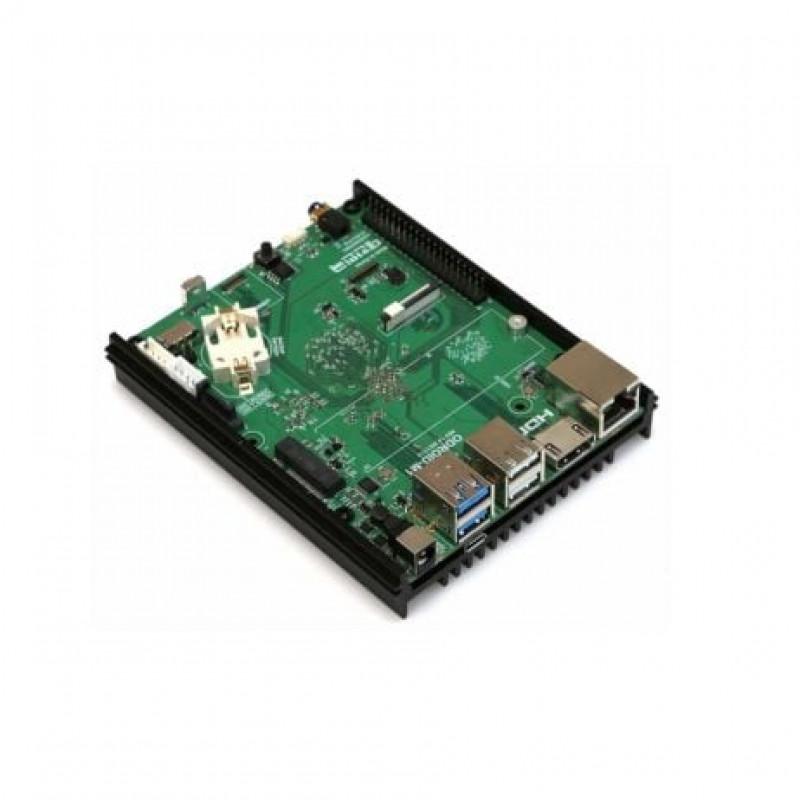

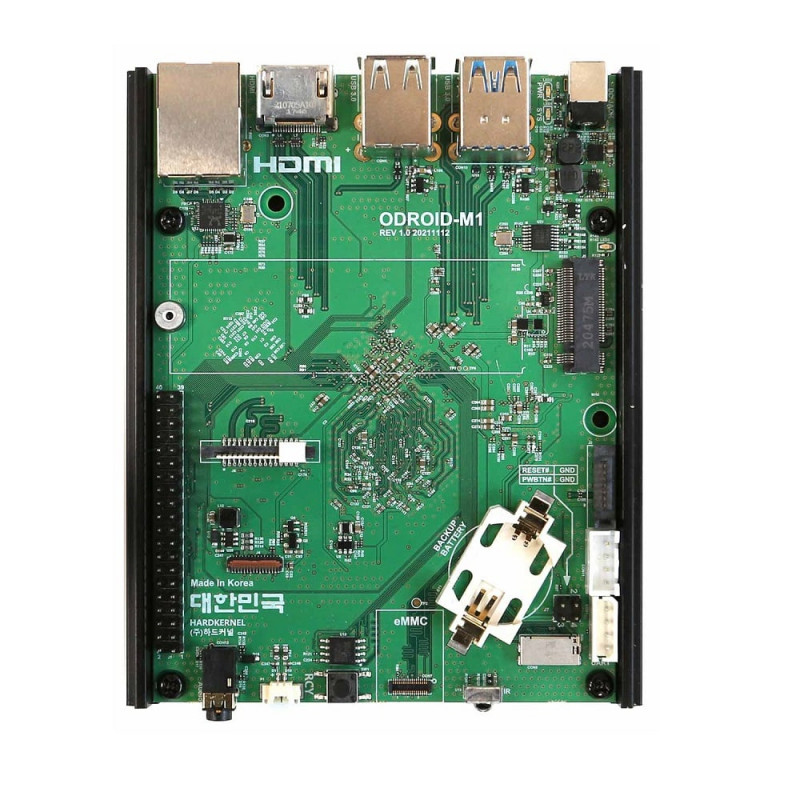

The ODROID-M1 with 4GByte RAM is a single-board computer with a wide range of useful peripherals developed for use in a variety of embedded system applications. To achieve this goal, we have developed various hardware accessories and device driver software over the past 10 months. In addition, RK3568B2, the core brain of ODROID-M1, is considered suitable for embedded application use as the SoC manufacturer (Rockchip) guarantees supply for the next 15 years. Therefore, we expect we can supply the ODROID-M1 boards to our important B2B customers until the year 2036or beyond.

Note that RK3568B2 is a slightly modified version of the RK3568 to overcome the IC supply chain problem these days. The previous RK3568 metal-can type packaging lead time is much longer than the more common plastic package of the RK3568B2.

Lets take a look at the main features and peripherals of ODROID-M1.

TheCPU has four ARM Cortex-A55 processors with low power consumption and high-efficiency operation at 2 GHz. The CPU and GPU performance is quite similar to our ODROID-C4.

A larger 8GB of LPDDR4 DRAMMemory is available while there is also a 4GB model for a reduced cost.

Petitboot pre-installed into the onboard 16MiB of SPI-FlashMemory helps manage various OS and kernel versions easily and supports booting from microSD, eMMC, NVMe, SATA, and USB storage devices. In addition, since online OS installation using a network is possible, the cumbersome procedure of downloading and flashing an OS image is dramatically reduced.

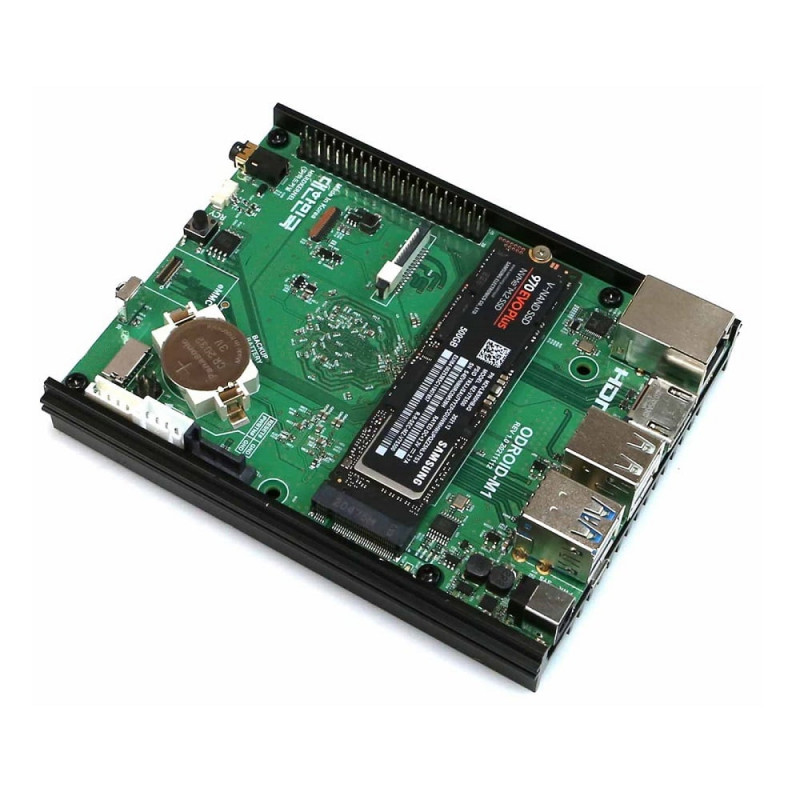

A standard size 22mm x 80mmM.2 NVMe storage device can be directly installed on the ODROID-M1 board. The M.2 connector has a PCIe 3.0 2-lane configuration which can deliver a blazing fast 1600MB/sec of sequential access performance. Note that M.2 SATA storage devices cannotbe used. The M.2 slot supports only a PCIe interface (M-Key).

Features:

1. An ideal choice for industrial applications due to the guaranteed 15-year availability of key component
2. Wide range of connectivity options
3. M.2 NVMe for SSDs and PCIe applications
4. Dual display capability
5. CSI camera support
6. USB3 ports are on their own individual controllers (not shared)
7. Built-in SATA support
8. 3 different audio-out options for a variety of applications
9. IR receiver for remote controller
10. RTC and backup battery holder (to keep time and date for several months without main power input)
11. System LED Indicators:
    Red (POWER) Solid light when DC power is connected
    Blue (ALIVE) Flashing heartbeat while Kernel is running. Solid On when in the u-boot stage.

Package Includes:

1 x ODROID-M1 with 4GByte RAM
