The ATWINC1510-MR210xB is a low power consumption 802.11 b/g/n IoT (Internet of Things)
module,specifically optimized for low power IoT applications. The module integrates Power Amplifier (PA),
Low-Noise Amplifier (LNA), Switch, Power Management, and a printed antenna or a micro co-ax (u.FL)
connector for an external antenna resulting in a small form factor (21.7 x 14.7 x 2.1 mm) design. It is
interoperable with various vendors 802.11 b/g/n access points. This module provides SPI ports to
interface with a host controller.

Application :

The WiFi Shield is great for turning your OpenMV Cam into a Web Cam. With the WiFi Shield youll be able to stream JPEG compressed images to connecting Web Browsers like FireFox. Once the WiFi Shield is connected to the internet youll be able to send and receive data over TCP/UDP ports using MicroPythons BSD socket low-level network interface.

Features:

1. IEEE 802.11 b/g/n 20 MHz (11) solution
2. Single spatial stream in 2.4 GHz ISM band
3. Integrated Transmit/Receive switch
4. Integrated PCB antenna or u.FL micro co-ax connector for external antenna
5. Superior sensitivity and range via advanced PHY signal processing
6. Advanced equalization and channel estimation
7. Advanced carrier and timing synchronization
8. Wi-Fi Direct (supported till firmware release 19.5.2)
9. Soft-AP support
10. Supports IEEE 802.11 WEP, WPA, WPA2 security
11. Support Enterprise security with WPA/WPA2 (802.1X)(1)
    EAP-TLS
    EAP-PEAPv0/1 with TLS
    EAP-TTLSv0 with MSCHAPv2
    EAP-PEAPv0/1 with MSCHAPv2
    Superior MAC throughput via hardware accelerated two-level A-MSDU/A-MPDU frame aggregation
    and block acknowledgment
    On-chip memory management engine to reduce host load
    SPI host interface

Package Includes:

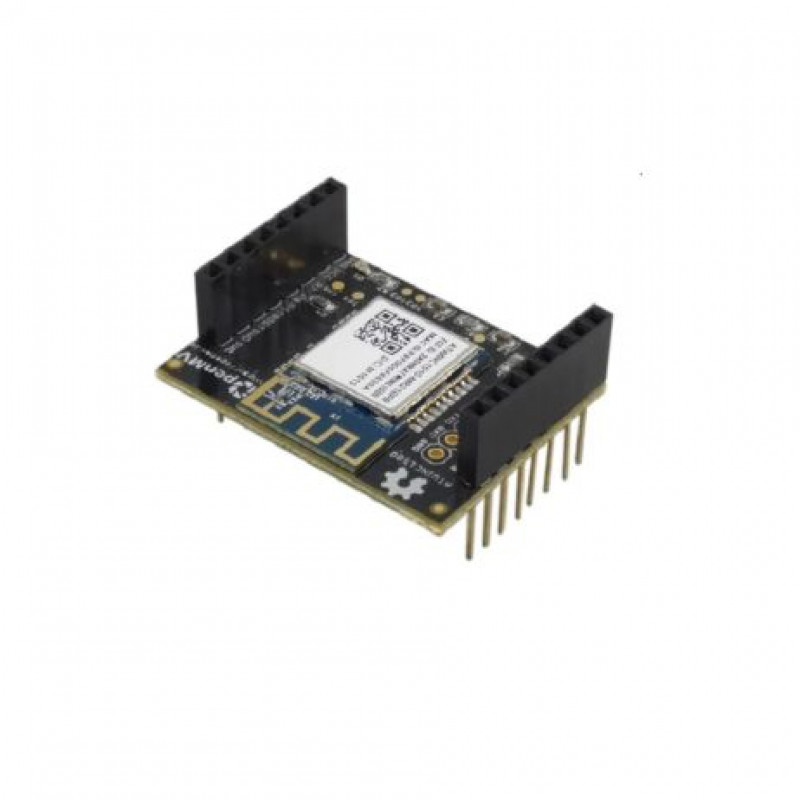

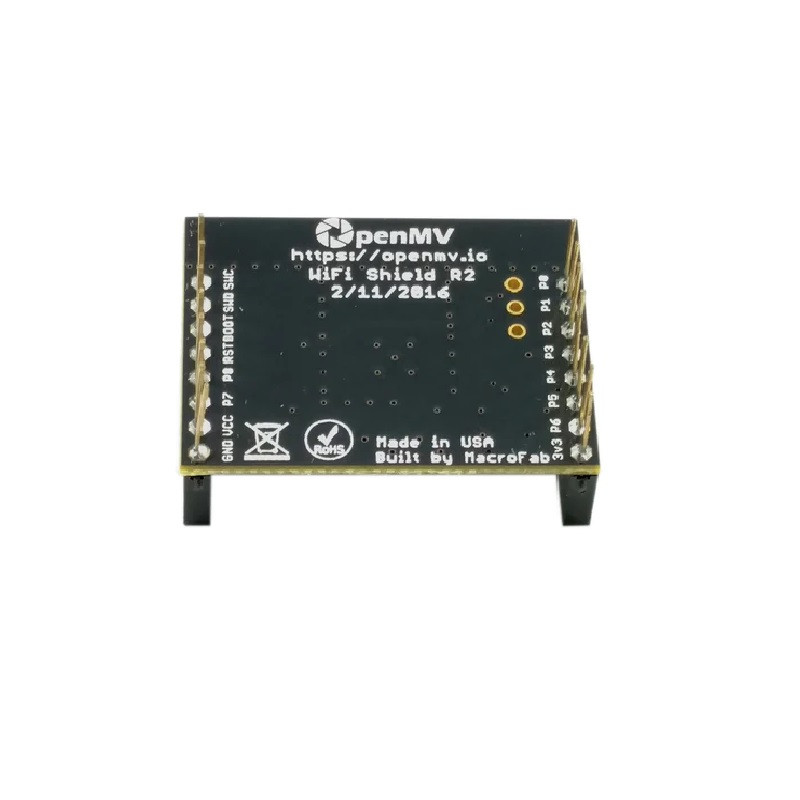

1 x OpenMV WiFi Shield
