The PCF8523T/1,118 is a Real-Time Clock and calendar optimized for low power consumption. Data is transferred serially via the IC-bus with a maximum data rate of 1000kbps. Alarm and timer functions are available with the possibility to generate a wake-up signal on an interrupt pin. An offset register allows fine-tuning of the clock. This has a backup battery switch-over circuit, which detects power failures and automatically switches to the battery supply when a power failure occurs.
Applications:
- Clock & Timing
- Metering
Features:
- Battery backup input pin and switch-over circuit
- Freely programmable timer and alarm with interrupt capability
- Internal power-on reset
- Open-drain interrupt or clock output pins
- Programmable offset register for frequency adjustment
Package Includes:
1 x PCF8523T/1,118 NXP Calendar, Clock IC, Format (YYYY:MM:WK:DD:hh:mm:ss/Binary), I2C, 1.2 V to 5.5 V supply, SOIC-8
Attachments :
DownloadBrand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

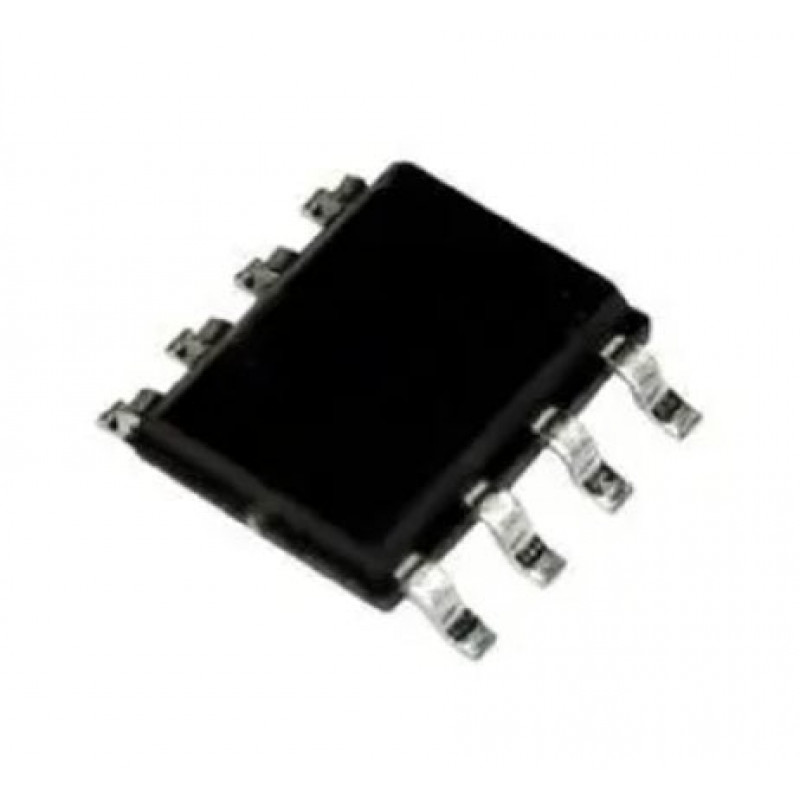

PCF8523T/1,118 NXP Calendar, Clock IC, Format (YYYY:MM:WK:DD:hh:mm:ss/Binary), I2C, 1.2 V to 5.5 V supply, SOIC-8
- Product Code: EC-18897
- Availability: 5
-
Rs.150.00
- (Excluding 18% GST)
