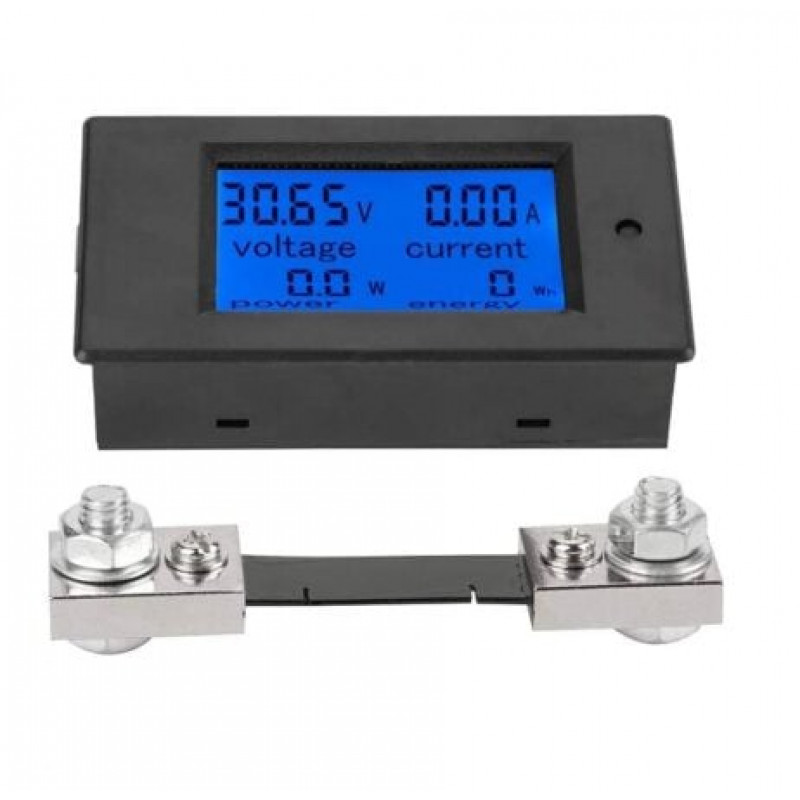

PZEM-051 with 100A shunt(HOT) DC meter product is a high-precision DC. digital meter that can measure and display the real-time voltage, current, power, and energy consumption of DC electrical equipment accurately, help users to understand the operation status of the equipment timely. Technical Parameter
Features:
- High Precision Measurement: Accurately measures real-time voltage, current, power, and energy consumption.
- Voltage Alarm Function: Alerts users with visual signals for over-voltage conditions.
- Energy Reset Function: Allows for easy resetting of energy data.
- Data Retention: Stores measurement data during power outages to prevent loss.
- Large LCD Display: Simultaneously shows voltage, current, power, and energy for easy monitoring.
- Backlight Function: Enhances visibility in low-light conditions, with memory to retain state during power off.
- Adjustable Measuring Range: Supports both 50A and 100A current measurements with compatible shunts.
Specification:
- Working Voltage: 6.5 V to 100 V
- Working Power Consumption: 10 mA (Regular: 12 mA)
- Measuring accuracy:1.0 Grade
- Voltage Accuracy: 1%
Package include:
1 x Peacefair PZEM-051 with 100A shunt(HOT) DC meter
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Peacefair PZEM-051 with 100A shunt(HOT) DC meter
- Product Code: EC-29527
- Availability: 12
-
Rs.764.00
- (Excluding 18% GST)
