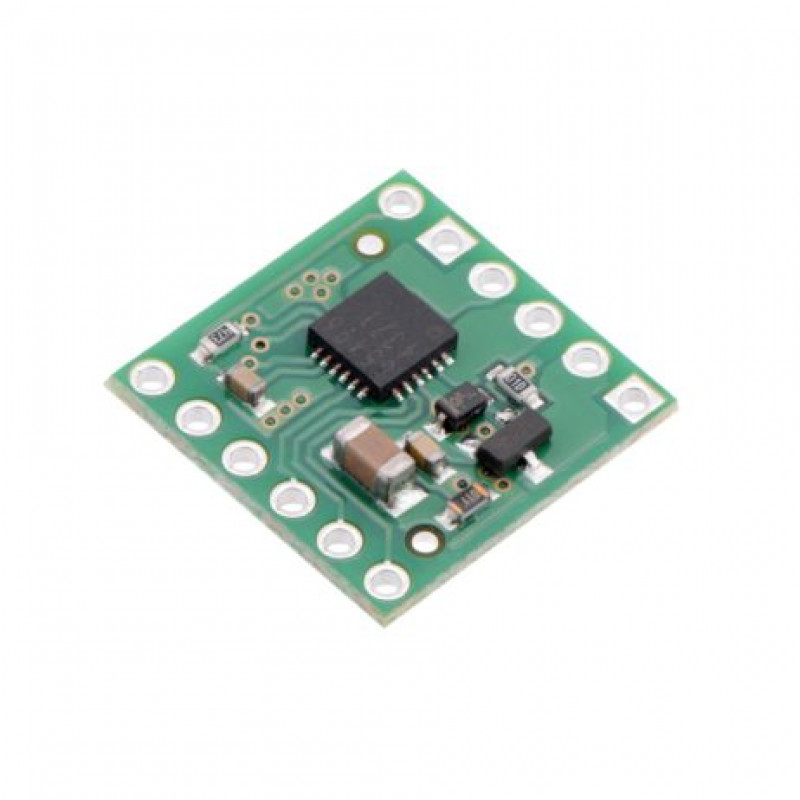

This is a BD65496MUV Single Brushed DC Motor Driver Carrier. The BD65496MUV from ROHM is a tiny H-bridge motor driver IC that can be used for bidirectional control of one brushed DC motor at 2 V to 16 V. It can supply up to about 1.2 A continuously and can tolerate peak currents up to 5 A for a few milliseconds. The BD65496MUV is a great IC, but its small surface-mount package makes it difficult for the typical student or hobbyist to use; our breakout board makes it easy to use with standard solderless breadboards and 0.1 perfboards The board ships populated with SMD components, including the BD65496MUV and a reverse battery protection circuit.

The motor driver features variable switching speed, allowing for PWM frequencies up to 500kHz, two drive mode options, and built-in under-voltage and over-temperature protection; our carrier also adds reverse-voltage protection.

Note: For more technical data kindly refer the attached datasheet

Features:

1. Single-channel H-bridge motor driver with shoot-through protection and internal free-wheeling diodes (can drive one DC motor)
2. Motor supply voltage: 2V to 16V
3. Logic supply voltage: 2.5V to 5.5V
4. Output current: up to 1.2A continuous (5A peak for a few milliseconds)
5. Two possible interface modes: IN/IN or EN/IN (one pin for speed and another for direction)
6. Configurable switching speed allows for PWM frequencies up to 500kHz

Package Includes:

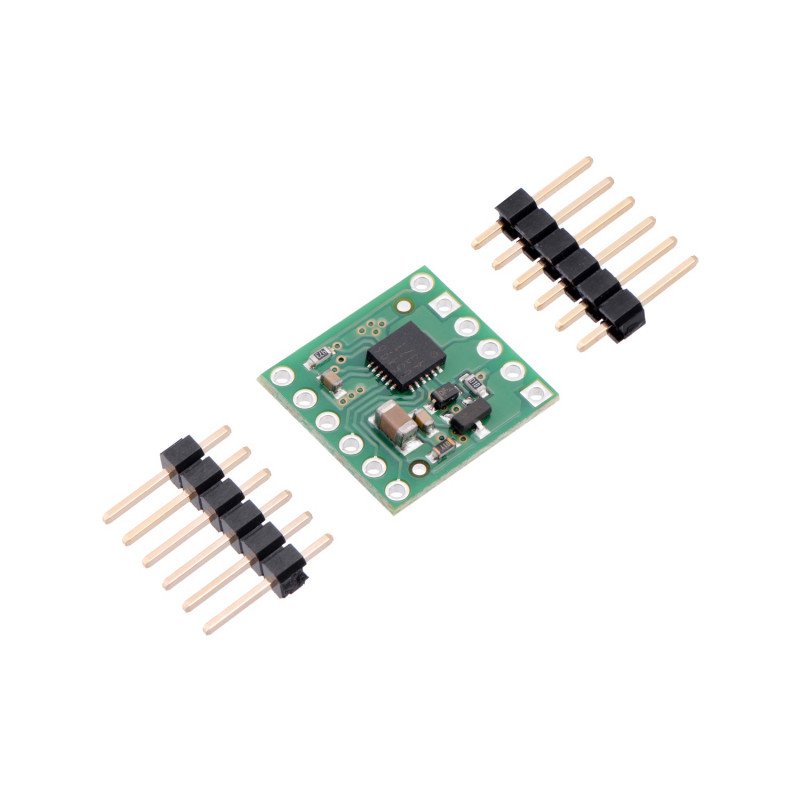

1 x Pololu BD65496MUV Single Brushed DC Motor Driver Carrier
