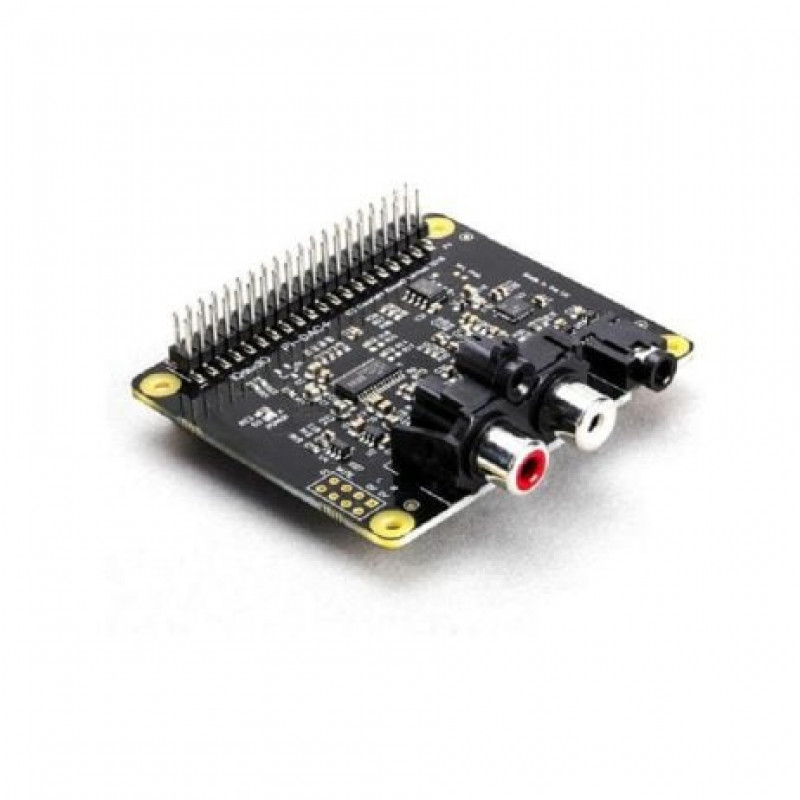

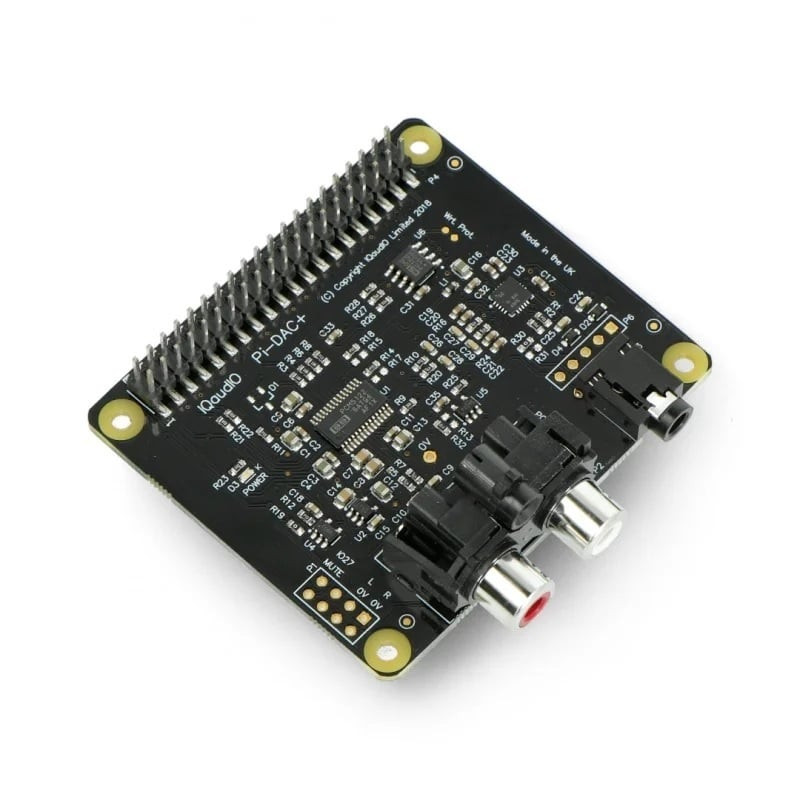

IQaudio DAC+ is an audio output HAT for all generations of Raspberry Pi from Raspberry Pi 1 Model B+ onwards and supports 24bit 192kHz high-resolution digital audio. It uses the Texas Instruments PCM5122 DAC to deliver stereo analog audio to a pair of phono connectors, and also supports a dedicated headphone amplifier.
DAC+ connects to the 40-pin GPIO header of Raspberry Pi 1 Model B+, Raspberry Pi 2, Raspberry Pi 3, or Raspberry Pi 4 with no need for soldering or external power.

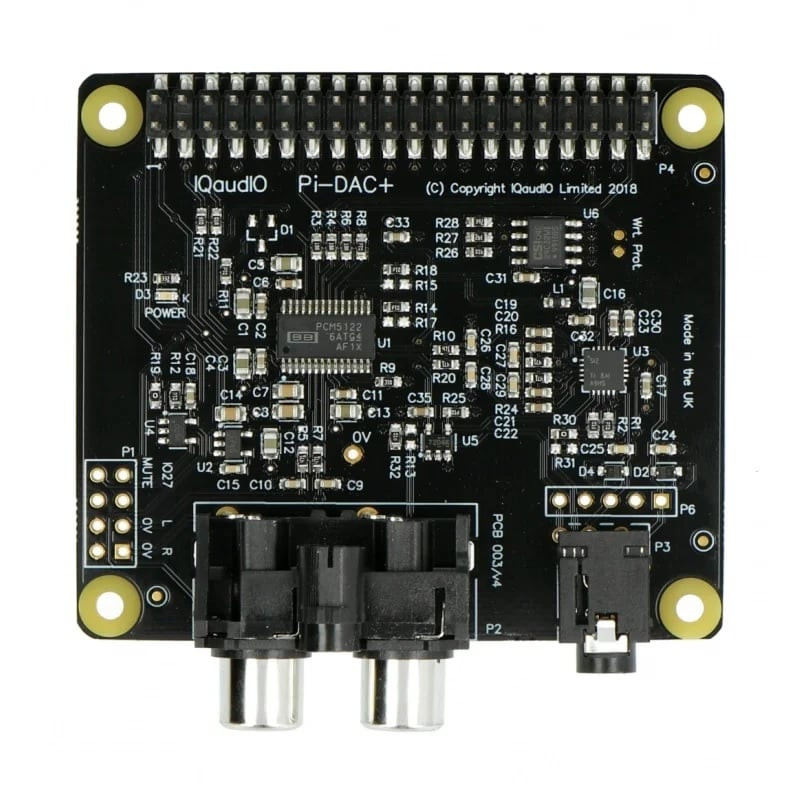

P1: Analogue out (0-2V RMS). Carries GPIO27, MUTE signal (headphone detect), left and right audio, and left and right ground.
P6: Headphone socket signals. Pin 1: LEFT, pin 2: GROUND, pin 3: RIGHT, pin 4: GROUND, pin 5: DETECT.
Features:
- Standard 40-pin header (compatible with any 40-pin Raspberry Pi)
- PCM5122 DAC
- 24-bit depth 192kHz (Full HD) audio
- Dedicated headphone amplifier
- Phono RCA output
- Powered by the Raspberry Pi PSU
- Onboard EEPROM for auto-configuration
- Power LED
- No soldering required
- Compatible with Volumio, Rune, Max2Play, MoodeAudio
Package Includes:
1 x Raspberry PI IQaudio DAC+
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2240.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Raspberry PI IQaudio DAC+
- Product Code: EC-25762
- Availability: 10
-
Rs.1899.00
- (Excluding 18% GST)
