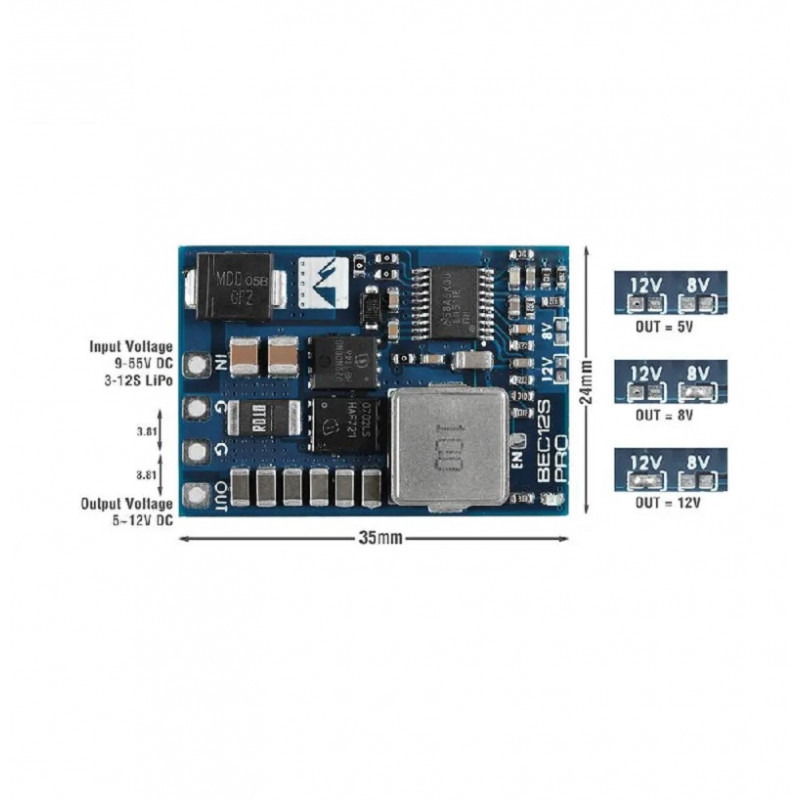

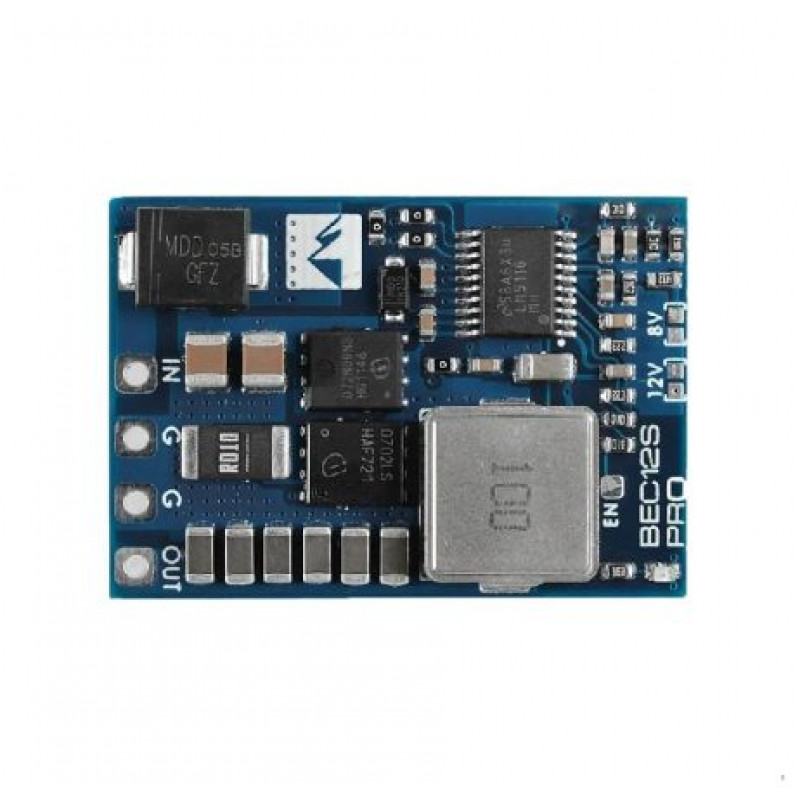

TheMATEKSYS 12S Pro BECfeatures a wide9-55VOperating Input Range, 3x Output Voltage Options 5V/8V/12V, and Supports continuous output current of up to 5A, a peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery, and much more.
Features:
- Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
- Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Supports continuous output current of up to 5A, peak current of 9A
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Size & Weight: 35 x 24 x 5.5mm, 5g
- No reverse-input voltage protection
- Standby current: 5~10mA
- Pins distance: 3.81mm
- Packing: 1pc/package
- Thermal Shutdown
Package Includes:
1 x RTS MATEKSYS 12S Pro BEC 9-55V To 5V/8V/12V 5A
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
RTS MATEKSYS 12S Pro BEC 9-55V To 5V/8V/12V 5A
- Product Code: EC-28482
- Availability: 3
-
Rs.1772.00
- (Excluding 18% GST)
