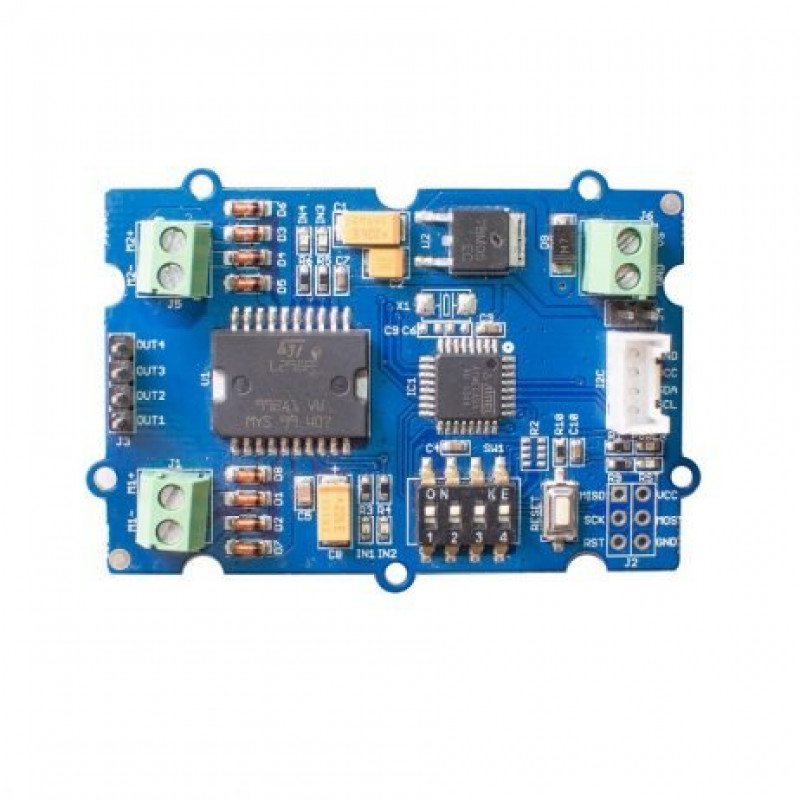

This Motor Driver uses the normal Motor driver chip L298. In order to use the Grove interface to let the MCU like Arduino or Seeeduino control the Motor Driver, the I2C Grove interface is designed. Besides, there is also an ATmega8L chip on board to enable the I2C connection. As a matter of fact, this motor driver is perfectly compatible with Arduino.
It is a dual-channel motor driver to connect with the step motor which means you can control two motors at a time.
Applications:
- DC motor control
- Stepper motor control
Features:
- Onboard MCU
- CW/CCW/short brake/stop function modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- ISP interface to flash the onboard Atmega8A MCU
Package Includes:
1 x SeeedStudio Grove I2C Motor Driver Module
1 x Grove cable
Specifications :-
| MCU Operating Voltage | 5V |
| Motor Supply Voltage | 6-15V |
| Output Current | 1A |
| Logic Interface | I2C |

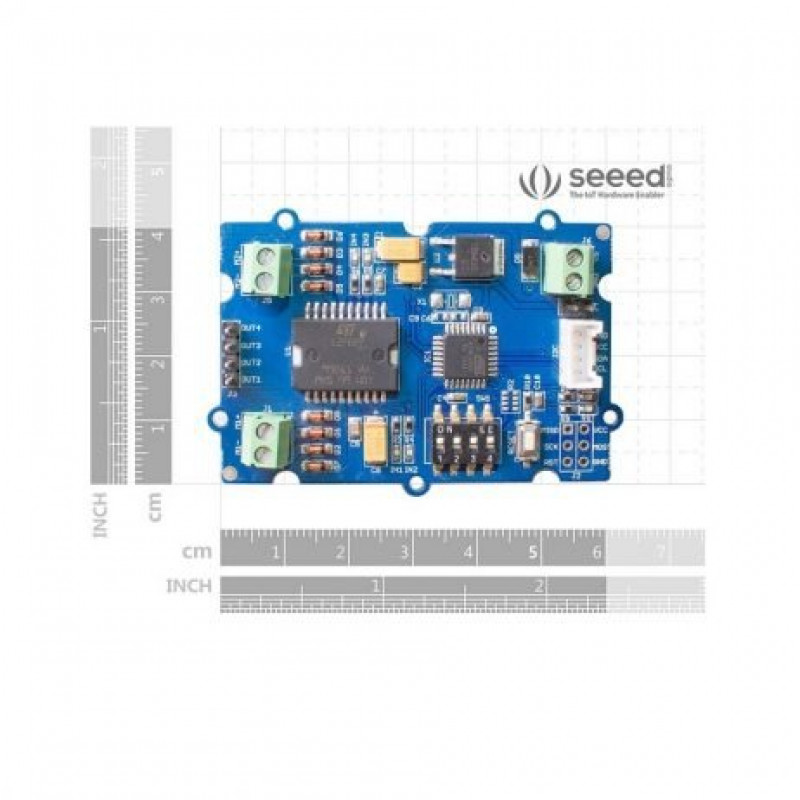

| Length (mm) | 135 |
| Width (mm) | 85 |
| Height (mm) | 13 |
| Weight (gm) | 22 |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1646.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

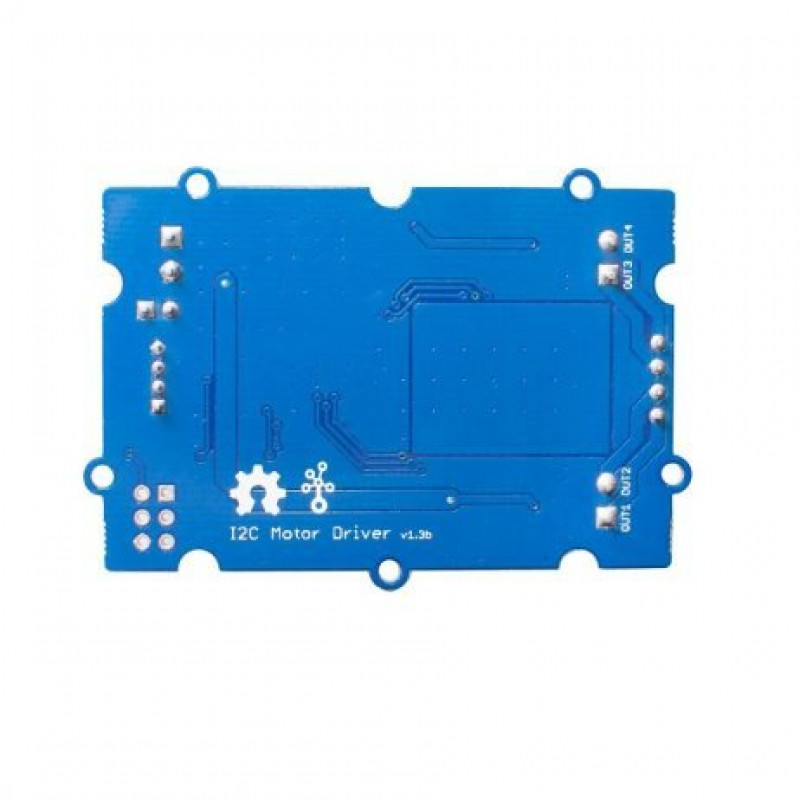

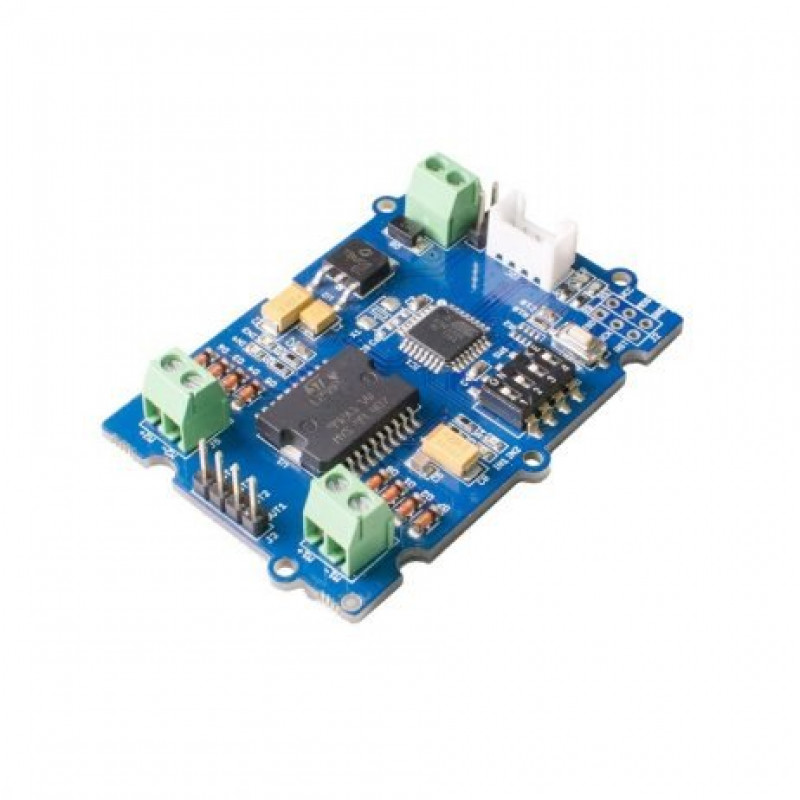

SeeedStudio Grove I2C Motor Driver Module
- Product Code: EC-5191
- Availability: 31
-
Rs.1550.00
- (Excluding 18% GST)
