The LED Strip Driver with 4-pin Grove interface provides easy connectivity to your standard Arduino device or Seeed Stalker. It can help you control the luminance of a single-color LED strip, as well as the color and the luminance of an RGB LED strip through Arduino or Seeeduino.

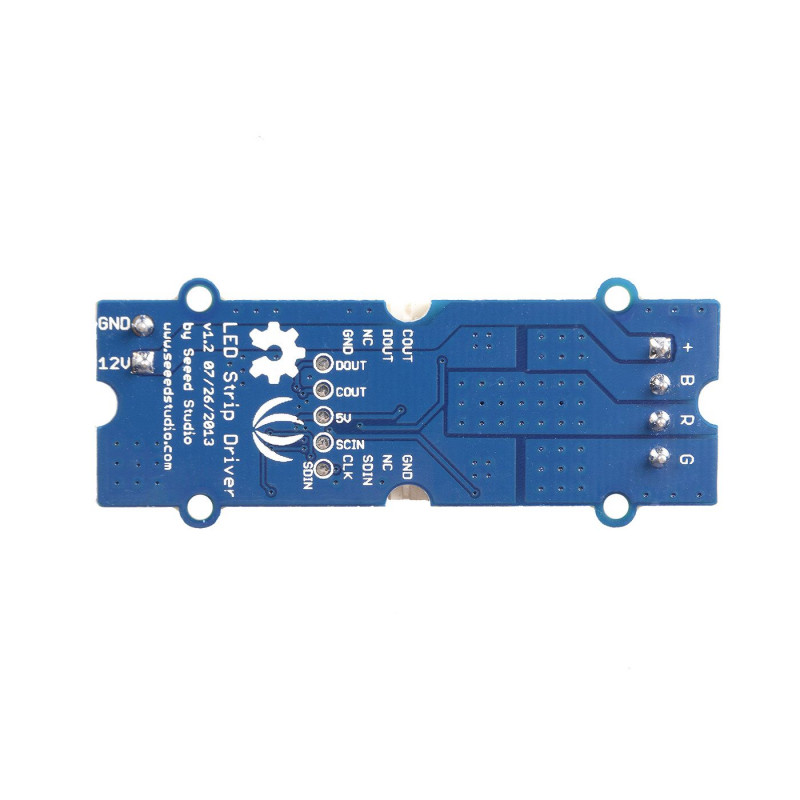

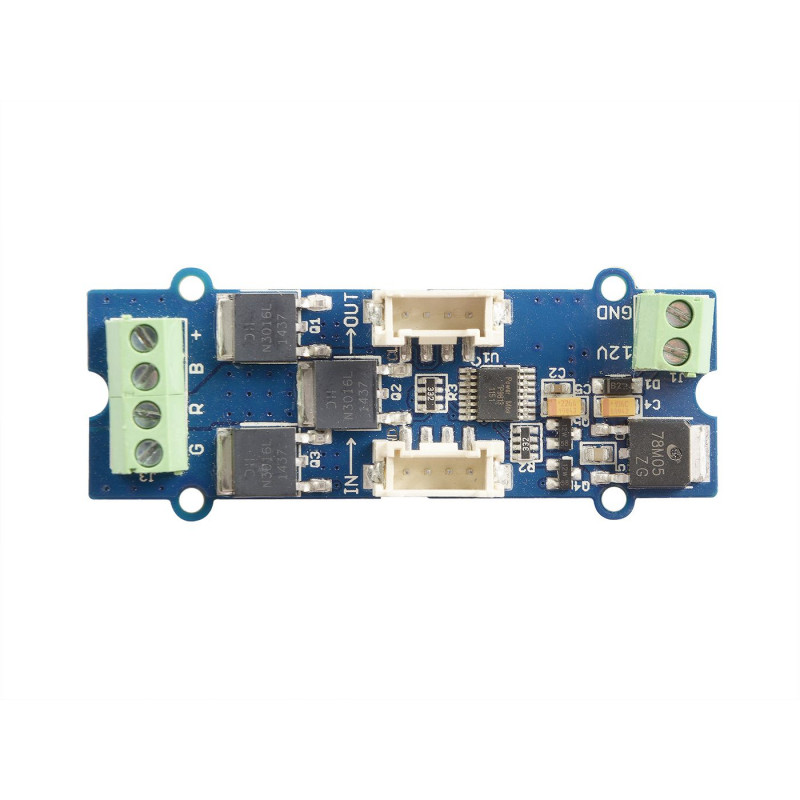

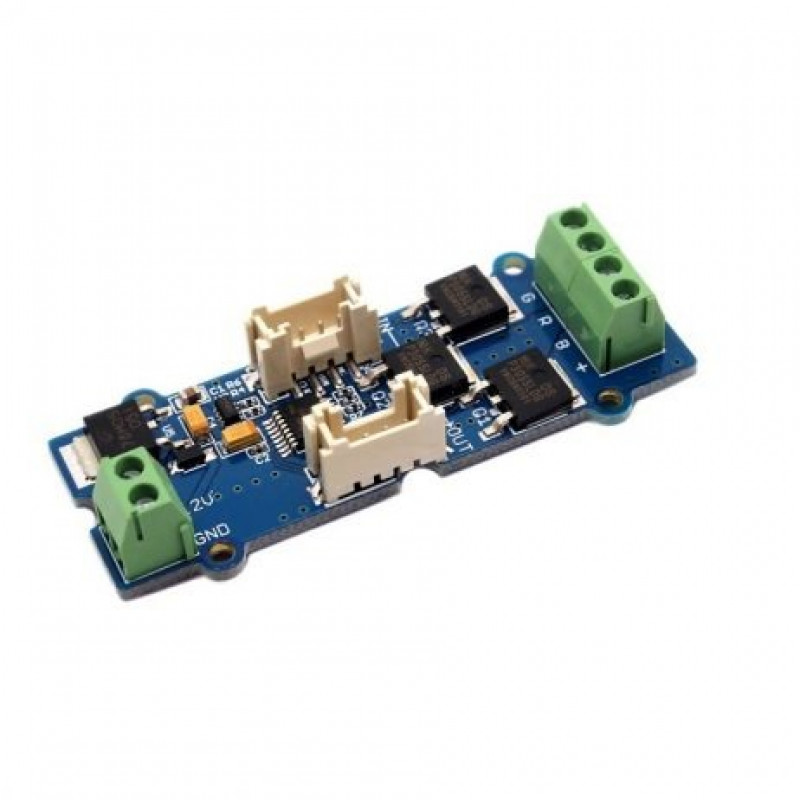

It has 2 terminals and 2 Grove interfaces. The power for the LED strip comes in through the 2-pin terminal. And the LED controlling voltages output through the 4-pin terminal. The 2 Grove interfaces are respectively screen-printed IN (for controlling data input) and OUT (for controlling data shared with the next strip driver).
It can drive an LED strip 1 to 2 meters long with 9 V, while 1 to 5 meters long with 12 V. The driver in conjunction with the colorful LED strips can add a wonderful effect to indoor or outdoor usages.
Features:
- Grove compatible interface
- Can be cascaded for a larger display
- Best results achieved with LED strips 5 meters long or shorter
- Outputs PWM signals
- 256 grey levels are adjustable via programming
- Arduino and MEGA compatible
- Screw Terminals (power input and control signal output interface)
Package Includes :
1 x SeeedStudio Grove LED Strip Driver
1 x JST cable
Specifications :-
| Operating Voltage (VDC) | 9-12 |
| LED Glow Color | RGB (Red-Green-Blue) |
| Color | White |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1131.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove LED Strip Driver Module
- Product Code: EC-8049
- Availability: 38
-
Rs.1066.00
- (Excluding 18% GST)
