An Oxidation Reduction Potential (ORP) Sensor measures the activity of oxidizers and reducers in an aqueous solution, it measures the ability of a lake or river to cleanse itself or break down waste products. The Grove ORP sensor works for both 3.3V and 5V system, the Grove connector and BNC probe interface make it easy to use and very suitable for Arduino and Raspberry Pi project
Features:
- Work efficiently under 3.3V and 5V.
- Support with both Arduino and Rasberry Pi .
- Compact size for easy deployment.

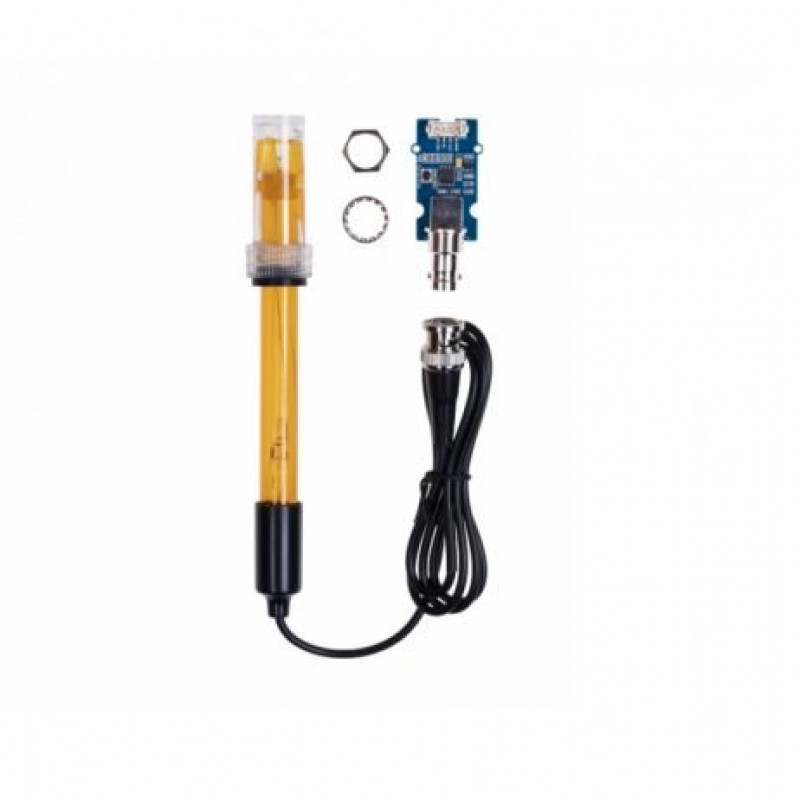

Package Includes:
1 x ORP prober
1 x Grove cable

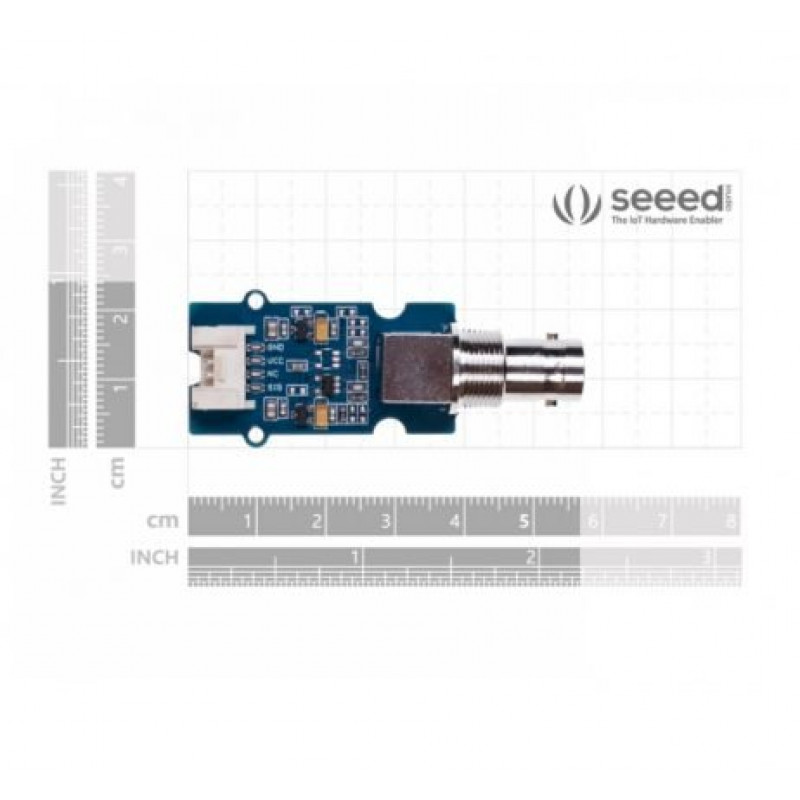

1 x Driver board
Specifications :-
| Electrode potential | 245-270mv(15-30) |
| Range Reference electrode internal resistance | 10k |
| Resolution Electrode stability | 8mv/24 |
| Indicator electrode | Good continuity |
| Work voltage | 3.3V/5V |
| Work temperature | 5-70 |
| Shipment Weight | 0.2 kg |
| Shipment Dimensions | 23 cm |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5072.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove ORP Sensor Kit (501Z)
- Product Code: EC-5170
- Availability: 18
-
Rs.4777.00
- (Excluding 18% GST)
