Do you wanna have fun with numerous light effects? What about a colorful LED strip? Itll be awesome! Thats why we have Grove RGB LED Stick (10 WS2813 Mini) v1.0 for you.

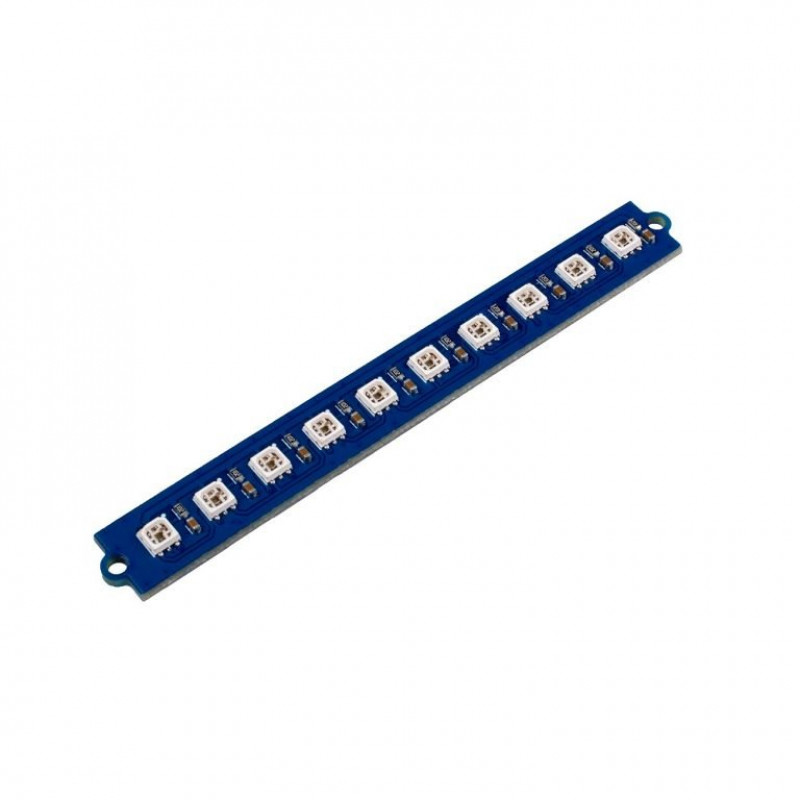

This strip is an integration of 10 full-color RGB LEDs with only one signal pin to control all 10 LEDs easily. How easy it is with just one pin! Whats more, the WS2813 Support Signal Break-point Continuous Transmission. It means that you can continue to use other LEDs with one led be broken. Also, all the LEDs are WS2813 Mini, which is an intelligent control and high cost-effective LED. The stick comes in 3 dimensions as shown in the following figure.

You should take a look in the VIDEOS section, where you will see Sparkling LED Pig, a circular color effect project done using Grove RGB LED Ring. Similarly, you can use this RGB LED Stick to create hundreds and thousands of light effects too. Furthermore, you can also make a Christmas light show by decorating your Christmas tree. Using these LED sticks, you can illuminate various things such as your toys, photo frames, wall paintings, etc. In short,with these sticks, you can use your imaginative and creative ideas to come true!

For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface Getting Started and Introduction to Grove before using the product. This stick is suitable for not only Grove users but also all electronics enthusiasts. So, why wait? Buy now!

Useful Links:

Tutorial

Features:

1. 3535 LED components integrated in WS2813B IC
2. Intelligent reverse-connection protection
3. Refresh frequency: up to 2KHz
4. Color: Red, green, and blue
5. Dual-signal wires version, signal break-point continuous transmission
6. Serial cascade interface, data receiving and decoding depend on just one signal line
7. The gray levels of each pixel are of 256, which achieves 256 x 256 x 256 = 16777216 full-color display

Package Includes:

1 x Grove RGB LED Stick (10 WS2813 Mini)

Specifications :-

Operating Voltage (VDC)	3.3 ~ 5
Operating Temperature Range (C)	-25 to 85
Storage condition ()	-40 to 105
RGB Channel Constant Current	16 mA
Length (mm)	83
Width (mm)	10
Height (mm)	10
Mounting hole diameter (mm)	2
Weight (gm)	4
