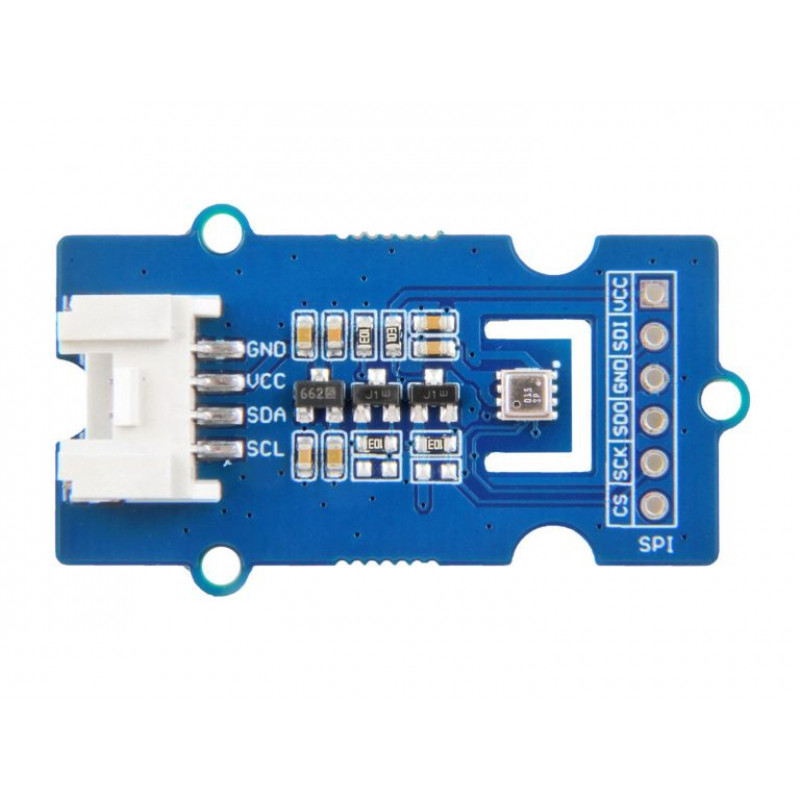

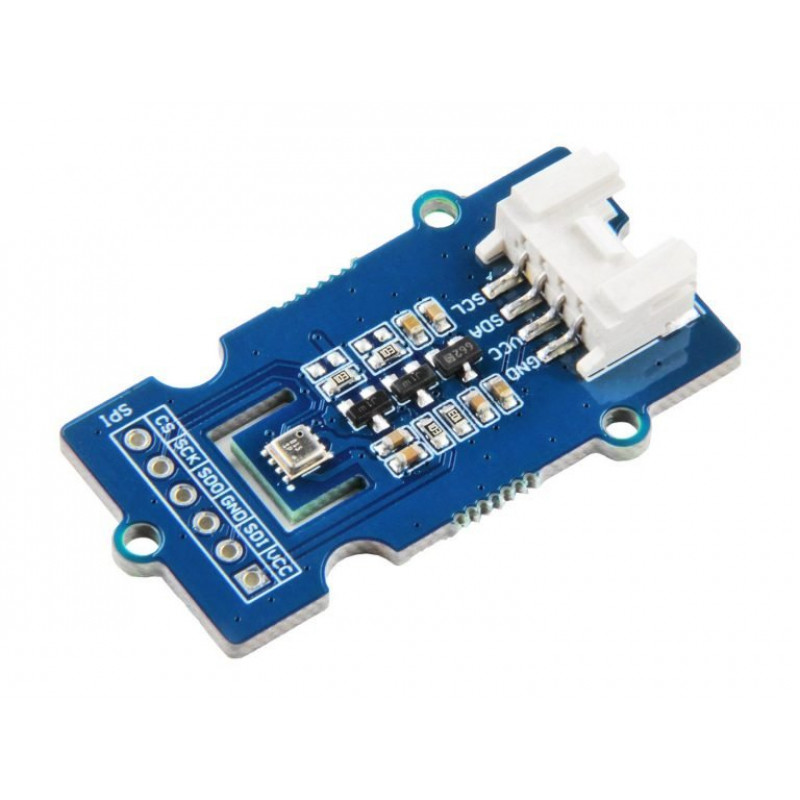

The SeeedStudio Grove Temperature, Humidity & Pressure Gas Sensor(BME680) Module is not just a simple Arduino temperature sensor or barometer sensor but is a multiple function sensor that can measure temperature, pressure, humidity, and gas at the same time. Based on the BME680 module, it can provide you with rich environmental parameters at low power consumption and a wide measurement range. It integrates the 4-in-1 function on such a small module and will be very beneficial to apply on GPS devices or IoT projects such as your own Arduino weather station or weather forecast system.
Features:
- 4-in-1 multiple measurements:Temperature, Humidity, Pressure, Gas
- Low power consumption
- Wide measurement range
- Easy project operation: Grove compatible interface
- Optional output: Individual humidity, pressure and gas sensors can be independently enabled/disabled
Application:
- Indoor air quality monitor
- Home automation and control
- IoT device
- Barometer
- Weather forecast system using Arduino
- GPS enhancement(e.g. time-to-first-fix improvement, dead reckoning, slope detection)
- Indoor navigation(change of floor detection, elevator detection)
- Vertical velocity indication(rise/sink speed)
Useful Links
Package Includes:

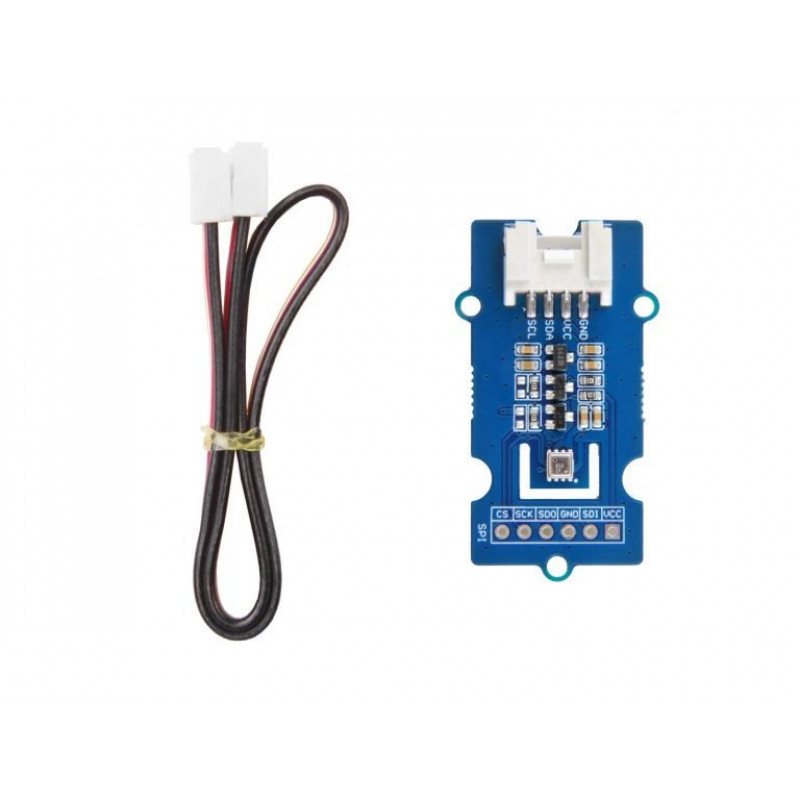

1 x Grove Temperature, Humidity, Pressure, and Gas Sensor (BME680) Module
1 x Grove cable
Specifications :-
| Operating Voltage | 3.3V/5V |
| Operating Range | -40~+85?; 0-100% r.H.; 300-1100hPa |
| Humidity Absolute Accuracy | ? 3%r.H. (20-80 %r.H.,25?) |
| Humidity Resolution | 0.008 %r.H. |
| Pressure Absolute Accuracy | ? 0.6 hPa (300-1100 hPa, 0-65?) |
| Pressure Resolution | 0.18 Pa |
| Temperature Absolute Accuracy | ? 0.5? (25?, At,25) ? 1? (0-65?, At, full) |
| Temperature Resolution | 0.01? |
| Digital Interface | I2C(up to 3.4MHZ) SPI(3 and 4 wire, up to 10MHz) |

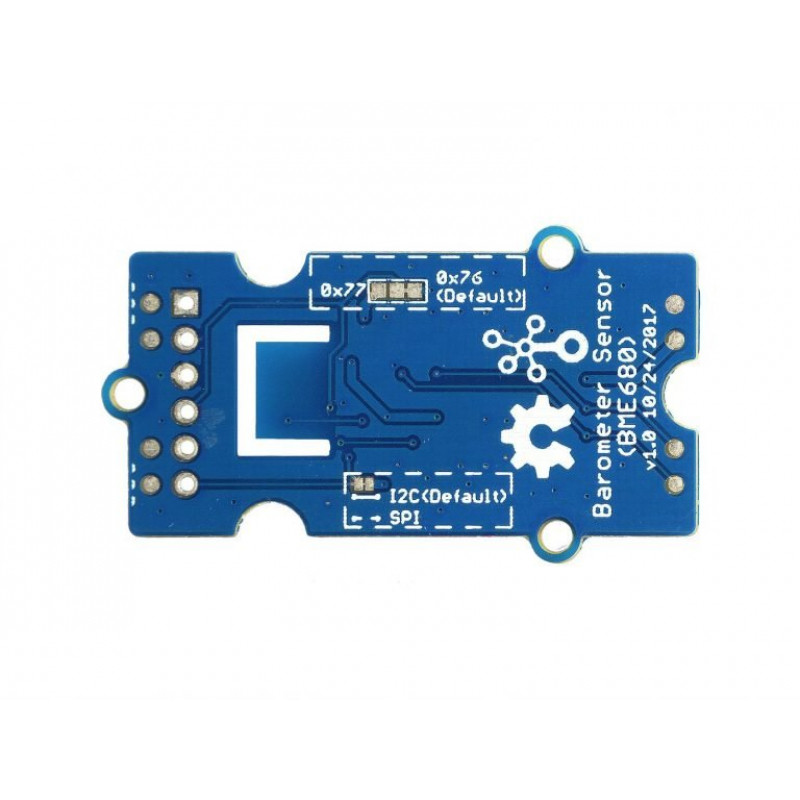

| I2C Address | 0x76(default) 0x77(optional) |

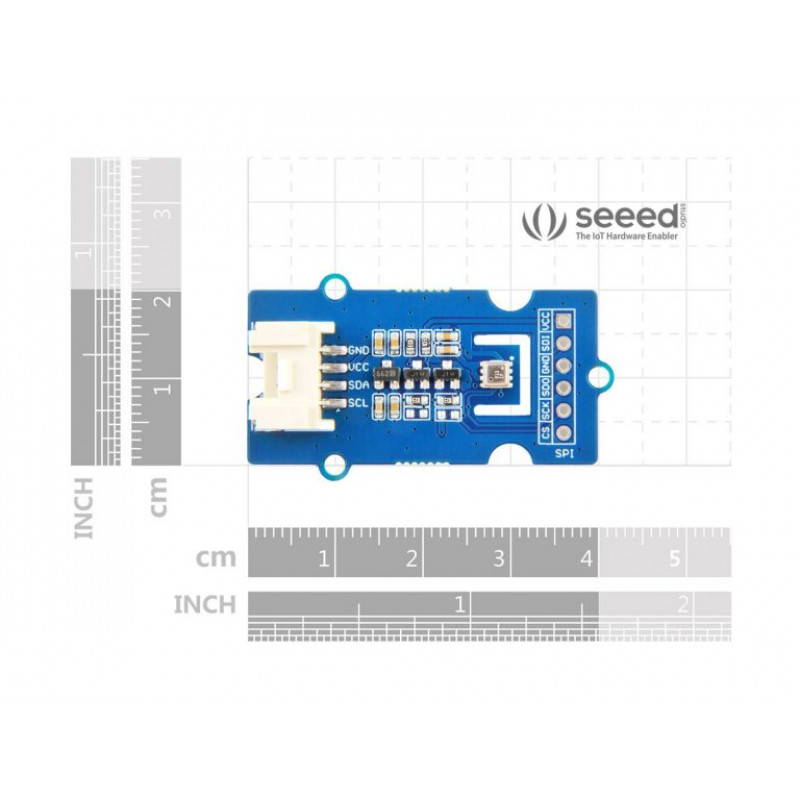

| Length (mm) | 23 |
| Width (mm) | 42 |
| Height (mm) | 7 |
| Mounting hole diameter (mm) | 2 |
| Weight (gm) | 9 |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2358.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove Temperature Humidity Pressure and Gas Sensor Module
- Product Code: EC-5150
- Availability: 21
-
Rs.2277.00
- (Excluding 18% GST)
