The SG3525AP is a regulating pulse width Modulator IC designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip 5.1V reference is trimmed to 1% and the input common-mode range of the error amplifier includes the reference voltage eliminating external resistors.
Features:
- Separate oscillator sync terminal
- Adjustable dead-time control
- Internal soft-start
- Pulse-by-pulse shutdown
- Input undervoltage lockout with hysteresis
- Latching PWM to prevent multiple pulses
- Dual source/sink output drivers
Package Includes:

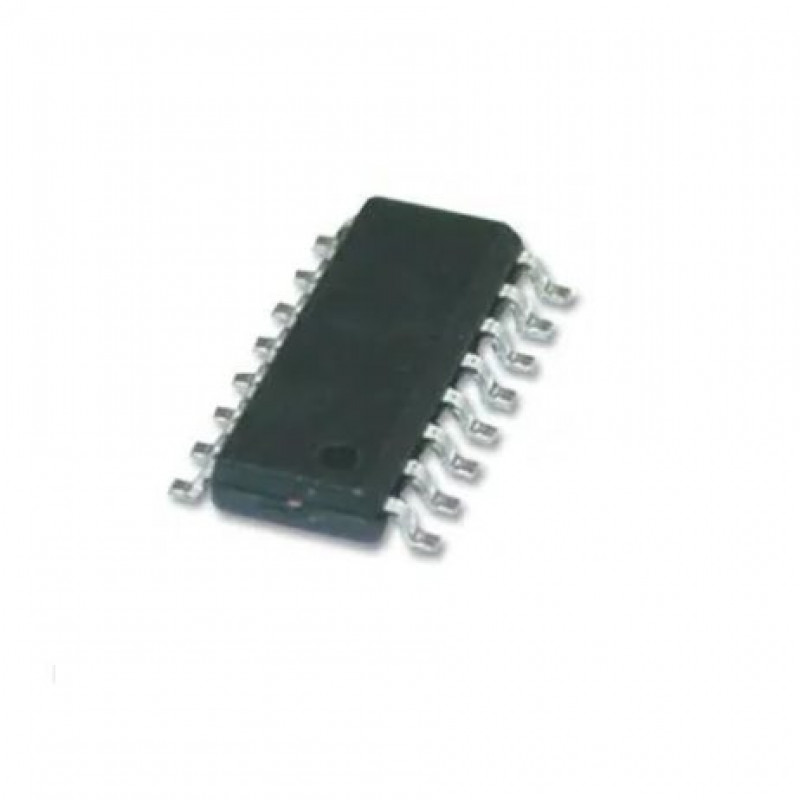

1 x SG3525AP STMICROELECTRONICS PWM Controller, 35V-8V supply, 500 kHz, 500mA out, NSOIC-16
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SG3525AP STMICROELECTRONICS PWM Controller, 35V-8V supply, 500 kHz, 500mA out, NSOIC-16
- Product Code: EC-18635
- Availability: 19
-
Rs.57.00
- (Excluding 18% GST)
