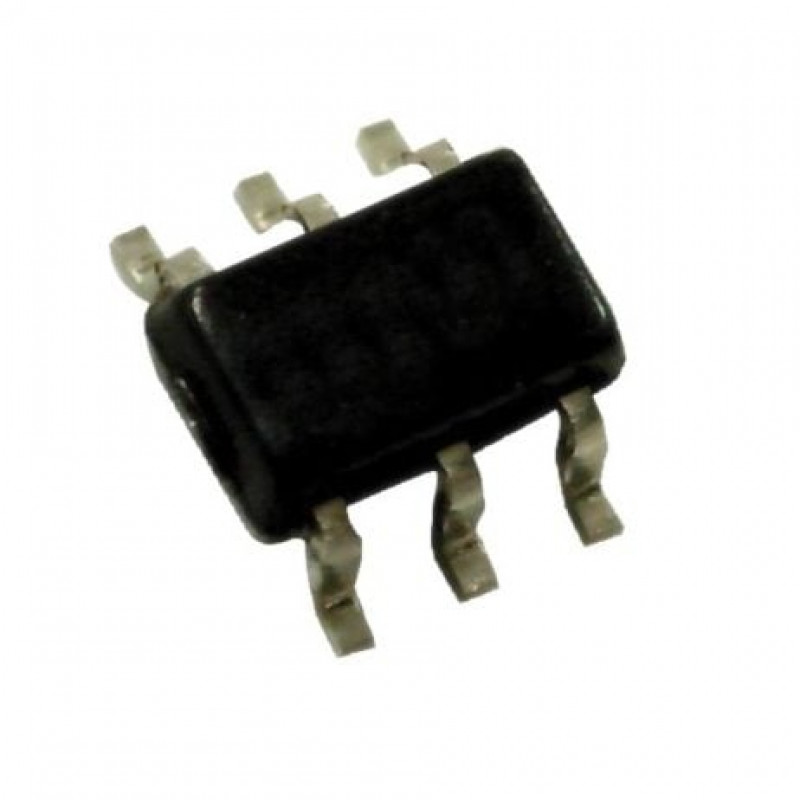

This is SN74LVC2G04DBVR TEXAS INSTRUMENTS Logic IC, Inverter, Dual, 1 Inputs, 6 Pins, SOT-23, 74LVC2G04 IC. The SN74LVC2G04DBVR is a dual Inverter designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A\. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications:
Communications & Networking, Automation & Process Control, Aerospace, Defence, Military, Motor Drive & Control, Signal Processing, Imaging, Video & Vision
Features:
- Supports 5V VCC operation
- Inputs accept voltages to 5.5V
- Maximum tpd of 4.1ns at 3.3V
- 10A Maximum ICC low power consumption
- 24mA Output drive at 3.3V
- Ioff supports partial-power-down mode operation
- Latch-up performance exceeds 100mA per JESD 78, Class II
- ESD protection exceeds JESD 22
- Green product and no Sb/Br
Package Includes:
1 x SN74LVC2G04DBVR TEXAS INSTRUMENTS Logic IC, Inverter, Dual, 1 Inputs, 6 Pins, SOT-23, 74LVC2G04
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SN74LVC2G04DBVR TEXAS INSTRUMENTS Logic IC, Inverter, Dual, 1 Inputs, 6 Pins, SOT-23, 74LVC2G04
- Product Code: EC-18918
- Availability: 8
-
Rs.17.00
- (Excluding 18% GST)
