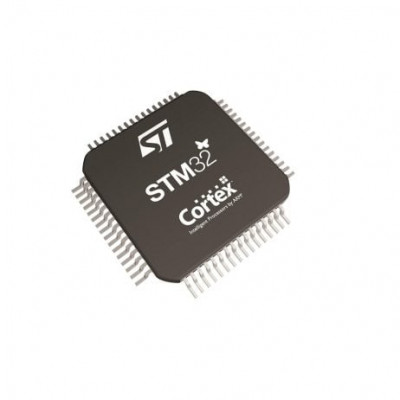

STM32F446RET6 is a high-performance ARM-based 32-bit microcontroller. The Cortex-M4 core features an RISC core operating at a frequency of up to 180MHz, floating point unit (FPU) single precision supporting all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security. It offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. These features make the microcontroller suitable for a wide range of applications, namely motor drive and control, medical equipment, industrial (PLC, inverters, circuit breakers), printers and scanners, alarm systems, video intercom, and HVAC and home audio appliances.

Note: For more technical details go through Datasheet in the attachment section.

Features:

1. LCD parallel interface, 8080/6800 modes
2. Clock, reset, and supply management (1.7V to 3.6V application supply and I/Os)
3. Low power: sleep, stop, and standby modes
4. Up to 17 timers: 2x watchdog, 1x SysTick timer, up to twelve 16bit and two 32bit timers up to 180MHz
5. 8 to 14bit parallel camera interface up to 54Mbytes/s and 96bit unique ID
6. CRC calculation unit and RTC: subsecond accuracy, hardware calendar
7. Up to 20 communication interfaces
8. Up to 114 I/O ports with interrupt capability
9. 512Kbytes of flash memory, 128Kbytes of SRAM, dual mode QuadSPI interface
10. 64 pins LQFP package and industrial temperature range -40 to 85C

Package Includes:

1 x STM32F446RET6 STMICROELECTRONICS ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4F, 32 bit
