The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016). TheSTM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-arttechnology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separateclock source, and a clock security system.

Specifications:

Operating Frequency Max: 16MHz
Program Memory Size: 8KB
IC Case / Package: TSSOP
Device Core: STM8
MCU Series: STM8S
Supply Voltage Min: 2.95V
Operating Temperature Min: -40C
MCU Family: STM8
No. of Pins: 20Pins
ADC Resolution: 10Bit
No. of I/Os: 16I/Os
Product Range: STM8 Family STM8S Series Microcontrollers
IC Mounting: Surface Mount
Supply Voltage Max: 5.5V
RAM Memory Size: 1KB
ADC Channels: 5Channels
Interfaces: I2C, SPI, UART
Operating Temperature Max: 85C

Package Includes:

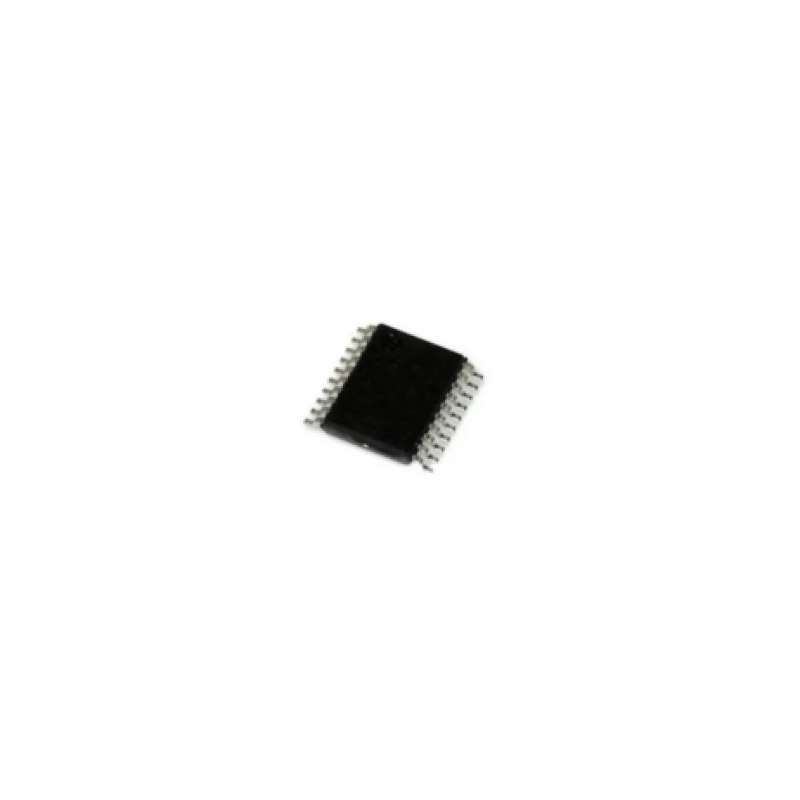

1 x STM8S003F3P6TR-STMICROELECTRONICS-8 Bit MCU, STM8 Family STM8S Series Microcontrollers, STM8, 16 MHz, 8 KB, 20 Pins, TSSOP
