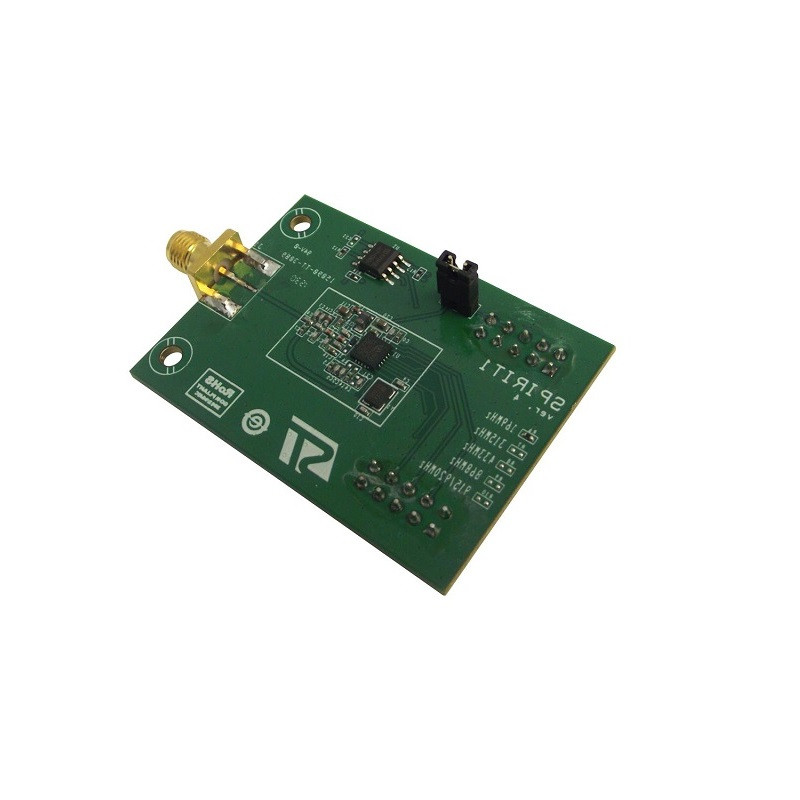

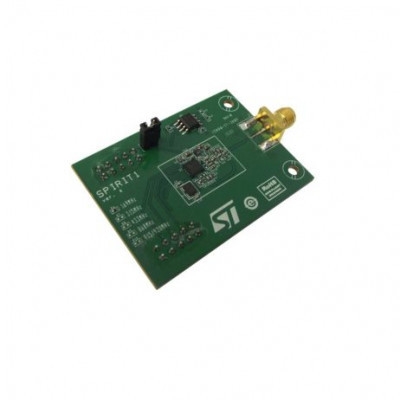

The STEVAL-IKR002V1D is a SPIRIT1 169MHz low data rate transceiver Daughter Board. The board is based on a very low-power RF transceiver intended for RF wireless applications in the sub 1GHz frequency band. Modulation schemes 2-FSK, GFSK, MSK, GMSK, OOK and ASK Suitable for wireless M-BUS applications Programmable air data rate from 1 to 500kbps Very low power consumption 9.2mA RX and 18mA TX at +11dBm Excellent receiver sensitivity (down to -123dBm).
Features:
- Low duty cycle RX/TX operation mode
- Automatic acknowledgment, retransmission and timeout protocol engine
- AES 128-bit encryption co-processor
- SPI interface for microcontroller
Package Includes:
1 x STMICROELECTRONICS Daughter Board, SPIRIT1 Low Data Rate Transceiver, 169 Mhz, Sub 1 GHz Wireless Applications
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Daughter Board, SPIRIT1 Low Data Rate Transceiver, 169 Mhz, Sub 1 GHz Wireless Applications
- Product Code: EC-21798
- Availability: 1
-
Rs.7655.00
- (Excluding 18% GST)
