The TC7660S device is a pin-compatible replacement for the industry standard 7660 charge pump voltage converter. It converts a +1.5V to +12V input to a corresponding -1.5V to -12V output using only two low-cost capacitors, eliminating inductors and their associated cost, size, and electromagnetic interference (EMI). Added features include an extended supply range to 12V, and a frequency boost pin for higher operating frequency, allowing the use of smaller external capacitors.
The onboard oscillator operates at a nominal frequency of 10 kHz. Frequency is increased to 45 kHz when pin 1 is connected to V+. Operation below 10 kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to the ground (with pin 1 open). The TC7660S is available in 8-pin PDIP and 8-pin Small Outline (SOIC) packages in commercial and extended temperature ranges.

Applications:

1. RS-232 Negative Power Supply
2. Simple Conversion of +5V to 5V Supplies
3. Voltage Multiplication VOUT = n V+
4. Negative Supplies for Data Acquisition Systems
   and Instrumentation

Features:

1. Oscillator boost from 10 kHz to 45 kHz
2. Converts +5V Logic Supply to 5V System
3. Wide Input Voltage Range: +1.5V to +12V
4. Efficient Voltage Conversion (99.9%, typical)
5. Excellent Power Efficiency (98%, typical)
6. Low Power Consumption: 80 A (typical) @ VIN = 5V
7. Improved ESD Protection (10 kV HBM)

Package Includes:

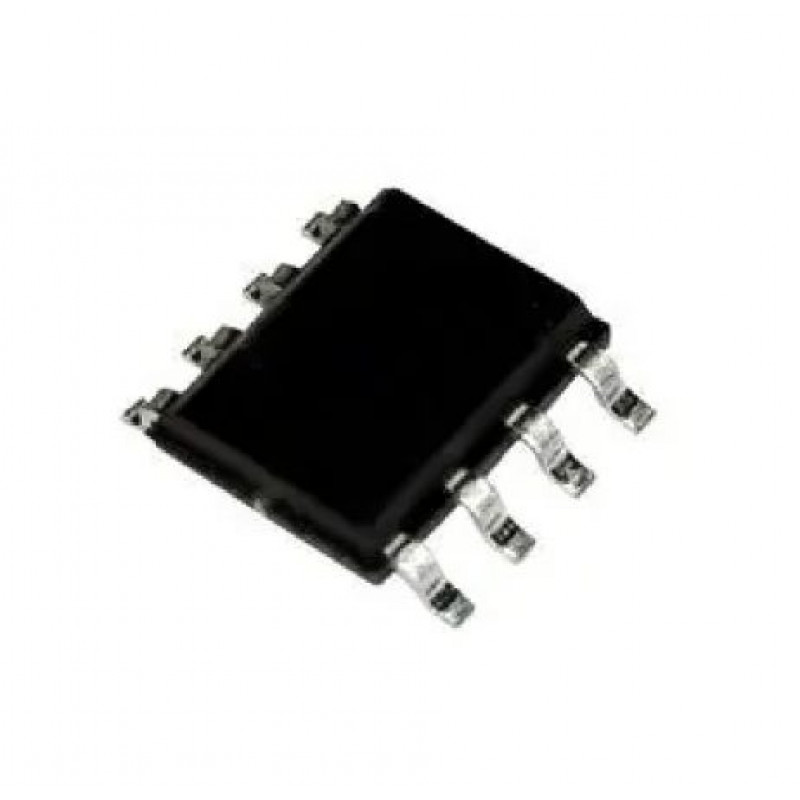

1 x TC7660SCOA-MICROCHIP-DC/DC Inductorless Adjustable Inverter, 1.5 V to 12 V in, -12 V to -1.5 V/20 mA out, SOIC-8
