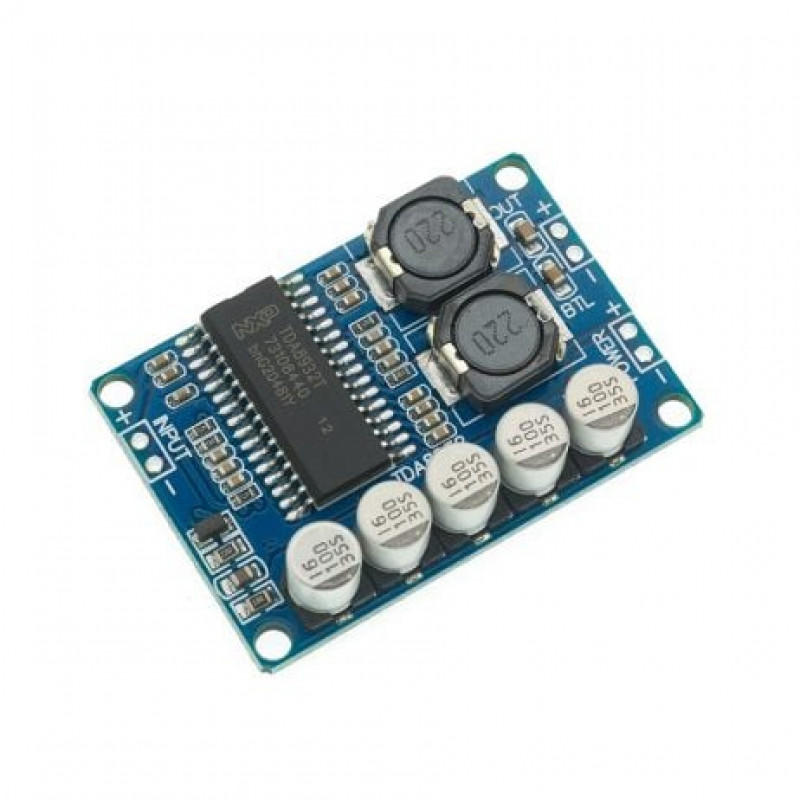

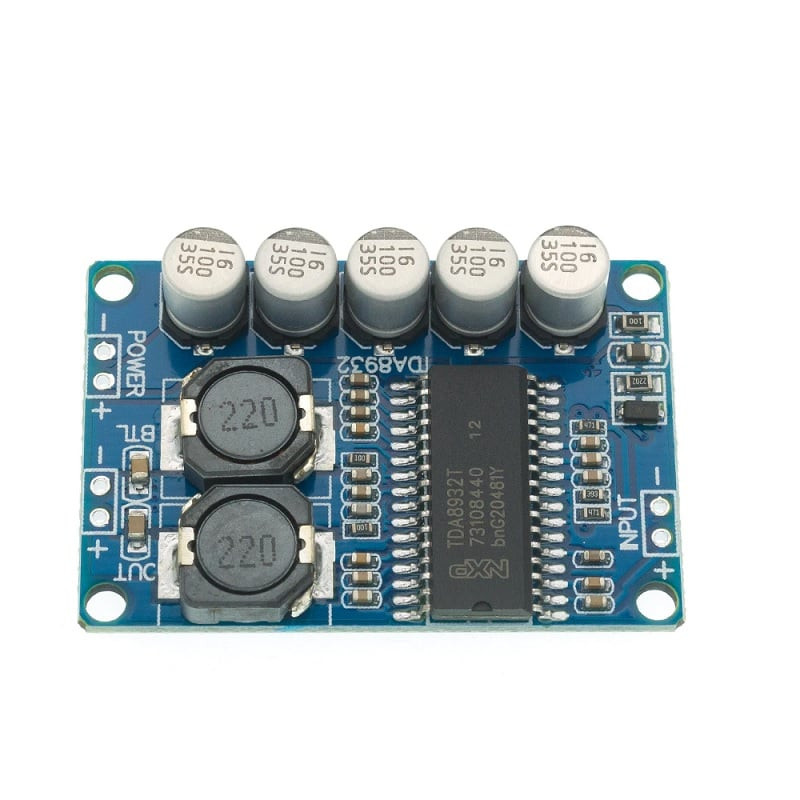

TDA8932 Digital power amplifier board 35W Mono Amplifier Module uses a high-performance digital amplifier TDA8932 chip, a small size, high efficiency, high power, good sound quality, without additional installation of the radiator, very suitable for the transformation of active speakers, electro-acoustic project implementation, product development and other audio applications.
Features:
- The board uses a high-performance digital amplifier TDA8932 chip.
- Produce good quality sound by this module.
- Mono digital audio power amplifier chip.
- High output and low power consumption.
- Suitable for the transformation of the active speakers, product development, and other audio application.
Specification:
- Module Type:TDA8932 35W
- Operating Voltage: Single DC10 ~ 30V
- Recommended Voltage: 24V
- Current: Above 2A Switching Power Supply
- Output Power:35W x 1
- Speaker Impedance:4-8 ohm, 8 ohm best
- Circuit configuration: Mono BTL Output
Package Includes:
1 x TDA8932 Digital Power Amplifier Board
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 376.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TDA8932 Digital Power Amplifier Board 35W Mono High-Power TDA8932 Low Power Consumption
- Product Code: EC-8772
- Availability: 72
-
Rs.319.00
- (Excluding 18% GST)
