THEJAS32 is an SoC based on VEGA ET1031 Microprocessor which is a small and efficient 3-stage in-order 32-bit RISC-V processor core. This SoC can be used to build robust systems in the low-power IoT domain. The peripherals that are available in THEJAS32 SoC are the Interrupt Controller, Timers, RAM, SPI, UART, I2C, PWM, ADC, and External interrupt-capable GPIOs (GPIO0-GPIO12 ).

Features:

1. VEGA ET1031 Microprocessor
2. 32-bit RISC-V ISA 3-stage in-order pipeline
3. Harvard architecture
4. High-performance multiply/divide unit
5. Low interrupt latency
6. Vectored interrupt support
7. Clock frequency up to 100MHz
8. 3.3V IO Voltage

Specifications:

1. VEGA ET1031 Microprocessor
2. 32-bit RISC-V ISA
3. Clock frequency up to 100MHz
4. IO Voltage: 3.3V
5. SRAM: 256KB
6. Boot Flash via SPI: Up to 2MB
7. Peripherals: 4*SPI, 3*12IC, 3*UART
8. LQFP Package: 128 Pin

Package Includes:

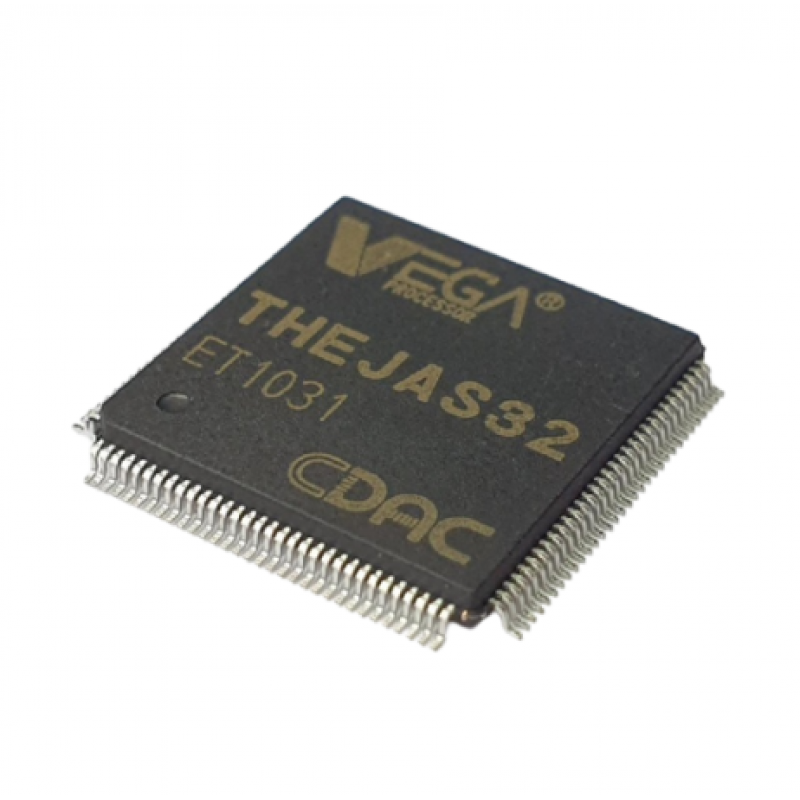

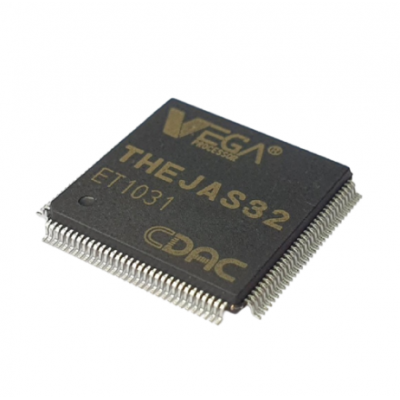

1 x THEJAS32 SoC-Based Microprocessor
