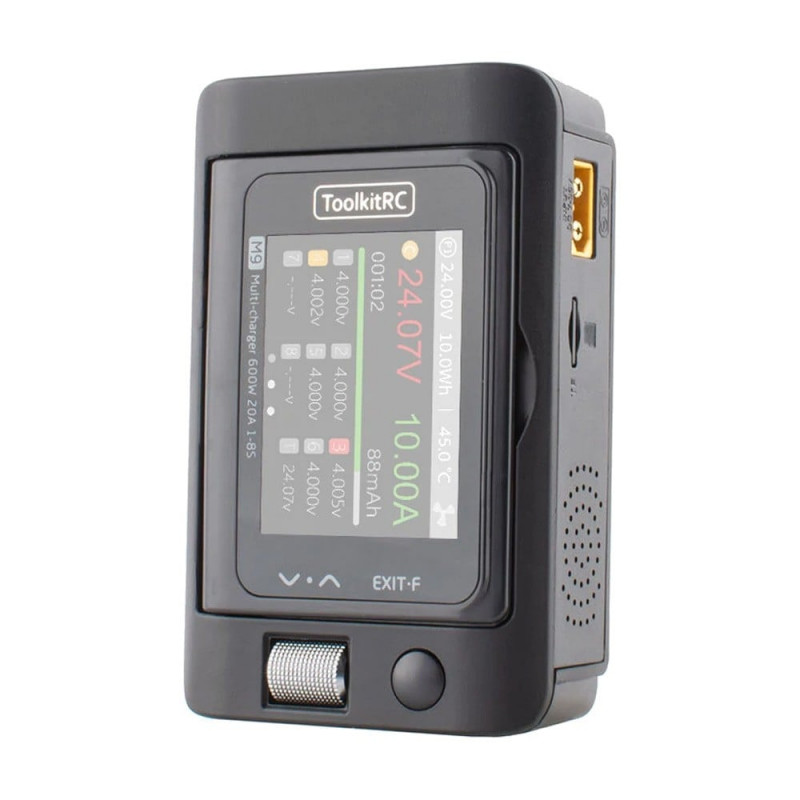

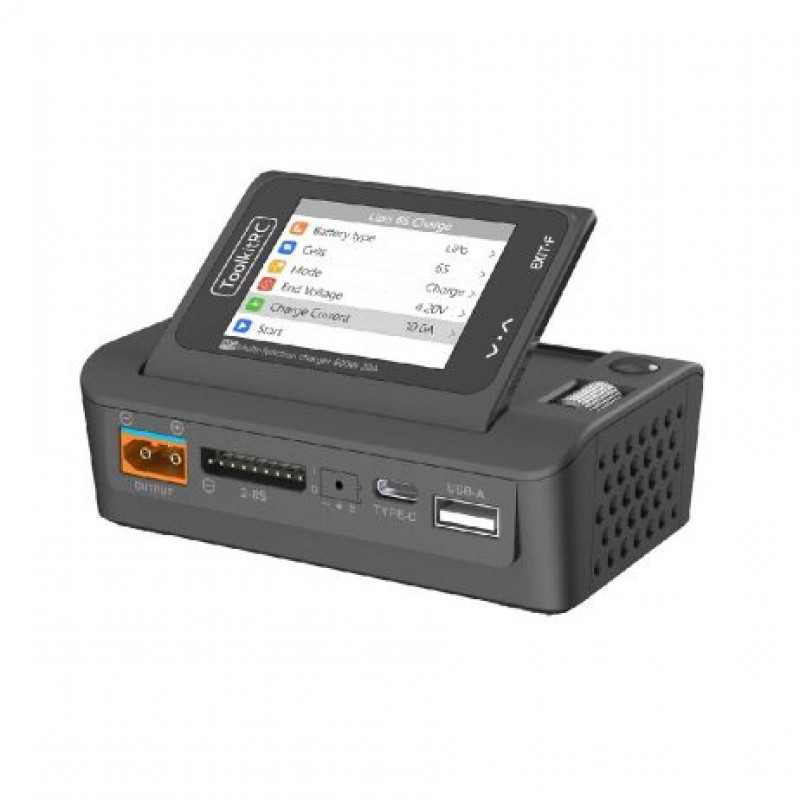

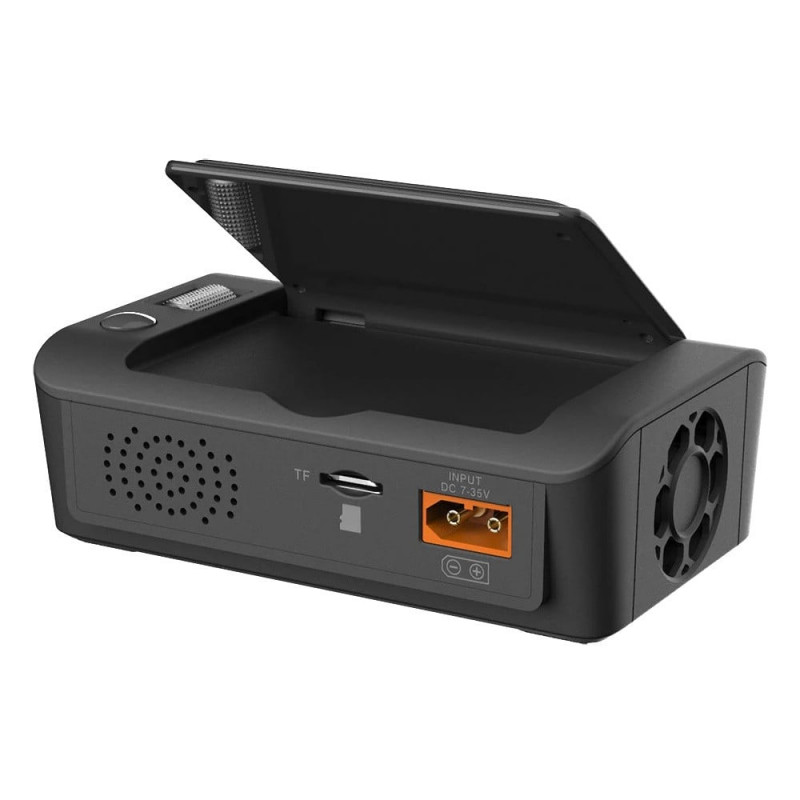

This is ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger. The acclaimed ToolkitRC M9 is a multi-function balance charger with all-in-one features.This device features 600 Watts of Power, Dual USB Fast Charging with maximum 65W USB-C/USB-A Output, an IPS Wide-Angle Color Display. This charger has a signal tester, battery meter, and wattage meter for all of your measuring needs! The integrated voice system grants an interactive experience.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Customizable Voice Alerts and Welcome Screen
2. DC Output 600W 2-8S Capable
3. 2.4 Multi-Angle Color Display
4. Dual USB Fast Charging
5. Balance Charger
6. Signal Source
7. Battery Meter
8. Signal Tester
9. Watt Meter

Specifications:

1. USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
2. Power supply: 1.0-20A@1-35V mode:CC+CV
3. Measurer:
   • SBUS: 880-2200us*16CH @20-100Hz
   • PPM: 880-2200us*8CH @20-50Hz
   • PWM: 880-2200us @20-400Hz
4. Battery Type: LiPo LiHV LiFe Lion LTO@1-8S
5. Output:
   • SBUS: 880-2200us*16CH @74Hz
   • PWM: 500-2500us @20-1000Hz
   • PPM: 880-2200us*8CH @50Hz
6. Discharging Power:
   • 0.1-20A@600W Recycle External
   • 0.1-3A@20W Normal Mode
7. Charging Power: 0.1-20A@600W
8. LCD: 2.4*IPS RGB 320*240 Pixel
9. Balance Current: [emailprotected]
10. ESC: 1-20A@1-35V MAX 600W
11. NiMh @1-20S Pb @1-10S
12. Voltage: 1.0V-5.0V@1-6S
13. Input: 7-35V@MAX35A

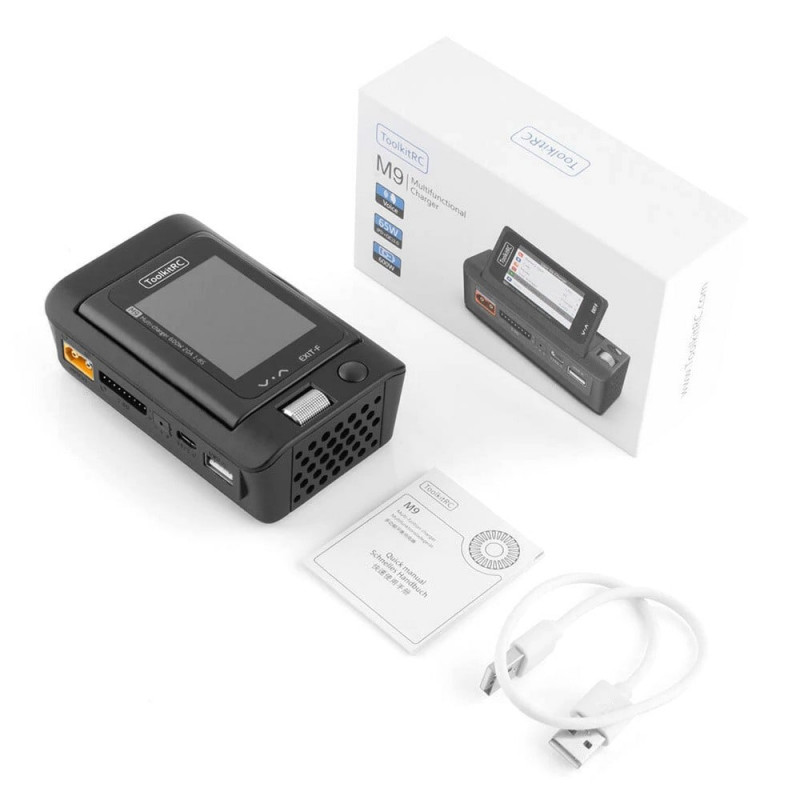

Package Includes:

1 x ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger
