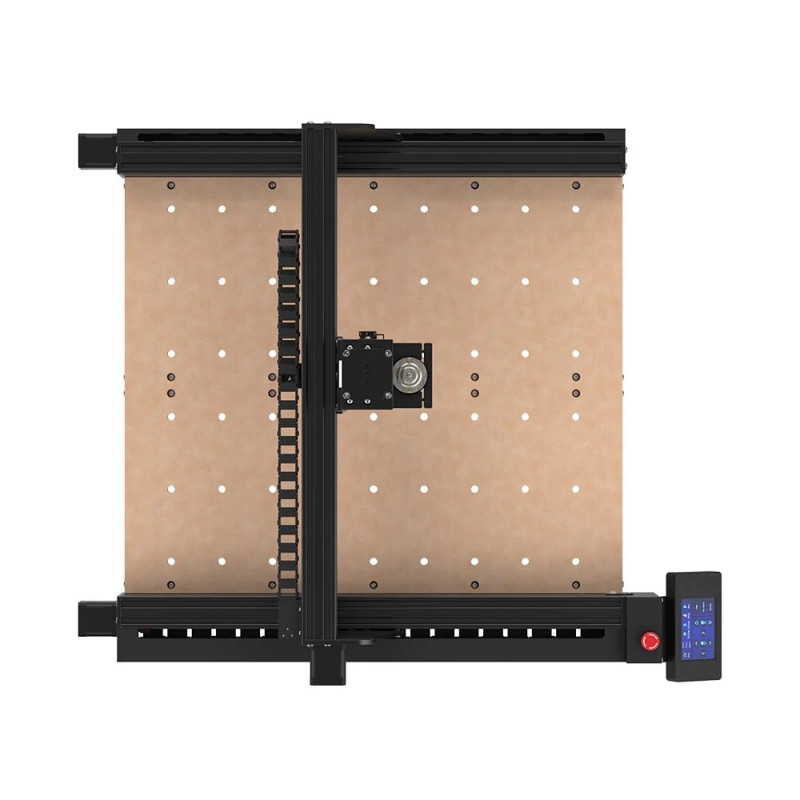

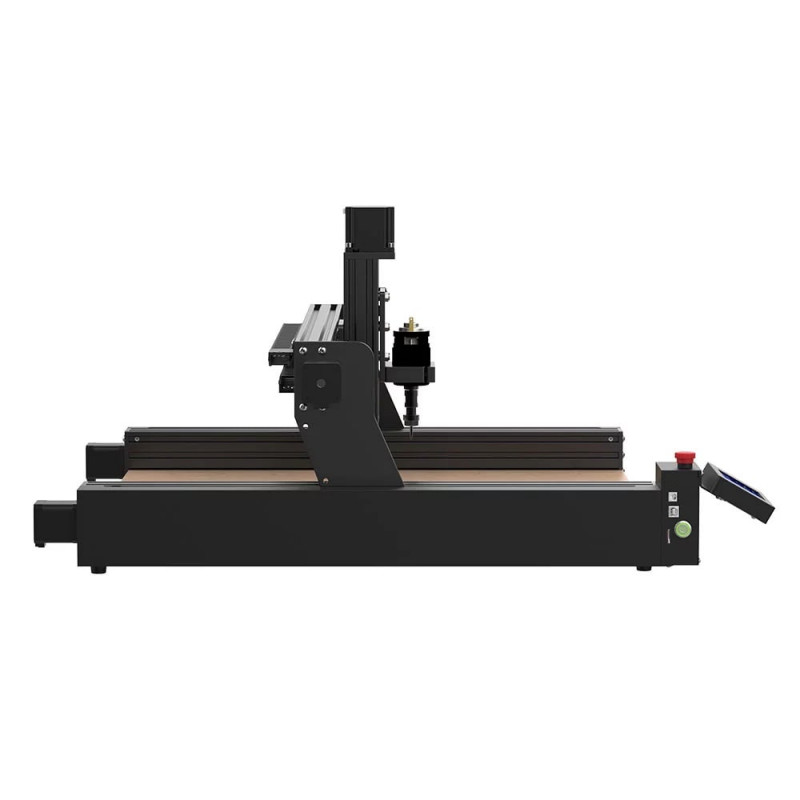

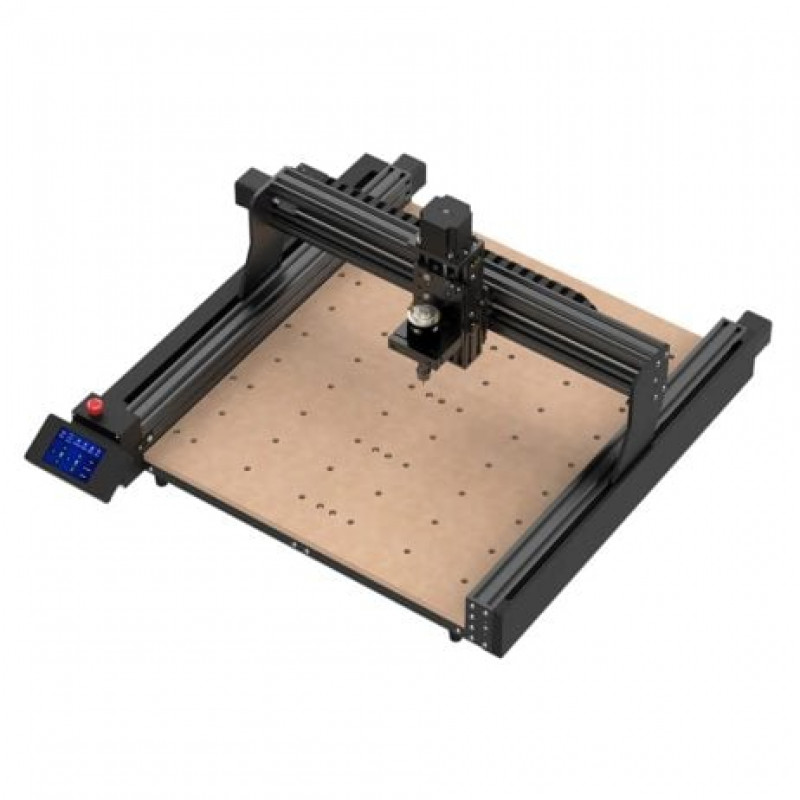

This is Two Trees -TTC 450 CNC Router Machine Kit, High Precision and Accuracy. Two Trees TTC 450 is a CNC router machine for precision cutting with a working area of 460x460x80 mm. The machine can handle 2D and 3D, 3-axis X, Y, Z movement, features a 32-bit microcontroller, a touchscreen control display, and supports WiFi network connection. The TTC 450 can also read files on an SD card for offline operation, and workpieces can be made of a variety of materials such as wood, acrylic, Plastwood, carbon fiber sheet, aluminum, metal, and various engineering plastic materials.

Note:Always prioritize safety when working with this equipment. Follow manufacturer recommendations, wear appropriate safety gear, and take precautions to ensure a safe and controlled working environment. Additionally, carefully read and follow the manufacturers guidelines and safety instructions provided in user manual for your machine. This machine is NOT preassembled. The assembly and installation instructions are given in the Manual with the product packaging.

Features:

1. Engraving size 460X460X80mm engraving area, to meet the size of the vast majority of users, is also the mainstream size similar products on the market.
2. Multi-control mode ESP32 main control, support WiFi wireless connection APP engraving, USB, offline engraving, 32-bit main chip.
3. Precision tool Z-axis screw can be raised and lowered, adjusted to the height of 80MM items, suitable for various wood thickness relief.
4. Cutting and flat processing;
5. Safety Emergency stopEmergency stop switch When an emergency occurs, people can quickly press this switch button to achieve protection measures to avoid mechanical accidents.
6. Offline safetyPower indicator light, easy to observe whether the power has been cut off in the garage or at night, to prevent accidents; Engraving variety 8000RPM torque 775 motor can carve wood, aluminum, acrylic and other materials.
7. Clamping ball cutter, milling cutter, carving knife can achieve different carving effect;
8. Convenient fixationMachining table screw processing pressing plate fixed way, easy to fix carving objects, to meet all kinds of special-shaped workpiece fixation;
9. High precisionX, Y, Z three axis by screw drive. Accurate positioning, large torque output;
10. Easy installationThree axis separate component installation, easy assembly, improve user experience;
11. Engraving compatibility is good: With different collets can adapt to the diameter of 7MM below the diameter of the tool, reserved for modification hole
12. Drive System Translation screw drive with double Y-axis system
13. Mainboard DLC32 V2.1 (ESP32-based as found inTwoTrees TTC 450)
14. Stepper Driver A4988 1.3A
15. Stepper Motors 17HS8401S, NEMA23 20mN.m
16. Running Accuracy +/-0.1mm
17. Repositioning Accuracy +/-0.0025mm
18. Support CAM Software Candle, Carveco, Artcam, Easel
19. Homing Switches X, Y, Z double limit switch + ESTOP

Package Includes:

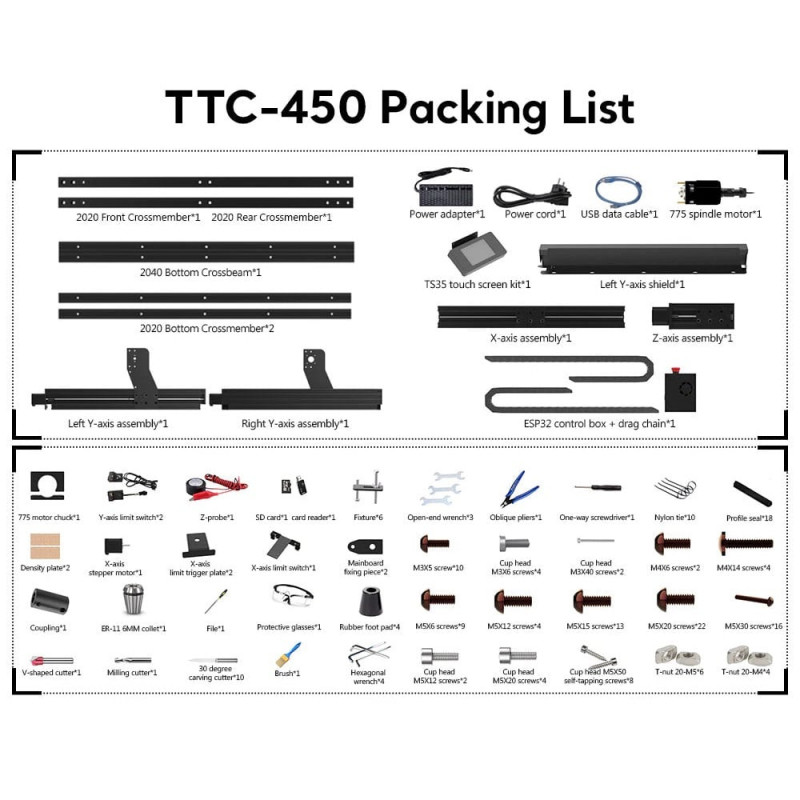

1 x Two Trees -TTC 450 CNC Router Machine, High Precision and Accuracy with packing list (as shown in image)
