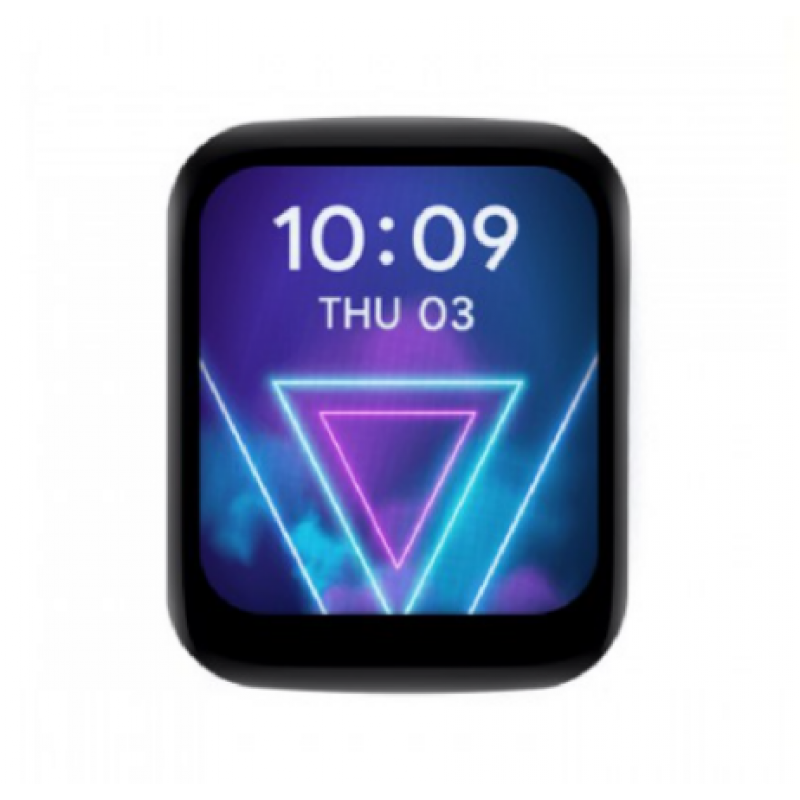

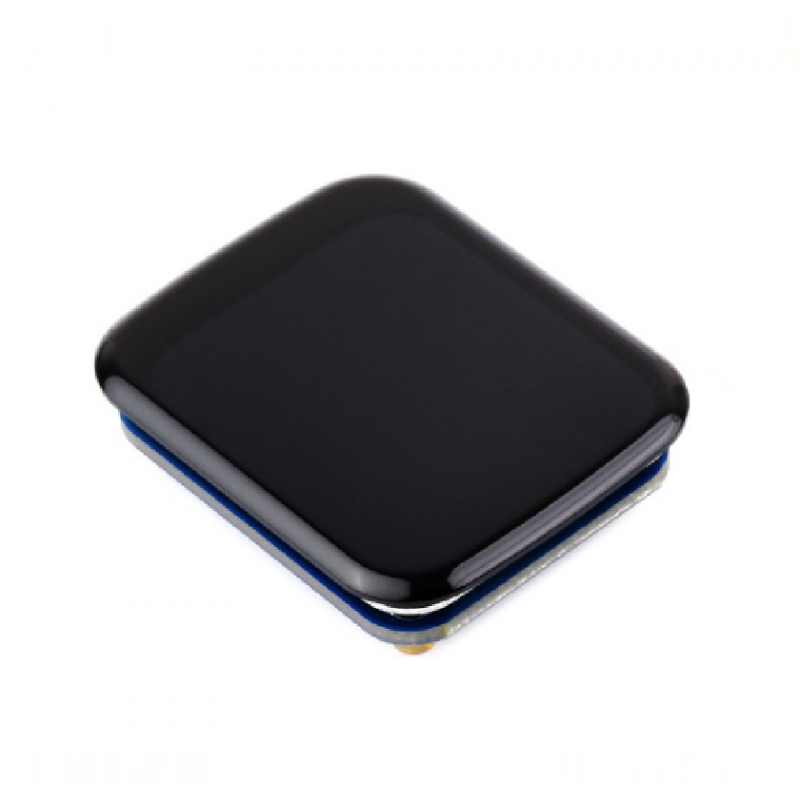

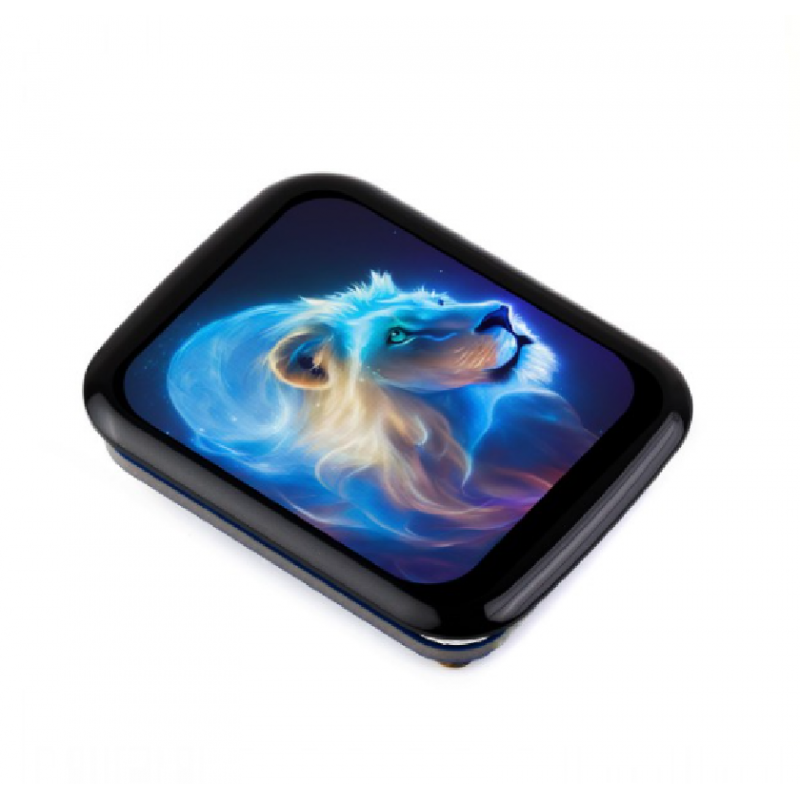

The 1.69-inch Round LCD Display Module with Touch Panel, a compact and versatile display solution designed to meet the demands of various applications. With its round form factor and integrated touch functionality, this display module offers a unique and intuitive user interface experience.
Features:
- 240280 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime

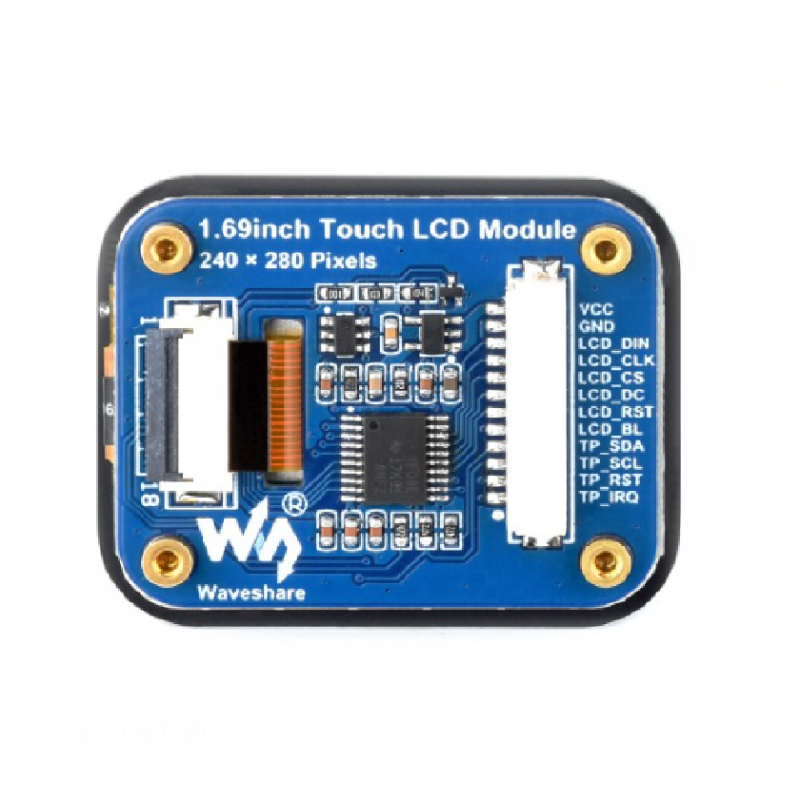

- Embedded ST7789V2 driver chip and CST816T capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32)
Specifications:
- Product: 1.69inch Round LCD Display Module
- Operating Voltage: 3.3V / 5V
- Display Driver: ST7789V2
- Display Interface: 4-wire SPI
- Display panel: IPS
- Resolution: 240 280 pixels
- Touch driver: CST816T
- Touch Interface: I2C
- Touch type: Capacitive
- Pixel size: 0.11655 0.11655mm
- Module size: 33.13 41.13mm

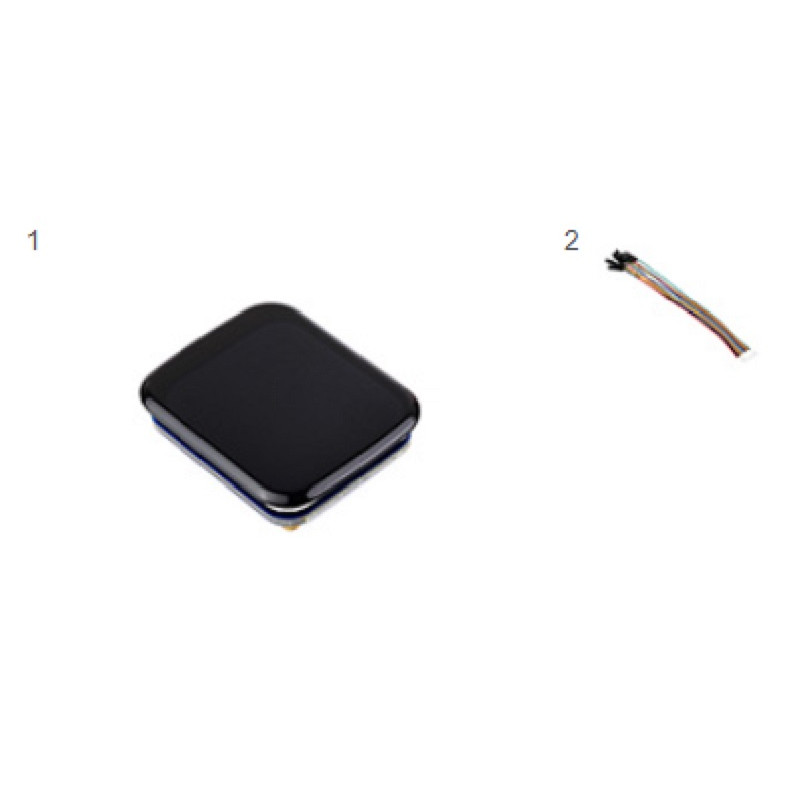

Package Includes:
1 x 1.69inch Touch LCD Module
1 x GH1.25 12Pin cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 1.69inch Round LCD Display Module with Touch panel, Micro LCD Display, 240280 Resolution, IPS, SPI And I2C Communication, 262K Display Color
- Product Code: EC-27374
- Availability: 4
-
Rs.1223.00
- (Excluding 18% GST)
