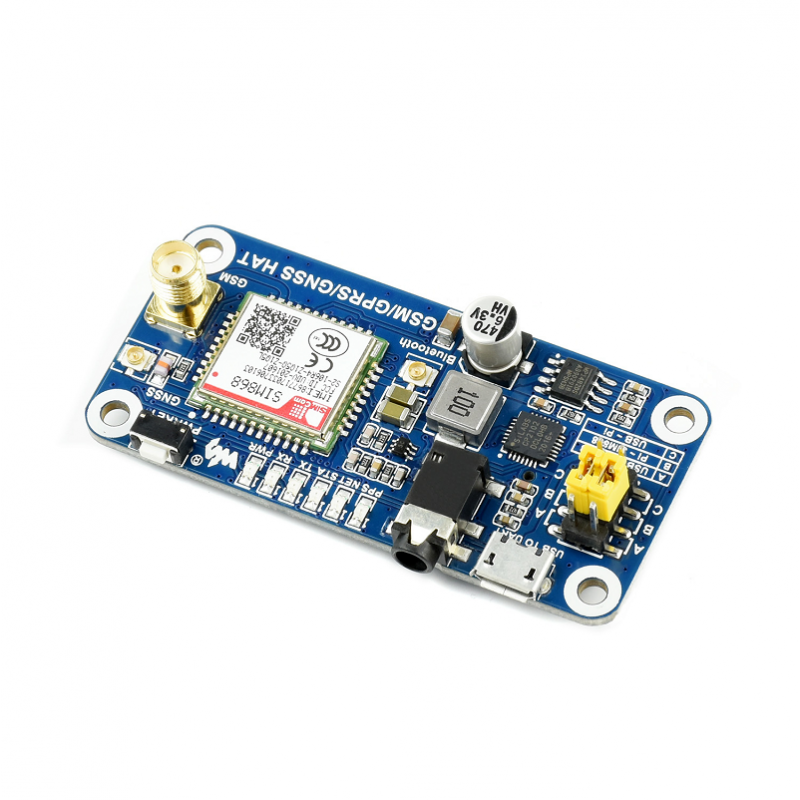

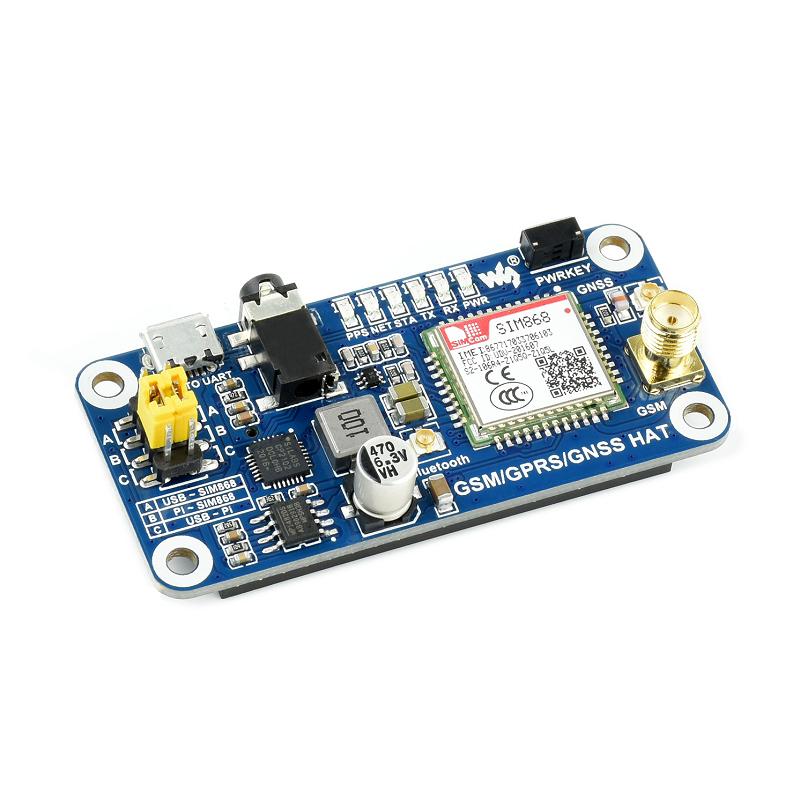

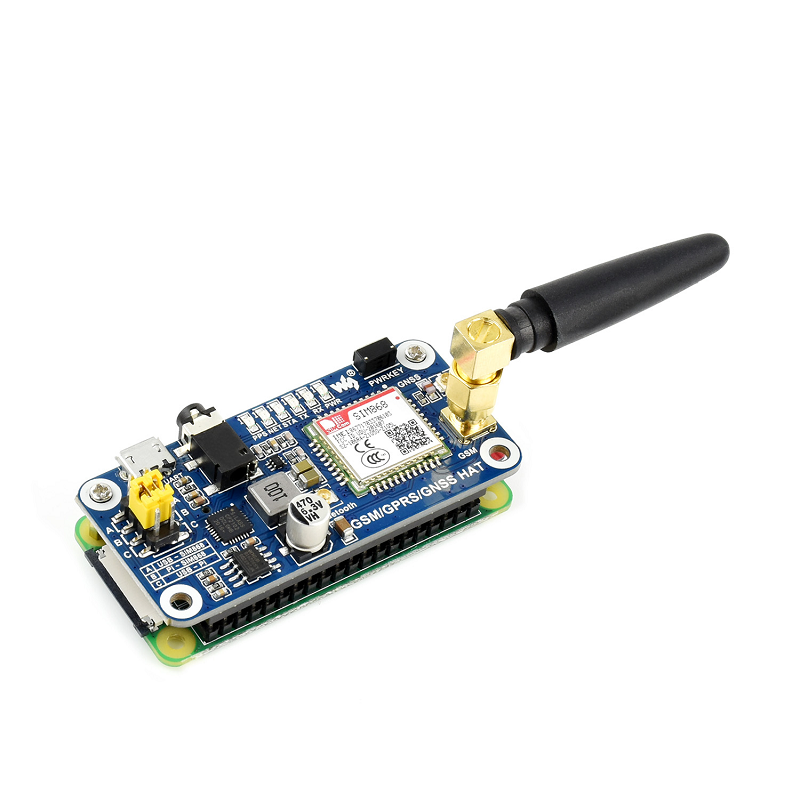

This is a Waveshare GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi.

This is a handy, low power Raspberry Pi HAT that features multi communication functionalities: GSM, GPRS, GNSS, and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.

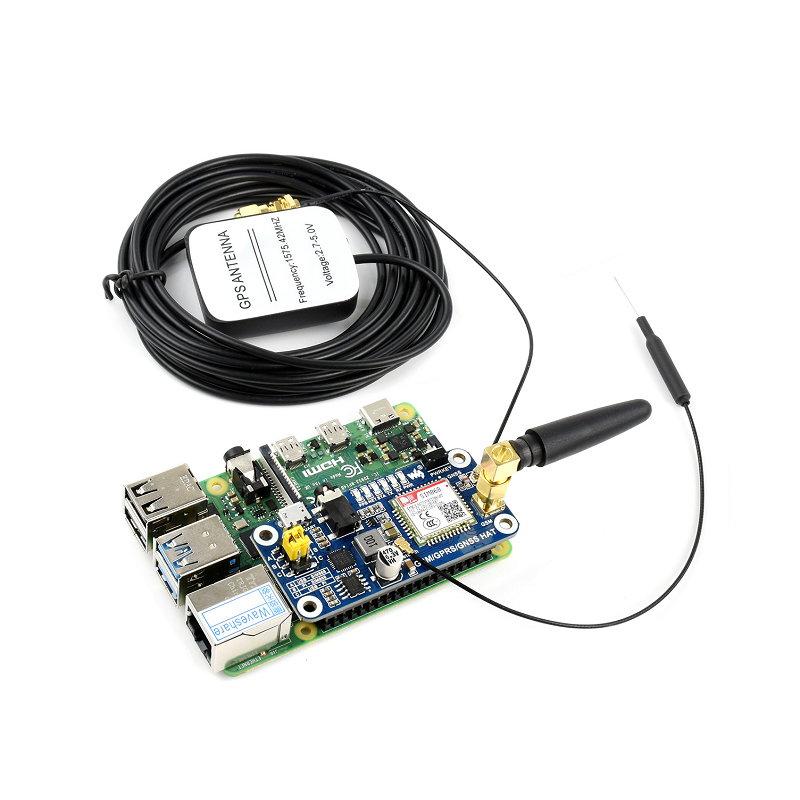

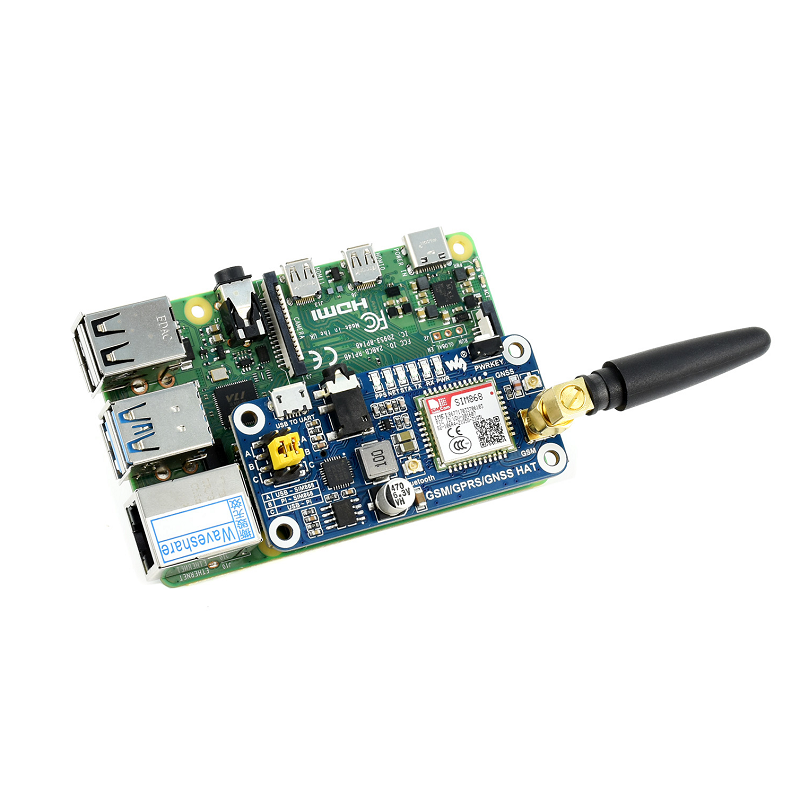

Note: Raspberry Pi Shown in Image Is Not Included With Product You Have to Purchase it Separately.

Features:

General:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
2. Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
3. Support GPS, COMPASS, Glonass, LBS base station positioning, Omni-positioning
4. Bluetooth 3.0, supports data transferring through Bluetooth
5. Onboard USB TO UART Converter CP2102 for UART debugging
6. 6x LEDs for indicating the module working status

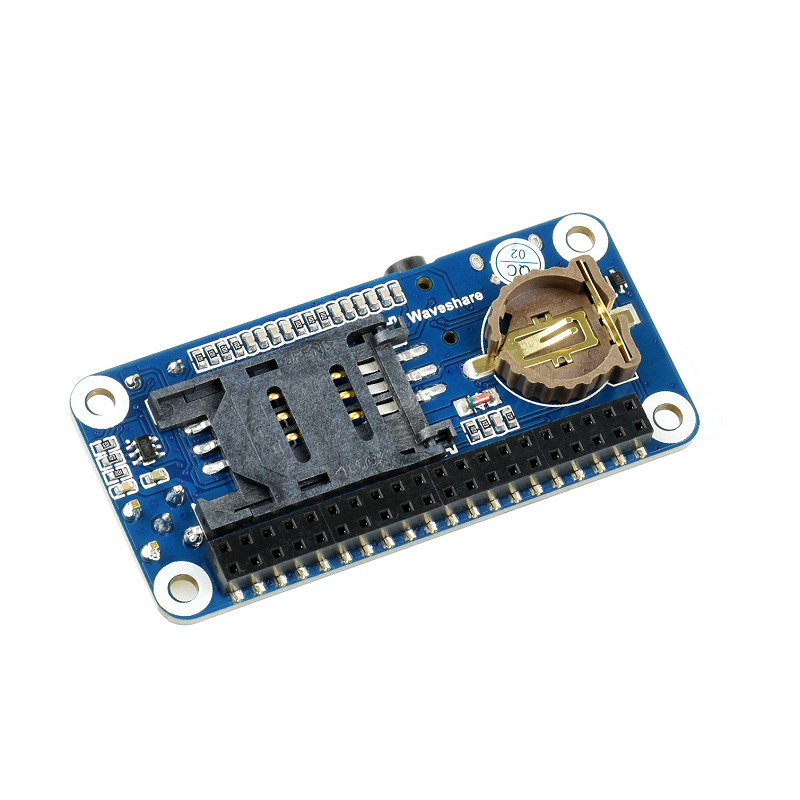

7. SIM card slot for 1.8V/3V SIM card
8. RTC with backup battery holder
9. Baudrate auto-detection (1200bps ~115200bps)
10. Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
11. Supports SIM application toolkit: GSM 11.14 Release 99

GSM/GPRS:

1. Band
   • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
   • Quad-band auto search
   • Compliant to GSM phase 2/2+
2. Emitting power
   • Class 4 (2W @ GSM 850/EGSM 900 MHz)
   • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
3. GPRS connectivity
   • GPRS multi-slot class 12 (default)
   • GPRS multi-slot class 1~12 (configurable)
4. GPRS data feature
   • Downlink speed: max 85.6kbps
   • Uplink speed: max 85.6kbps
   • Coding schemes: CS-1CS-2CS-3CS-4
   • Supports PAP (Password Authentication Protocol) for PPP connection
   • Supports PBCCH
   • Supports USSD
5. SMS
   • Supports: MT/MO/CB/Text/PDU mode
   • SMS storage: SIM card
6. Audio
   • Voice encode/decode mode: Half RateFull Rate Enhanced Full Rate Adaptive mutirate
   • Supports echo cancellation
   • Supports noise reduction

GNSS:

1. Receiver type
   • 33 tracking channels
   • 99 acquisition channels
   • GPSL1C/A code
2. Sensitivity
   • Tracking: -165dBm
   • Cold starts : -148dBm
3. Time-To-First-Fix
   • Cold starts: 28s (Typ.)
   • Hot starts : < 1s
   • Warm starts: 26s
4. Accuracy
   • Horizontal position : <2.5m CEP

Bluetooth:

1. Integrates AT commands
2. Compliant to Bluetooth specification3.0 + EDR
3. Supports SPP, OPP, HFP/HSP, etc.

Useful link:

To do Software setup, please follow this tutorial.

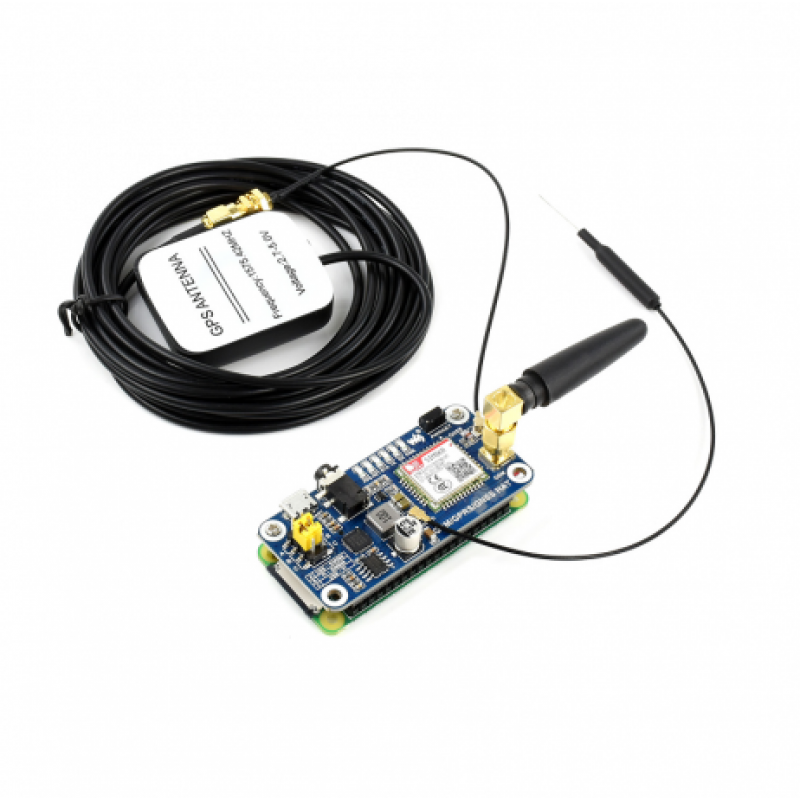

Package Includes:

1 x GSM/GPRS/GNSS HAT

1 x GSM Antenna

1 x GPS External Antenna (B)

1 x Bluetooth Antenna

1 x USB type A plug to micro plug cable

1 x RPi screws pack (2pcs)
