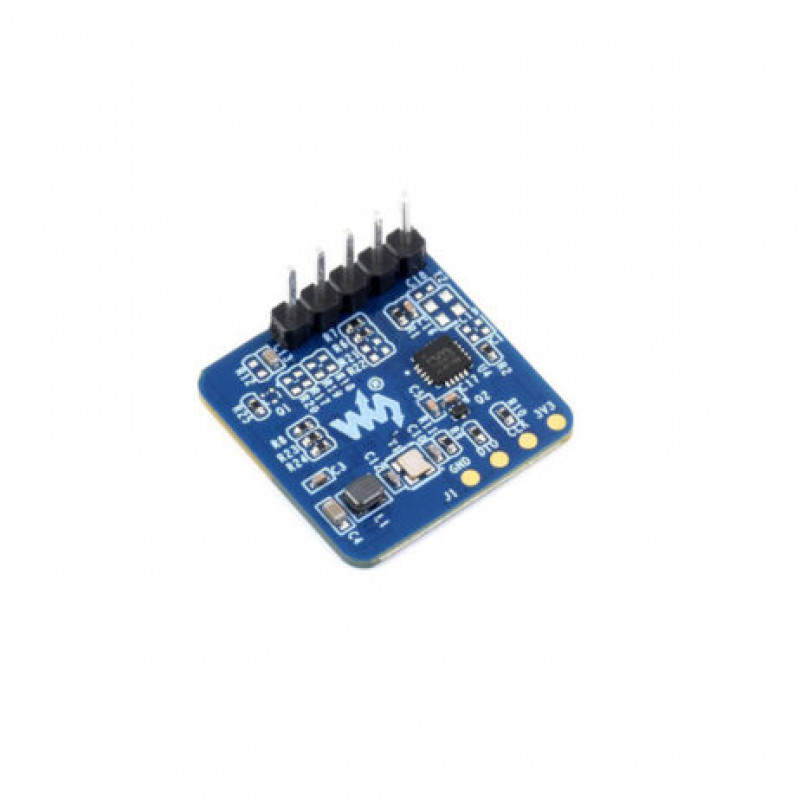

HMMD mmWave Sensor is a human micro-motion sensor that can detect and recognize moving, standing, and stationary human body. It is widely used in various AIoT scenarios, covering smart homes, smart security, smart businesses, and smart lighting, etc.
Features:
- Comes with the Silicon Micro AIoT Millimeter-Wave Sensor SoC S3KM1110.

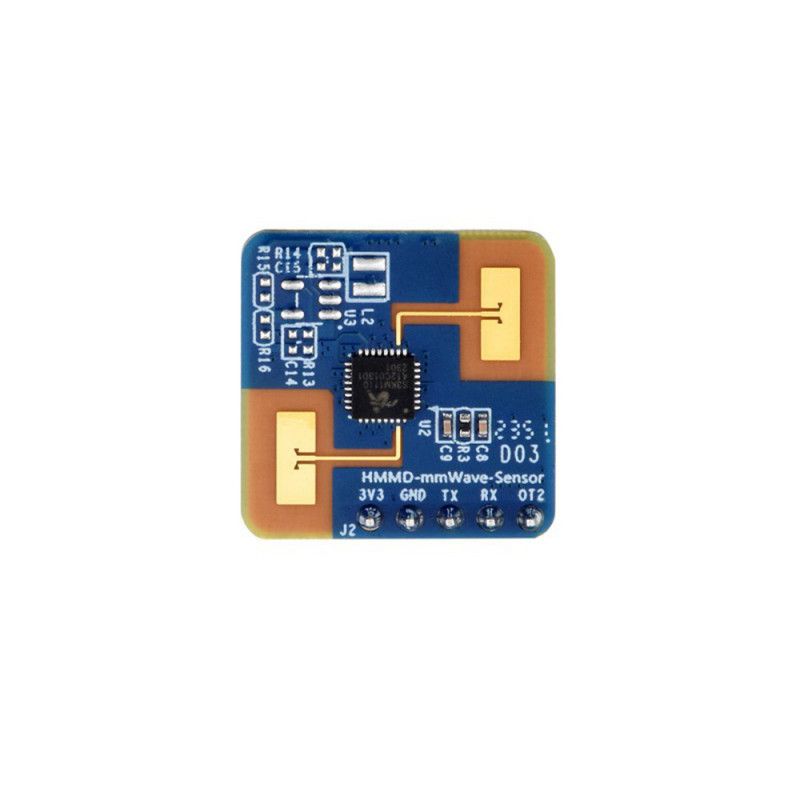

- Onboard high-performance 24GHz one-transmit-one-receive antenna and peripheral circuits.

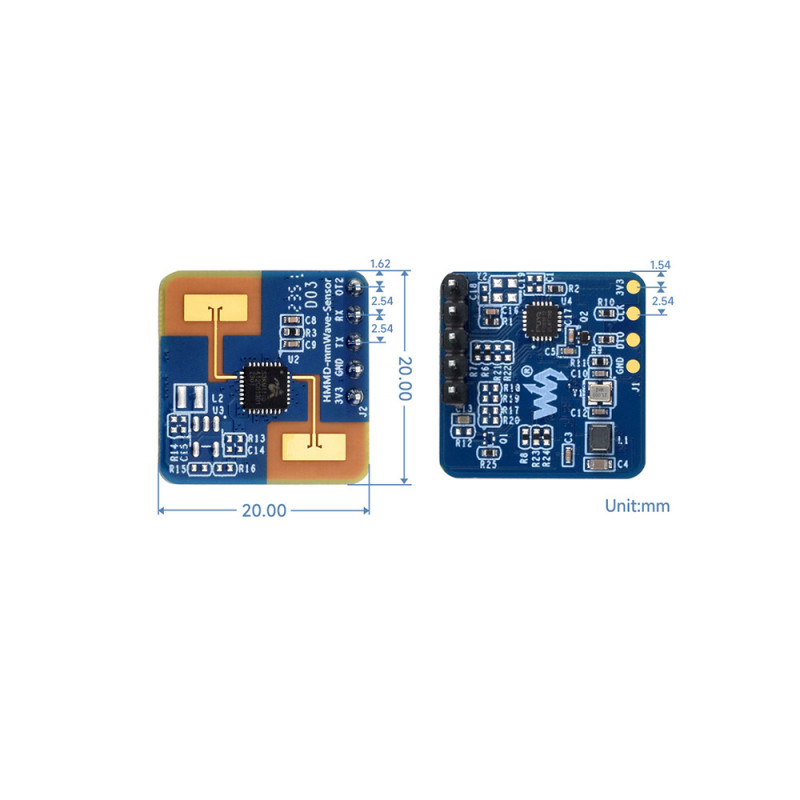

- Mini module size: 20mm x 20mm.
- Pre-loaded with default human body sensing configuration, plug-and-play.
- Longest detection distance for motion human body sensing: 8.5m.

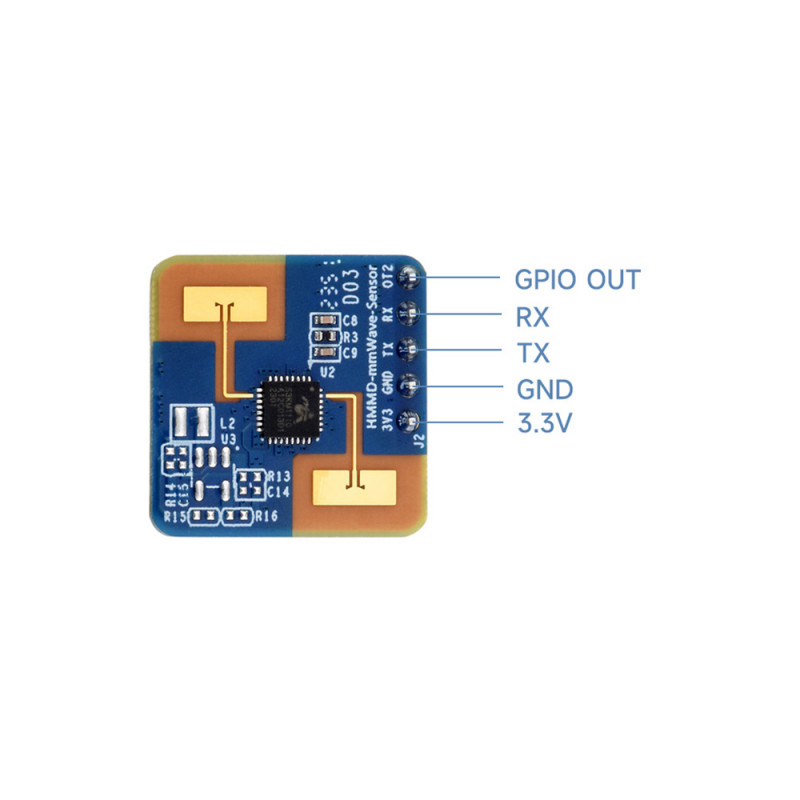

- Driven by the PY32F003F17U6TR microcontroller, with UART pins exposed for easy integration with Arduino/ESP32/JetsonNano and other main control boards.
- Utilizes human micro-motion sensing algorithms, millimeter-wave radar distance measurement technology, and advanced proprietary signal processing technology of the S3KM1110 chip.
- Provide online comprehensive supporting documentation (Raspberry/JetsonNano/Arduino/ESP32/sample demos).
Accurate perception of motion, micro-movement, and stationary human bodies achieved.
Package Includes:
1 x Waveshare Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts FMCW Technology
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts FMCW Technology
- Product Code: EC-28383
- Availability: 24
-
Rs.242.00
- (Excluding 18% GST)
