This battery capacity tester is used to test the voltage, discharge capacity, and discharge energy of a 18650 lithium battery. With a dual working power supply, it has high working efficiency and saves your time. It can display discharge capacity and discharge energy. And it supports a parameter memory function, convenient for checking next time.
Note: Battery is not included with this product
Features:
- Made of high-quality electronic components
- Solid, durable, good conductivity and performance
- Long service life
Package Includes:
1 x XH-M240 Battery Capacity and Discharge Energy Testing Meter
Specifications:
| Model | XH-M240 |
| Display Accuracy | 0.1 |
| Measurement Accuracy | 1mAH |
| Recommended Power Supply | DC 5-12V |
| Standby Current | 5-7mA |
| Discharge Current | 500mA |
| Load Power | 10W, 8Ω |
| Installation Hole | 3mm |
| Color | Green |
| Length (mm) | 110 |
| Width (mm) | 80 |
| Height (mm) | 25 |
| Weight (gm) | 50 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 990.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

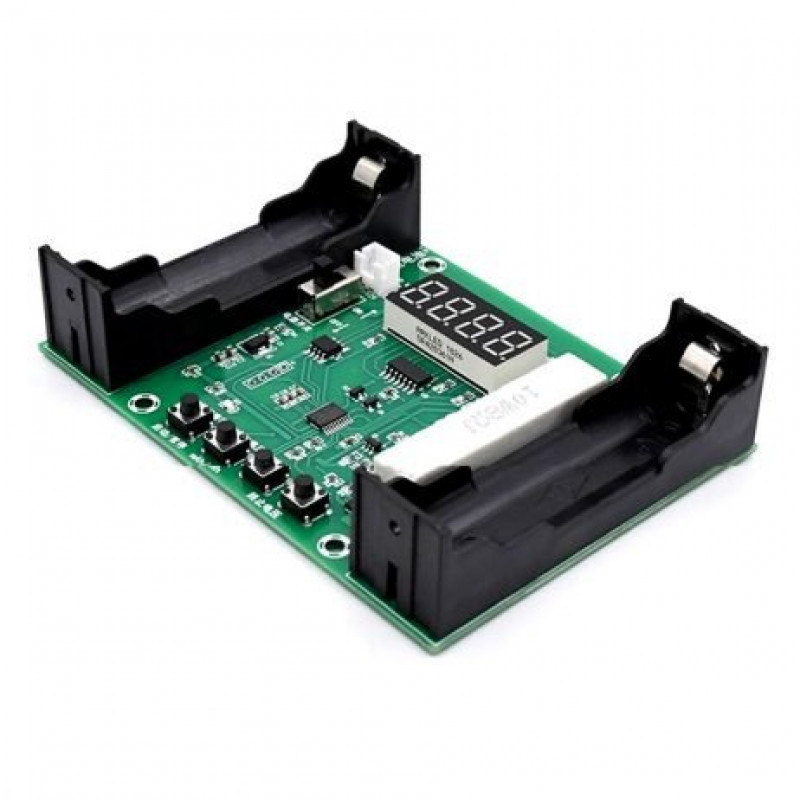

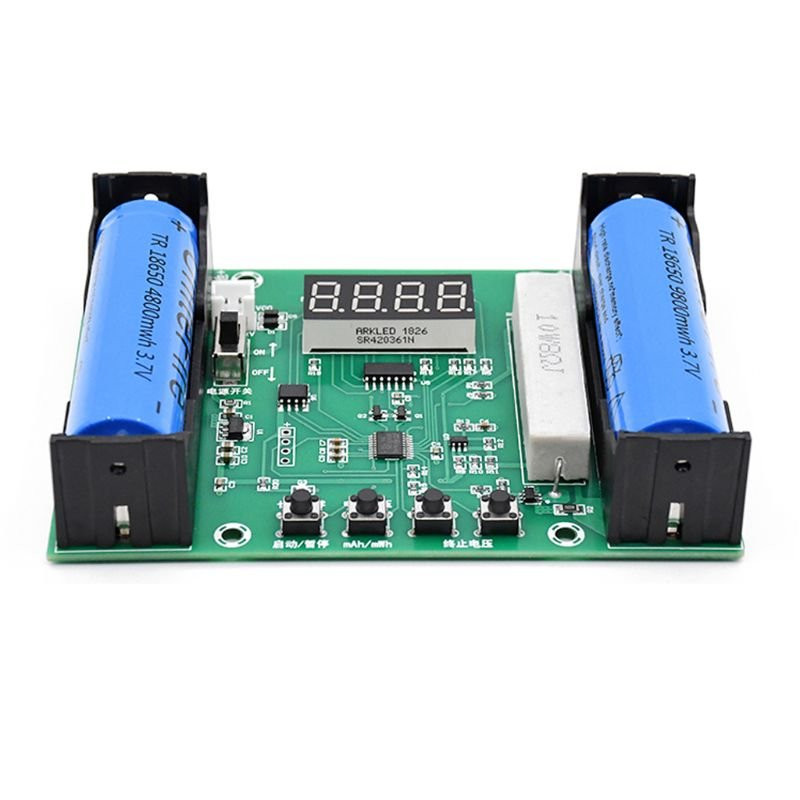

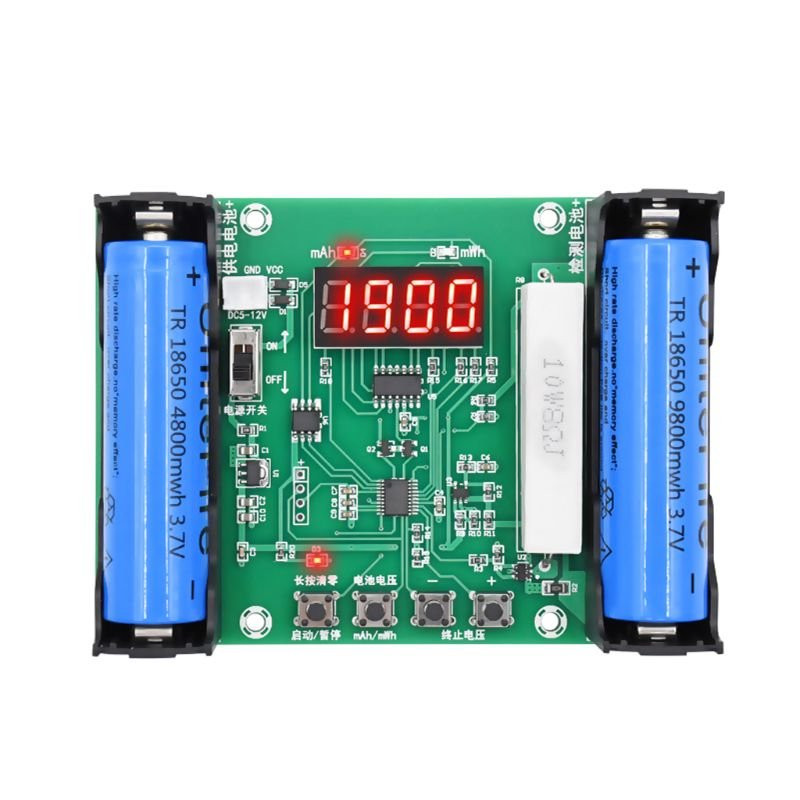

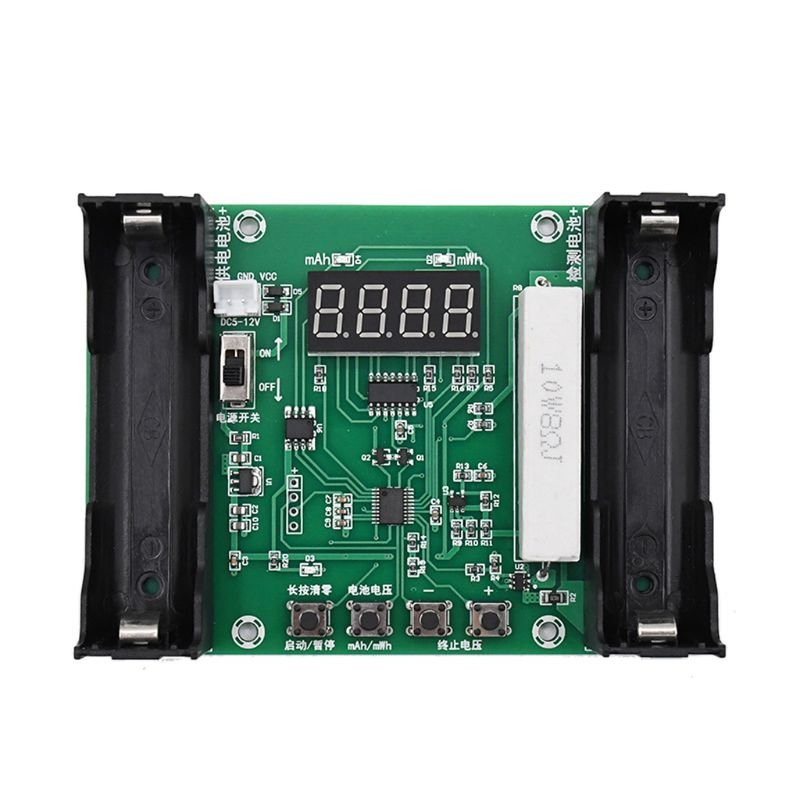

XH-M240 Battery Capacity and Discharge Energy Testing Meter For 18650 Lithium-Ion Battery
- Product Code: EC-7168
- Availability: 3
-
Rs.839.00
- (Excluding 18% GST)
