XL4015 is a switching step-down DC-DC converter chip. The fixed switching frequency is 180KIz, which can reduce the size of external components and facilitate EMC design. The chip has excellent linear adjustment and load adjustment rate, and the output voltage supports arbitrary adjustment between 1.25V and 32V. Reliability modules such as over-current protection, over-temperature protection, and short-circuit protection are integrated into the chip. Other functions: setting memory, reverse connection protection Voltage regulation method: PWM switch voltage regulation.
Product: Actual Product may vary in terms of color.
Features:
- Chip: XL4015E1
- Output Voltage Range: 1.3-36V
- Maximum Current: 5A
- Regulation Type: Switching for efficiency
- Digital Control: Enables precise voltage adjustment
- Versatility: Suitable for various electronic projects
- Stability: Ensures a stable output for reliable performance
Specifications:
- Product name: digital pressure regulator board
- Product Model: XH-M291
- Material: PCB
- Color: Green
- Input voltage: DC8-38V
- Output voltage: DC1. 3-36V
- Maximum current: 5A
- Maximum power: 180w
- Conversion efficiency: 95%
- Switching frequency: fixed 180KHZ
Package Includes:
1 x XH-M291 Digital Voltage Regulator Module DCDC XL4015E1 Switch Type Voltage Regulator Output 1.3-36V Current 5A Max
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

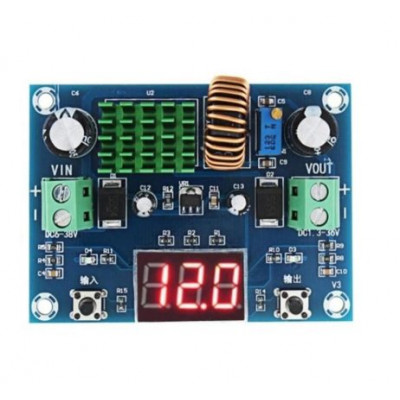

XH-M291 Digital Voltage Regulator Module DCDC XL4015E1 Switch Type Voltage Regulator Output 1.3-36V Current 5A Max
- Product Code: EC-18198
- Availability: 8
-
Rs.351.00
- (Excluding 18% GST)
