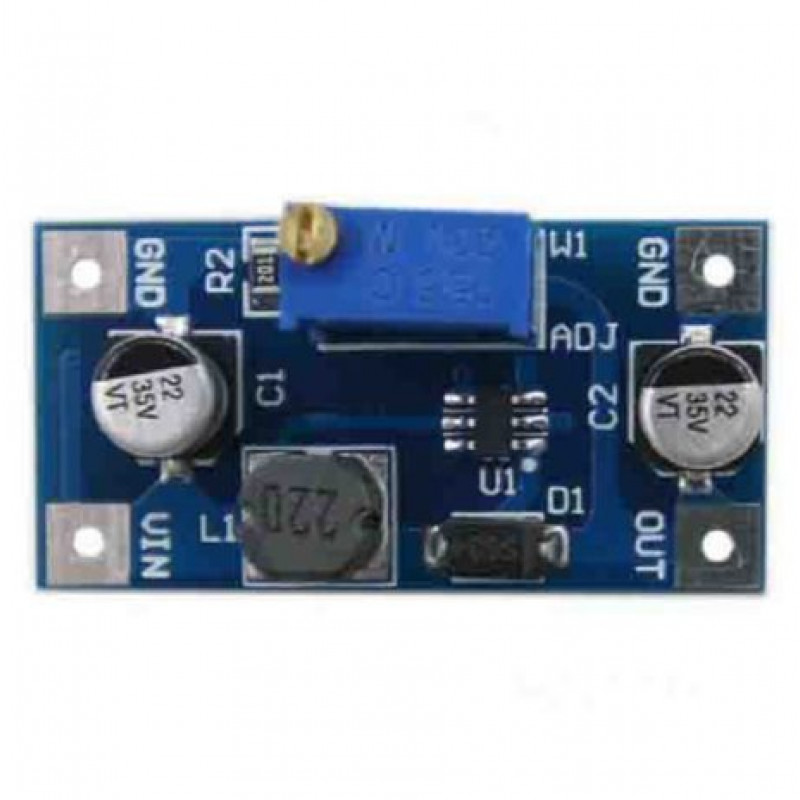

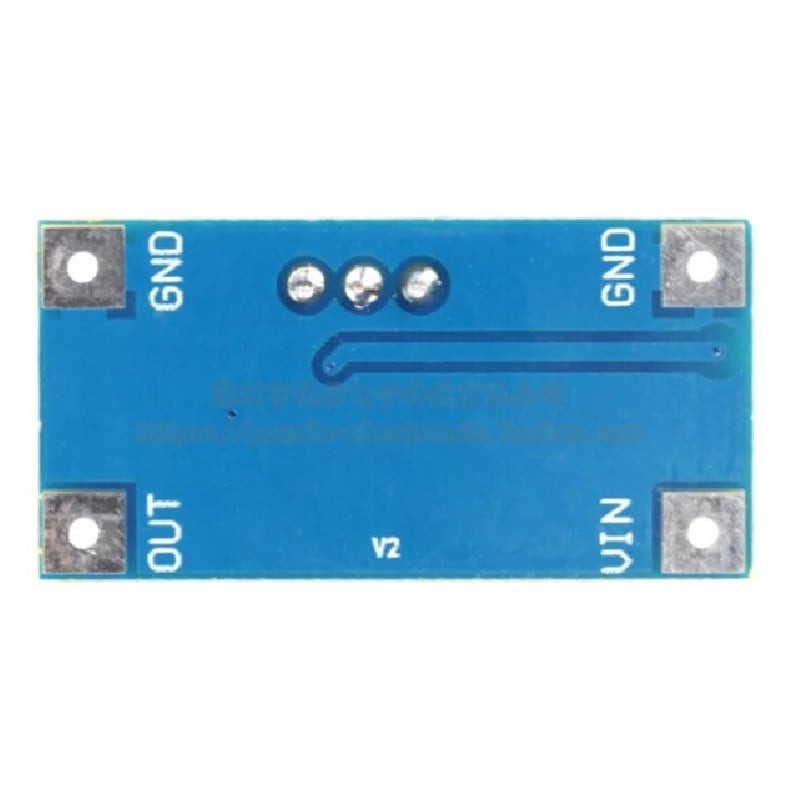

The XH-M415 Micro Boost Module, powered by the SX1308 Boost DC-DC converter, accepts input voltages from 2-24V and delivers an output range of 3-28V with a peak current of 2A. Ideal for voltage-boosting applications, it provides efficient and reliable performance in a compact form factor.
Note: Please allow a 1-3mm measuring deviation due to manual measurement.
Actual Products may vary in terms of color.
Features:
- XH-M415 Micro Boost Module
- SX1308 Boost DC-DC Converter
- Input: 2-24V, Output: 3-28V
- Peak Current: 2A
- Efficient Voltage Boosting
Specifications:
- Product Name: DC Boost Module
- Model: XH-M415
- Main function: synchronous boost module
- Input voltage: DC2-24V
- Output voltage: DC3-28V
- Output current: peak 2A
- Length: 32mm
- Width: 17mm
- Height: 12mm
Package Includes:
1 x XH-M415 Micro Boost Module SX1308 Boost DC-DC Input 2-24 Output 3-28 Peak 2A
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XH-M415 Micro Boost Module SX1308 Boost DC-DC Input 2-24 Output 3-28 Peak 2A
- Product Code: EC-18230
- Availability: 36
-
Rs.52.00
- (Excluding 18% GST)
