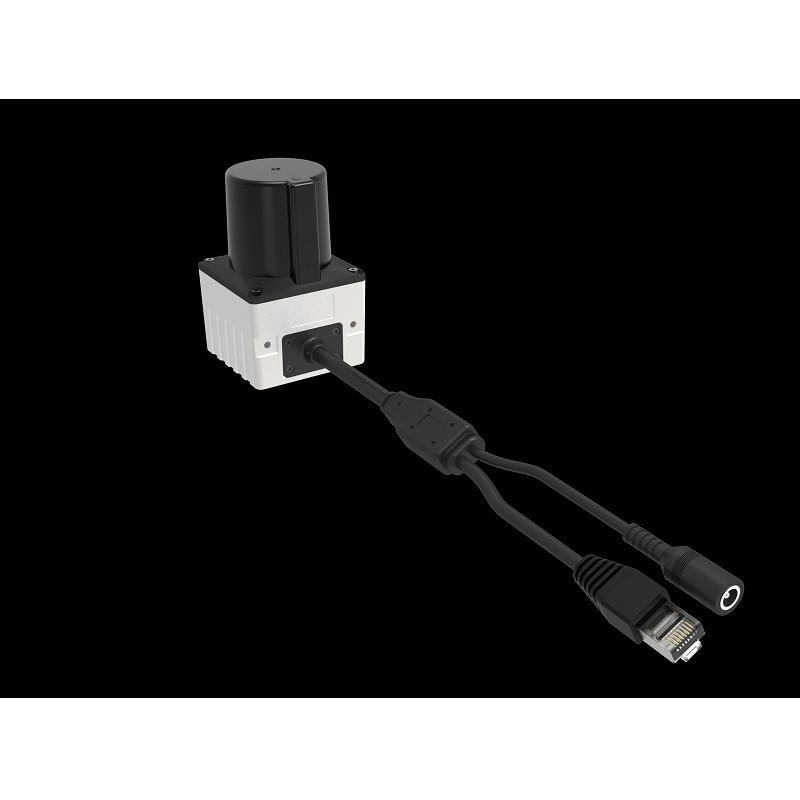

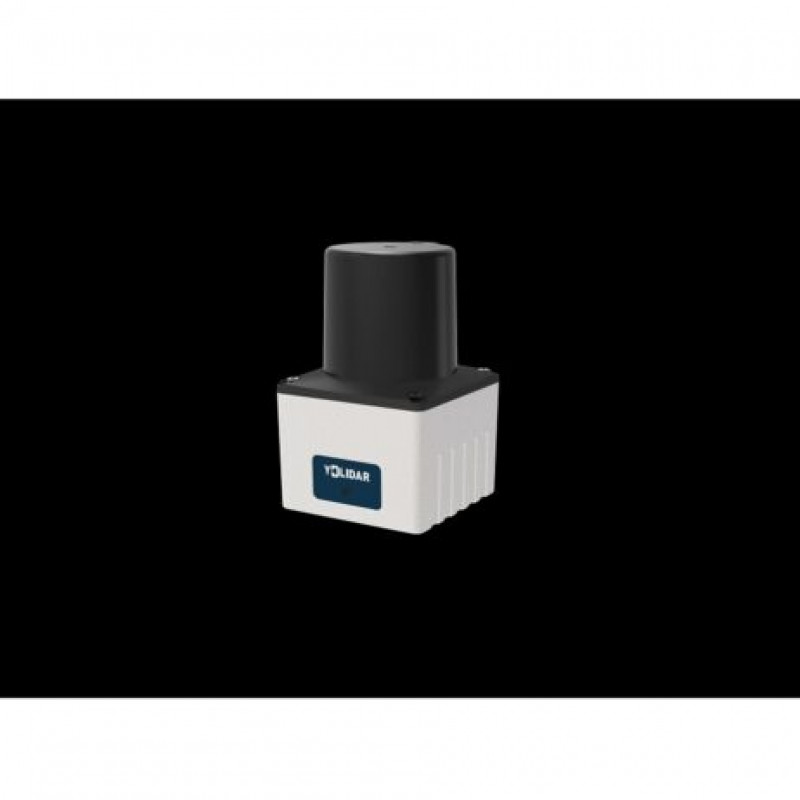

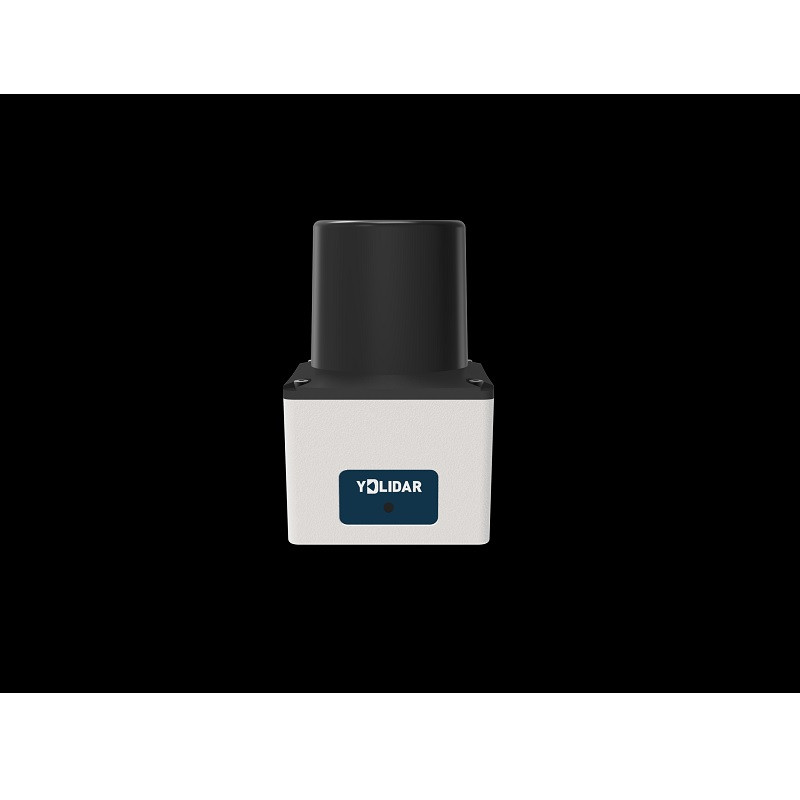

YDLIDAR TEA is a series of 2D LiDAR (hereinafter referred to as TEA). Based on the ToF principle, TEA is based on the single-line scanning design and can output 30k point cloud data per second. It adopts 905nm infrared excitation light, with the self-developed signal processing algorithm, to meet the requirement of outdoor application scenarios. TEA also adopts an industrial interface design to transmit point cloud data through a network protocol, and the dustproof and waterproof of the whole device reaches the IP65 level. The TEA structure design is compact, easy to integrate, and provides a complete integrated development interface, widely used in robot navigation and obstacle avoidance, environmental scanning and mapping, industrial AGV, assisted driving, and other fields.

Applications:

1. Robot navigation and obstacle avoidance
2. Industrial automation
3. Regional security
4. Smart Transportation
5. Environmental scanning and 3D reconstruction
6. Digital multimedia interaction
7. Robot ROS teaching and research

Features:

1. High-speed range and frequency range of 30kHz
2. Ranging repeat of high precision, good consistency
3. 300 degrees horizontal view
4. Maximum 30Hz scanning frequency can be configured
5. Strong resistance to ambient light interference
6. IP65 protection level of dustproof and waterproof
7. 100M adaptive network interface for data transmission

Package Includes:

1 x YDLIDAR TEA
