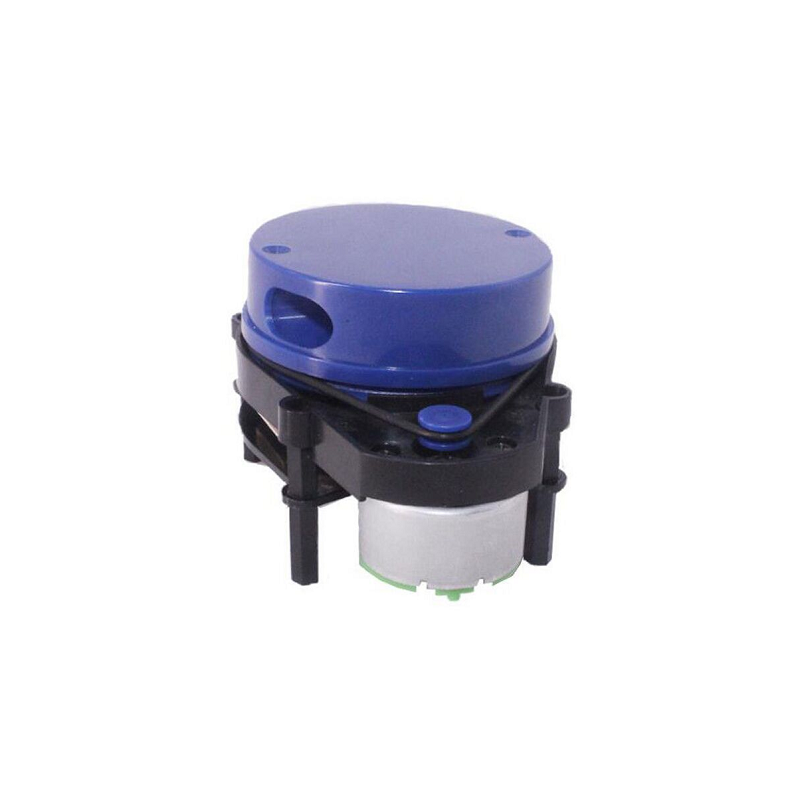

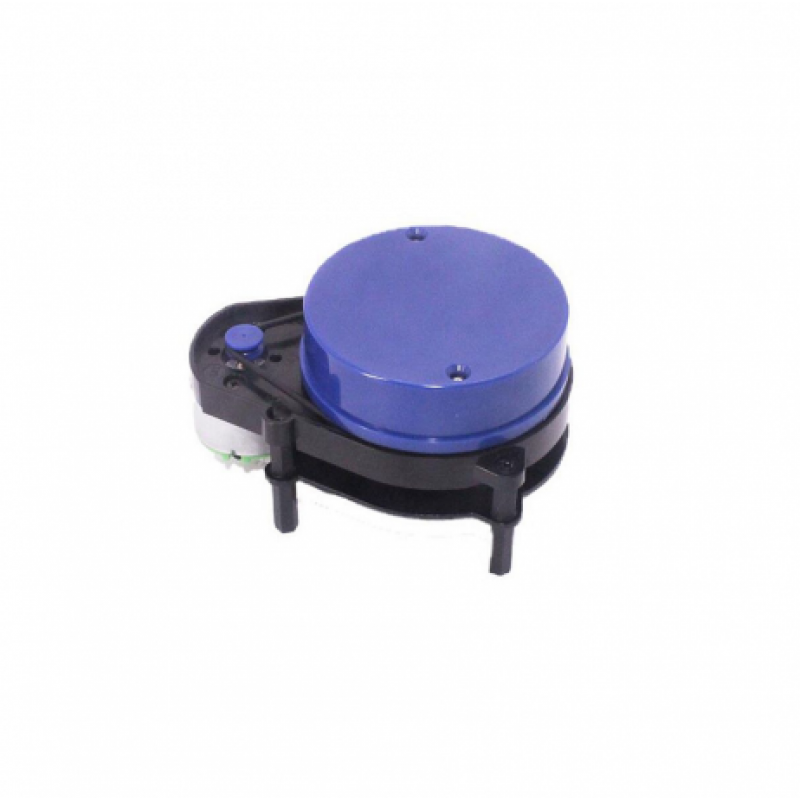

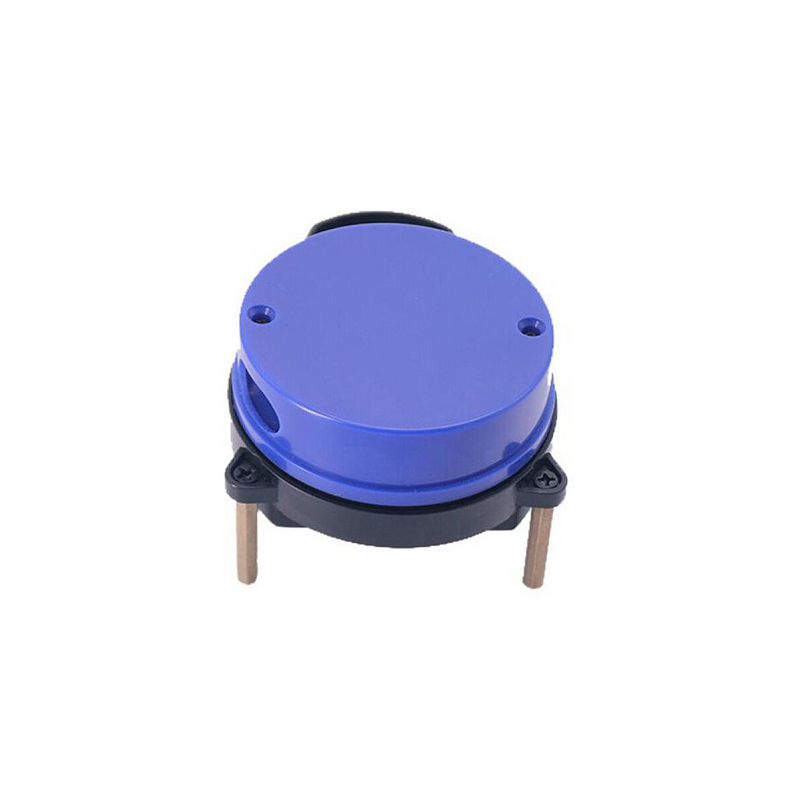

YDLIDAR X4 is a 360-degree two-dimensional rangefinder developed by the YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.
Applications:
- Robot navigation and obstacle avoidance
- Robot ROS teaching and research
- Regional security
- Environmental scanning and 3D reconstruction
- Commercial robot /Robot vacuum cleaner
Features:
- 360-degree omnidirectional scanning ranging distance measurement
- Small distance error, stable performance, and high accuracy
- 10m Ranging distance
- Strong resistance to ambient light interference
- Low power consumption, small size, and long life
- Laser power meets Class I laser safety standards
- Adjustable motor speed frequency differ from 6Hz~12Hz
- Ranging frequency up to 5K Hz

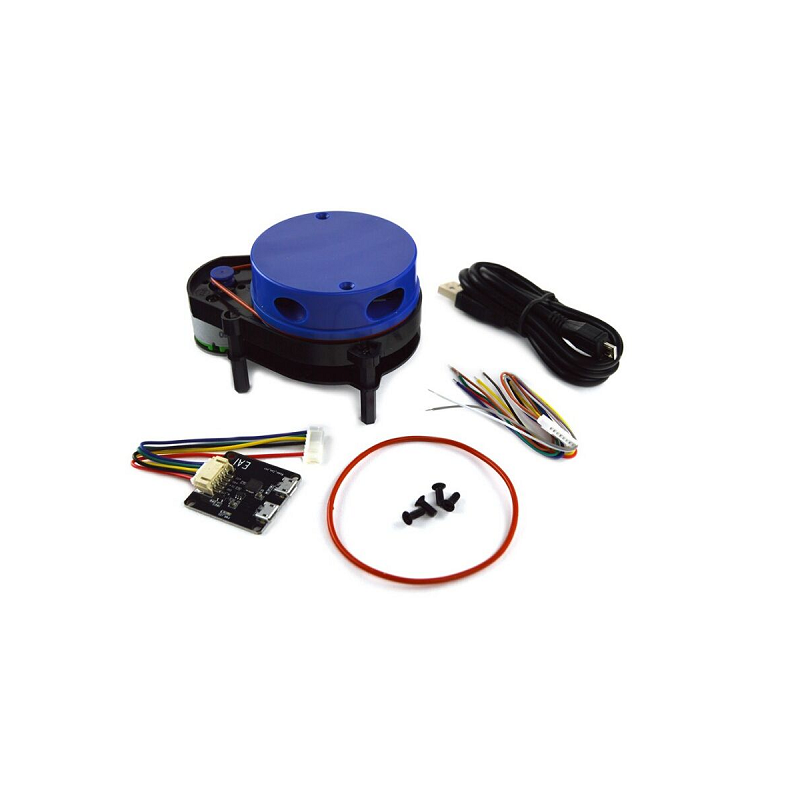

Package Includes:
1 x YDLIDAR X4 Range Finder
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 12978.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
YDLIDAR X4 360 Degree ROS Scanner for Navigation, Collision Avoidance 10M
- Product Code: EC-17957
- Availability: 2
-
Rs.9679.00
- (Excluding 18% GST)
